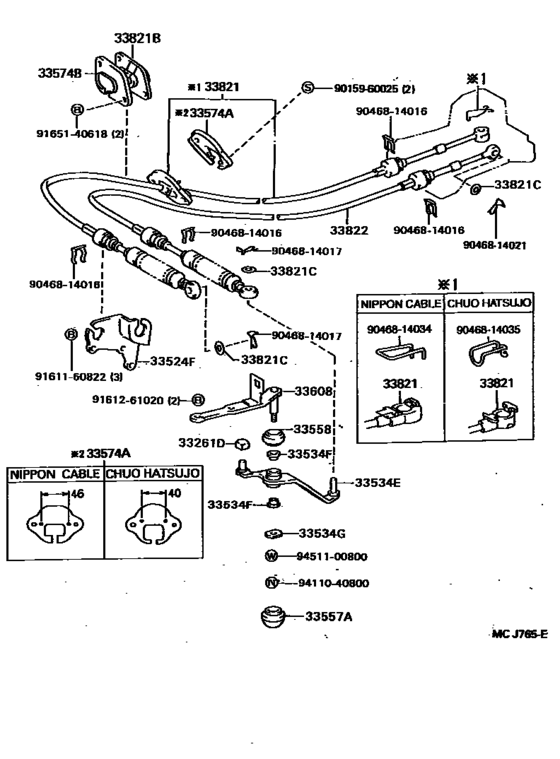

Shift Lever & Retainer ([12.1990 - ] (9012- )MTM) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33261D
|
33261D
33557-33010 Bush (For Shift & Select Lever)[08.1994 - 01.1996] EP81,NP80..5F |
33557-33010 |
from US $7.20 |
||
|
33261D
|
33261D
90389-10009 Bush (For Shift & Select Lever)[12.1989 - 06.1991] EP8#,NP80..MTM |
90389-10009 |
from US $9.92 |
||
|
33524F
|
33524F
33524-10030 Bracket, Control Lever Housing Support (For Floor Shift)[12.1989 - 08.1990] EP8#..MTM |
33524-10030 |
US $13.40 |
||
|
33524F
|
33524F
33524-16040
Bracket, Control Lever Housing Support (For Floor Shift)
[08.1990 - 06.1991] EP8#,NP80..MTM |
33524-16040 |
— | ||
|
33534E
|
33534E
33534-10030 Crank, Selecting Bell, No.2[12.1989 - 08.1990] EP8#..MTM |
33534-10030 |
US $43.68 |
||
|
33534E
|
33534E
33534-16050 Crank, Selecting Bell, No.2[08.1990 - 06.1991] EP8#,NP80..MTM |
33534-16050 |
US $41.20 |
||
|
33534E
|
33534E
33534-16051
Crank, Selecting Bell, No.2
[08.1994 - 01.1996] EP81,NP80..5F |
33534-16051 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[12.1989 - 06.1991] EP8#,NP80..MTM |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[12.1989 - 06.1991] EP8#,NP80..MTM |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[12.1989 - 06.1991] EP8#,NP80..MTM |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[12.1989 - 06.1991] EP8#,NP80..MTM |
33558-10030 |
US $3.68 |
||
|
33574A
|
33574A
33574-10010 Retainer, Shift Cable Grommet, No.1[12.1989 - 12.1990] EP8#,NP80 |
33574-10010 |
US $9.03 |
||
|
33574A
|
33574A
33574-10020
Retainer, Shift Cable Grommet, No.1
[12.1990 - 01.1996] EP8#,NP80..MTM NIPPON CABLE |
33574-10020 |
— | ||
|
33574B
|
33574B
33574-10030
Retainer, Shift Cable Grommet, No.2
[12.1989 - 08.1990] EP8#,NP80 |
33574-10030 |
— | ||
|
33608
|
33608
33608-10020 Support Sub-Assy, Selecting Bellcrank[12.1989 - 08.1990] EP8#..MTM |
33608-10020 |
US $11.50 |
||
|
33608
|
33608
33608-10031 Support Sub-Assy, Selecting Bellcrank[08.1990 - 06.1991] EP8#,NP80..MTM |
33608-10031 |
US $11.36 |
||
|
33608
|
33608
33608-10032
Support Sub-Assy, Selecting Bellcrank
[08.1994 - 01.1996] EP81,NP80..5F |
33608-10032 |
— | ||
|
33821
|
33821
33821-10170
Cable Transmission Control Shift (For Floor Shift)
[12.1989 - 08.1990] EP8#..MTM |
33821-10170 |
— | ||
| replacements | |||||
|
33821
|
33821
33821-16151
Cable Transmission Control Shift (For Floor Shift)
[12.1989 - 08.1990] EP8#..MTM |
33821-16151 |
— | ||
|
33821
|
33821
90468-14035 New Genuine Part[12.1989 - 08.1990] EP8#..MTM |
90468-14035 |
US $1.40 |
||
|
33821
|
33821
33821-10190 Cable Transmission Control Shift (For Floor Shift)[08.1990 - 12.1990] EP8#,NP80..MTM |
33821-10190 |
US $179.09 |
||
| replacements | |||||
|
33821
|
33821
33821-16151
Cable Transmission Control Shift (For Floor Shift)
[08.1990 - 12.1990] EP8#,NP80..MTM |
33821-16151 |
— | ||
|
33821
|
33821
90468-14035 New Genuine Part[08.1990 - 12.1990] EP8#,NP80..MTM |
90468-14035 |
US $1.40 |
||
|
33821
|
33821
33821-16140
Cable Transmission Control Shift (For Floor Shift)
[12.1990 - 01.1992] EP8#,NP80..MTM NIPPON CABLE |
33821-16140 |
— | ||
| replacements | |||||
|
33821
|
33821
33821-16141
Cable Transmission Control Shift (For Floor Shift)
[12.1990 - 01.1992] EP8#,NP80..MTM NIPPON CABLE |
33821-16141 |
— | ||
|
33821
|
33821
90468-14034 New Genuine Part[12.1990 - 01.1992] EP8#,NP80..MTM NIPPON CABLE |
90468-14034 |
US $2.62 |
||
|
33821
|
33821
33821-16141
Cable Transmission Control Shift (For Floor Shift)
[02.1995 - 01.1996] EP81,NP80..5F NIPPON CABLE |
33821-16141 |
— | ||
|
33821
|
33821
33821-16150
Cable Transmission Control Shift (For Floor Shift)
[12.1990 - 02.1995] EP8#,NP80..MTM CHUO HATSUJO |
33821-16150 |
— | ||
| replacements | |||||
|
33821
|
33821
33821-16151
Cable Transmission Control Shift (For Floor Shift)
[12.1990 - 02.1995] EP8#,NP80..MTM CHUO HATSUJO |
33821-16151 |
— | ||
|
33821
|
33821
90468-14035 New Genuine Part[12.1990 - 02.1995] EP8#,NP80..MTM CHUO HATSUJO |
90468-14035 |
US $1.40 |
||
|
33821
|
33821
33821-16151
Cable Transmission Control Shift (For Floor Shift)
[02.1995 - 01.1996] EP81,NP80..5F CHUO HATSUJO |
33821-16151 |
— | ||
|
33821B
|
33821B
90480-01291
Grommet, No.2 (For Transmission Control Cable)
[12.1989 - 08.1990] EP8#,NP80..MTM |
90480-01291 |
— | ||
|
33821C
|
33821C
90201-08023 Washer, Plate (For Transfer Control Cable)[12.1989 - 08.1990] EP8#,NP80..MTM SHIFT LEVER SIDE |
90201-08023 |
US $0.73 |
||
|
33821C
|
33821C
90201-08267 Washer, Plate (For Transfer Control Cable)[12.1989 - 08.1990] EP8#,NP80..MTM OD=28,TRANSAXLE SIDE |
90201-08267 |
from US $0.92 |
||
|
33822
|
33822
33822-10050 Cable Transmission Control Select (For Floor Shift)[12.1989 - 08.1990] EP8#..MTM |
33822-10050 |
US $179.09 |
||
| replacement | |||||
|
33822
|
33822
33822-16050
Cable Transmission Control Select (For Floor Shift)
[12.1989 - 08.1990] EP8#..MTM |
33822-16050 |
— | ||
|
33822
|
33822
33822-16050
Cable Transmission Control Select (For Floor Shift)
[12.1990 - 01.1996] EP8#,NP80..MTM |
33822-16050 |
— | ||
|
33822
|
33822
33822-18021 Cable Transmission Control Select (For Floor Shift)[08.1990 - 12.1990] EP8#,NP80..MTM |
33822-18021 |
US $206.75 |
||
| replacement | |||||
|
33822
|
33822
33822-16050
Cable Transmission Control Select (For Floor Shift)
[08.1990 - 12.1990] EP8#,NP80..MTM |
33822-16050 |
— | ||
|
9015960025
|
9015960025
90159-60025 SCREW W-WASHER |
90159-60025 |
US $3.20 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.90 |
||
|
9046814021
|
9046814021
90468-14021 New Genuine Part |
90468-14021 |
US $1.60 |
||
|
9046814034
|
9046814034
90468-14034 New Genuine Part |
90468-14034 |
US $2.62 |
||
|
9046814035
|
9046814035
90468-14035 New Genuine Part |
90468-14035 |
US $1.40 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9161261020
|
9161261020
91612-61020
Bolt (For Transfer Case)Cover No.2
|
91612-61020 |
— | ||
| replacement | |||||
|
9161261020
|
9161261020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165140618
|
9165140618
91651-40618 New Genuine Part |
91651-40618 |
US $2.80 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.03 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
