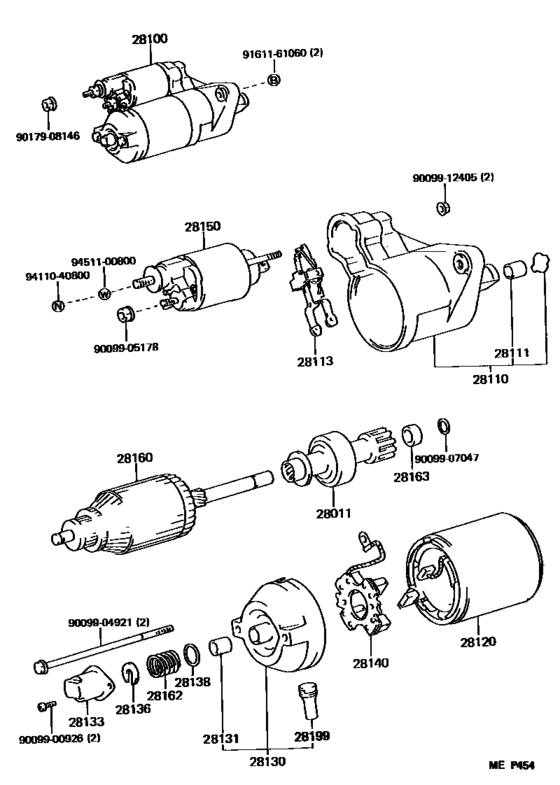

Starter ([12.1989 - 01.1996] 12V 0.8KW (8912-9601)1E,2E#) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-10030 Clutch Sub-Assy, Starter[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28011-10030 |
US $64.50 |
||
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28011-26042 |
— | ||
|
28100
|
28100
28100-10030 Starter Assy[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM 12V 0.8KW |
28100-10030 |
US $931.84 |
||
| replacement | |||||
|
28100
|
28100
28100-11010 Starter Assy[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM 12V 0.8KW |
28100-11010 |
US $898.35 |
||
|
28100
|
28100
28100-10040 Starter Assy[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM 12V 1.0KW,W(50D20L BATTERY) |
28100-10040 |
US $1,275.46 |
||
|
28100
|
28100
28100-11060 Starter Assy[05.1994 - 01.1996] 2EE..EP81..5F 12V 0.8KW |
28100-11060 |
US $899.81 |
||
| replacement | |||||
|
28100
|
28100
28100-11160 Starter Assy[05.1994 - 01.1996] 2EE..EP81..5F 12V 0.8KW |
28100-11160 |
US $1,090.54 |
||
|
28100
|
28100
28100-11100 Starter Assy[05.1994 - 01.1996] 2EE..EP81..3FC 12V 1.0KW; 2EE..EP81..5F 12V 1.0KW,W(50D20L BATTERY) |
28100-11100 |
US $1,278.37 |
||
|
28110
|
28110
28110-10030 Housing Assy, Starter Drive[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28110-10030 |
US $68.14 |
||
|
28110
|
28110
28110-10040 Housing Assy, Starter Drive[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28110-10040 |
US $51.11 |
||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[12.1989 - 01.1992] 1E,2E..EP8#;2EE..EP81..MTM |
28111-51011 |
— | ||
|
28111
|
28111
90099-10200
Bush(For Starter Housing)
[01.1992 - 01.1996] 1E,2E#..EP8#..MTM |
90099-10200 |
— | ||
|
28113
|
28113
28113-15011 Lever, Starter Pinion Drive[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28113-15011 |
US $16.45 |
||
|
28120
|
28120
28120-15010
Yoke Assy, Starter
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28120-15010 |
— | ||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28120-26071 |
— | ||
|
28130
|
28130
28130-10030
Frame Assy, Starter Commutator End
[12.1989 - 01.1992] 2E..EP81;2EE..EP81..MTM; 1E..EP80 W(50D20L BATTERY) |
28130-10030 |
— | ||
| replacement | |||||
|
28130
|
28130
28130-10050
Frame Assy, Starter Commutator End
[12.1989 - 01.1992] 2E..EP81;2EE..EP81..MTM; 1E..EP80 W(50D20L BATTERY) |
28130-10050 |
— | ||
|
28130
|
28130
28130-10040
Frame Assy, Starter Commutator End
[01.1992 - 01.1996] 2EE..EP81..3FC; 2E#..EP81..5F W(50D20L BATTERY) |
28130-10040 |
— | ||
|
28130
|
28130
28130-10050
Frame Assy, Starter Commutator End
[01.1992 - 01.1996] 2E#..EP81..5F |
28130-10050 |
— | ||
|
28130
|
28130
28130-34060 Frame Assy, Starter Commutator End[12.1989 - 01.1992] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28130-34060 |
US $19.09 |
||
|
28131
|
28131
90099-10134
Bearing, Starter Flange
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
90099-10134 |
— | ||
|
28133
|
28133
28132-15010
Cover, Starter Bearing(For Drive Housing)
[12.1989 - 01.1995] 1E,2E..EP8#;2EE..EP81..MTM |
28132-15010 |
— | ||
| replacement | |||||
|
28133
|
28133
28132-15011
Cover, Bearing(For End Frame)
[12.1989 - 01.1995] 1E,2E..EP8#;2EE..EP81..MTM |
28132-15011 |
— | ||
|
28133
|
28133
28132-15011
Cover, Bearing(For End Frame)
[01.1995 - 01.1996] 2EE..EP81..5F |
28132-15011 |
— | ||
|
28136
|
28136
28136-15010
Plate, Starter Lock
[12.1989 - 01.1996] 1E,2E..EP8#;2EE..EP81..MTM |
28136-15010 |
— | ||
|
28138
|
28138
28138-15010
Rubber(For Starter Bearing Cover)
[12.1989 - 01.1996] 1E,2E..EP8#;2EE..EP81..MTM |
28138-15010 |
— | ||
|
28140
|
28140
28140-15010
Holder Assy, Starter Brush
[12.1989 - 01.1996] 1E,2E..EP8#;2EE..EP81..MTM |
28140-15010 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28140-26070 |
US $16.77 |
||
|
28150
|
28150
28150-11060 Switch Assy, Magnet Starter[05.1994 - 01.1996] 2EE..EP81..5F |
28150-11060 |
US $125.22 |
||
|
28150
|
28150
28150-11100 Switch Assy, Magnet Starter[05.1994 - 01.1996] 2EE..EP81..3FC; 2EE..EP81..5F W(50D20L BATTERY) |
28150-11100 |
US $126.67 |
||
|
28150
|
28150
28150-34080 Switch Assy, Magnet Starter[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28150-34080 |
US $372.74 |
||
|
28150
|
28150
28150-37010 Switch Assy, Magnet Starter[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM |
28150-37010 |
US $141.23 |
||
| replacement | |||||
|
28150
|
28150
28150-37011
Switch Assy, Magnet Starter
[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM |
28150-37011 |
— | ||
|
28160
|
28160
28160-15010 Armature Assy, Starter[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28160-15010 |
US $230.05 |
||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28160-26071 |
— | ||
|
28162
|
28162
28162-15010
Spring, Starter Brake
[12.1989 - 01.1996] 1E,2E..EP8#;2EE..EP81..MTM |
28162-15010 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28163-40011 |
— | ||
|
28199
|
28199
28199-10030
Cover, Starter
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28199-10030 |
— | ||
|
9009900926
|
9009900926
90099-00926
New Genuine Part
|
90099-00926 |
— | ||
|
9009904921
|
9009904921
90099-04921
New Genuine Part
|
90099-04921 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907047
|
9009907047
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
|
90099-07047 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161161060
|
9161161060
91611-61060
Bolt(for Clutch Release Cylinder Setting)
|
91611-61060 |
— | ||
| replacement | |||||
|
9161161060
|
9161161060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
