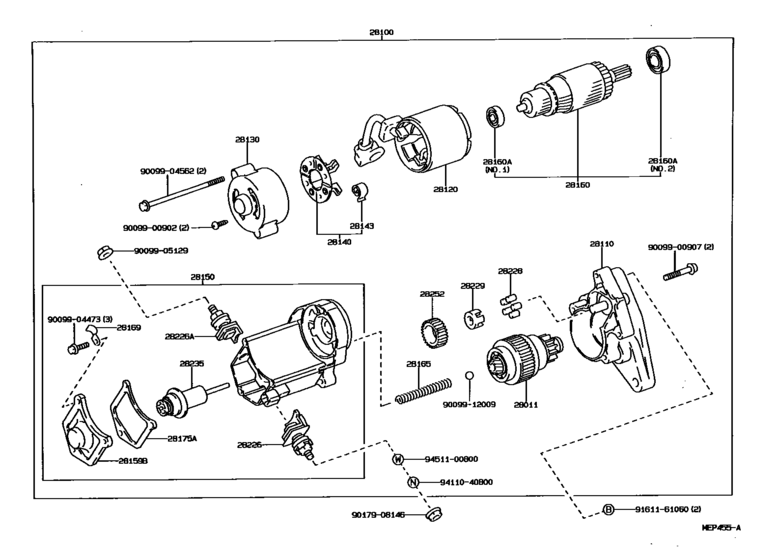

Starter ([12.1989 - 01.1996] 12V 1.0KW (8912-9601)2E#) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-10030 Clutch Sub-Assy, Starter[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28011-10030 |
US $64.50 |
||
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28011-26042 |
— | ||
|
28100
|
28100
28100-10030 Starter Assy[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM 12V 0.8KW |
28100-10030 |
US $931.84 |
||
| replacement | |||||
|
28100
|
28100
28100-11010 Starter Assy[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM 12V 0.8KW |
28100-11010 |
US $898.35 |
||
|
28100
|
28100
28100-10040 Starter Assy[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM 12V 1.0KW,W(50D20L BATTERY) |
28100-10040 |
US $1,275.46 |
||
|
28100
|
28100
28100-11060 Starter Assy[05.1994 - 01.1996] 2EE..EP81..5F 12V 0.8KW |
28100-11060 |
US $899.81 |
||
| replacement | |||||
|
28100
|
28100
28100-11160 Starter Assy[05.1994 - 01.1996] 2EE..EP81..5F 12V 0.8KW |
28100-11160 |
US $1,090.54 |
||
|
28100
|
28100
28100-11100 Starter Assy[05.1994 - 01.1996] 2EE..EP81..3FC 12V 1.0KW; 2EE..EP81..5F 12V 1.0KW,W(50D20L BATTERY) |
28100-11100 |
US $1,278.37 |
||
|
28110
|
28110
28110-10030 Housing Assy, Starter Drive[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28110-10030 |
US $68.14 |
||
|
28110
|
28110
28110-10040 Housing Assy, Starter Drive[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28110-10040 |
US $51.11 |
||
|
28120
|
28120
28120-15010
Yoke Assy, Starter
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28120-15010 |
— | ||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28120-26071 |
— | ||
|
28130
|
28130
28130-10030
Frame Assy, Starter Commutator End
[12.1989 - 01.1992] 2E..EP81;2EE..EP81..MTM; 1E..EP80 W(50D20L BATTERY) |
28130-10030 |
— | ||
| replacement | |||||
|
28130
|
28130
28130-10050
Frame Assy, Starter Commutator End
[12.1989 - 01.1992] 2E..EP81;2EE..EP81..MTM; 1E..EP80 W(50D20L BATTERY) |
28130-10050 |
— | ||
|
28130
|
28130
28130-10040
Frame Assy, Starter Commutator End
[01.1992 - 01.1996] 2EE..EP81..3FC; 2E#..EP81..5F W(50D20L BATTERY) |
28130-10040 |
— | ||
|
28130
|
28130
28130-10050
Frame Assy, Starter Commutator End
[01.1992 - 01.1996] 2E#..EP81..5F |
28130-10050 |
— | ||
|
28130
|
28130
28130-34060 Frame Assy, Starter Commutator End[12.1989 - 01.1992] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28130-34060 |
US $19.09 |
||
|
28140
|
28140
28140-15010
Holder Assy, Starter Brush
[12.1989 - 01.1996] 1E,2E..EP8#;2EE..EP81..MTM |
28140-15010 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28140-26070 |
US $16.77 |
||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[12.1989 - 01.1996] 2E#,1N..EP81,NP80 |
90099-17112 |
— | ||
|
28150
|
28150
28150-11060 Switch Assy, Magnet Starter[05.1994 - 01.1996] 2EE..EP81..5F |
28150-11060 |
US $125.22 |
||
|
28150
|
28150
28150-11100 Switch Assy, Magnet Starter[05.1994 - 01.1996] 2EE..EP81..3FC; 2EE..EP81..5F W(50D20L BATTERY) |
28150-11100 |
US $126.67 |
||
|
28150
|
28150
28150-34080 Switch Assy, Magnet Starter[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28150-34080 |
US $372.74 |
||
|
28150
|
28150
28150-37010 Switch Assy, Magnet Starter[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM |
28150-37010 |
US $141.23 |
||
| replacement | |||||
|
28150
|
28150
28150-37011
Switch Assy, Magnet Starter
[12.1989 - 05.1994] 2E..EP81;2EE..EP81..MTM |
28150-37011 |
— | ||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[12.1989 - 03.1992] 2E#,1N..EP81,NP80 |
28159-10040 |
— | ||
|
28160
|
28160
28160-15010 Armature Assy, Starter[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM |
28160-15010 |
US $230.05 |
||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[12.1989 - 01.1996] 2E..EP81;2EE..EP81..MTM W(50D20L BATTERY) |
28160-26071 |
— | ||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[12.1989 - 01.1996] 2E#..EP81 NO.1 |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[12.1989 - 01.1996] 2E#..EP81 NO.2 |
90099-10113 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[12.1989 - 03.1992] 2E#,1N..EP81,NP80 |
28165-26040 |
— | ||
|
28169
|
28169
28169-10040
Clamp, Starter Motor Lead Wire
[12.1989 - 01.1996] 2E#..EP81 |
28169-10040 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[12.1989 - 03.1992] 2E#,1N..EP81,NP80 |
28175-10040 |
— | ||
|
28226
|
28226
28226-72080 Starter Kit, Battery Terminal[12.1989 - 01.1996] 2E#..EP81 |
28226-72080 |
US $14.47 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[12.1989 - 01.1992] 2E#,1N..EP81,NP80 |
28226-72010 |
from US $10.49 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[12.1989 - 01.1996] 2E#,1N..EP81,NP80 |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[12.1989 - 03.1992] 2E#,1N..EP81,NP80 |
28229-26040 |
— | ||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[12.1989 - 03.1992] 2E#,1N..EP81,NP80 |
28235-35080 |
from US $25.68 |
||
|
28252
|
28252
28254-45020
Pinion, Starter Drive
[12.1989 - 01.1996] 2E#..EP81 |
28254-45020 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161161060
|
9161161060
91611-61060
Bolt(for Clutch Release Cylinder Setting)
|
91611-61060 |
— | ||
| replacement | |||||
|
9161161060
|
9161161060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
