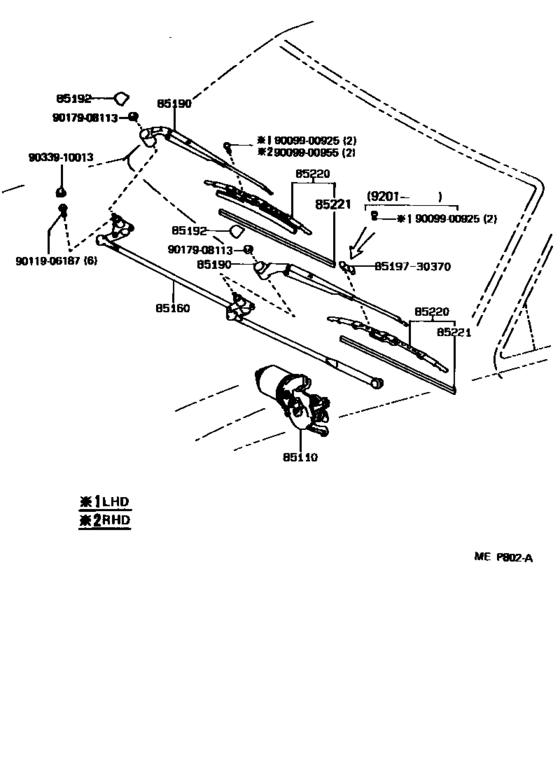

Windshield Wiper ([12.1989 - 01.1996] (8912-9601)) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-10370 Motor Assy, Windshield WiperWINDSHIELD WIPER [12.1989 - 01.1996] EP8#,NP80..LHD |
85110-10370 |
US $349.44 |
||
|
85160
|
85160
85150-10360
Link Assy, Windshield Wiper
[12.1989 - 03.1991] EP8#,NP80..LHD |
85150-10360 |
— | ||
| replacement | |||||
|
85160
|
85160
85150-10361
Link Assy, Windshield Wiper
[12.1989 - 03.1991] EP8#,NP80..LHD |
85150-10361 |
— | ||
|
85160
|
85160
85150-10361
Link Assy, Windshield Wiper
[03.1991 - 01.1996] EP8#,NP80..LHD |
85150-10361 |
— | ||
|
85190
|
85190
85211-10090
Arm Assy, Windshield Wiper
[12.1989 - 01.1992] EP8#,NP80..LHD RH |
85211-10090 |
— | ||
|
85190
|
85190
85211-10091 Arm Assy, Windshield WiperWINDSHIELD WIPER [01.1992 - 01.1996] EP8#,NP80..LHD RH |
85211-10091 |
US $51.11 |
||
|
85190
|
85190
85221-10100
Arm Assy, Windshield Wiper
[12.1989 - 01.1992] EP8#,NP80..LHD LH |
85221-10100 |
— | ||
|
85190
|
85190
85221-10101 Arm Assy, Windshield WiperWINDSHIELD WIPER [01.1992 - 01.1996] EP8#,NP80..LHD LH |
85221-10101 |
US $54.16 |
||
|
85192
|
85192
85192-12800 Cover, Windshield Wiper Arm[12.1989 - 01.1996] EP8#,NP80 |
85192-12800 |
from US $2.15 |
||
| replacement | |||||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[12.1989 - 01.1996] EP8#,NP80 |
85292-12020 |
from US $1.52 |
||
|
85220
|
85220
85212-10120 Blade Assy, Windshield WiperWINDSHIELD WIPER [01.1992 - 06.1992] EP8#,NP80..LHD RH |
85212-10120 |
US $33.20 |
||
|
85220
|
85220
85220-12671 Blade Assy, Windshield WiperWINDSHIELD WIPER [12.1989 - 01.1992] EP8#,NP80..LHD RH |
85220-12671 |
US $33.20 |
||
|
85220
|
85220
85222-10190 Blade Assy, Windshield WiperWINDSHIELD WIPER [12.1989 - 01.1992] EP8#,NP80..LHD LH |
85222-10190 |
US $53.14 |
||
| replacement | |||||
|
85220
|
85220
85222-10210
Blade Assy, Windshield Wiper
[12.1989 - 01.1992] EP8#,NP80..LHD LH |
85222-10210 |
— | ||
|
85220
|
85220
85222-10210
Blade Assy, Windshield Wiper
[01.1992 - 01.1996] EP8#,NP80..LHD LH |
85222-10210 |
— | ||
|
85221
|
85221
85221-32050
Blade, Windshield Wiper
[12.1989 - 01.1996] EP8#..RHD RH; EP8#,NP80..LHD LH |
85221-32050 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[12.1989 - 01.1996] EP8#..RHD RH; EP8#,NP80..LHD LH |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85221-89106 Blade, Windshield WiperWINDSHIELD WIPER [12.1989 - 01.1996] EP8#,NP80..LHD RH |
85221-89106 |
US $9.17 |
||
| replacement | |||||
|
85221
|
85221
85214-12H90 Rubber, Blade Wiper[12.1989 - 01.1996] EP8#,NP80..LHD RH |
85214-12H90 |
US $10.88 |
||
|
8519730370
|
8519730370
85197-30370 New Genuine Part |
85197-30370 |
US $4.48 |
||
|
9009900925
|
9009900925
90099-00925 SCREW |
90099-00925 |
US $1.46 |
||
|
9009900955
|
9009900955
90099-00955 New Genuine Part |
90099-00955 |
US $2.88 |
||
|
9011906187
|
9011906187
90119-06187
New Genuine Part
|
90119-06187 |
— | ||
| replacement | |||||
|
9011906187
|
9011906187
90119-06490 BOLT W-WASHER |
90119-06490 |
from US $1.40 |
||
|
9017908113
|
9017908113
90179-08113 Nut (For Front Wiper Arm Setting) |
90179-08113 |
from US $1.92 |
||
|
9033910013
|
9033910013
90339-10013 New Genuine Part |
90339-10013 |
US $2.33 |
||
