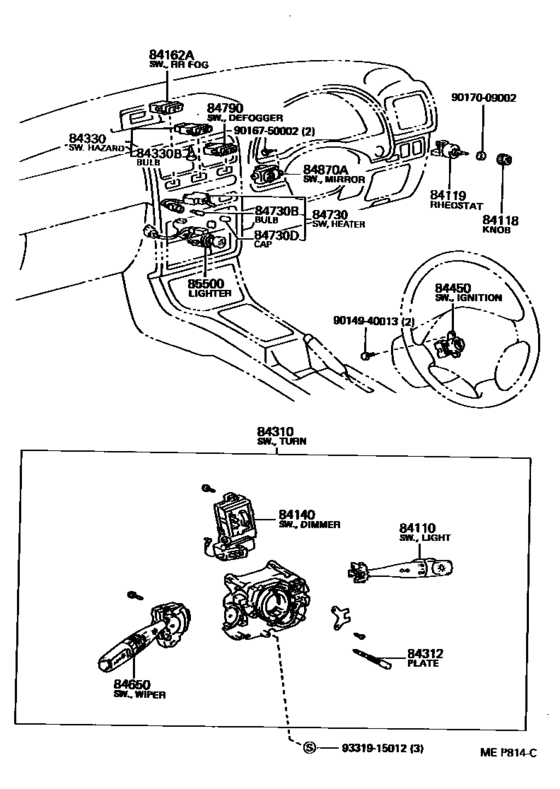

Switch & Relay & Computer ([12.1989 - 01.1996] (8912-9601)RHD) Diagram Toyota STARLET
- Year
- 1992 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- XLI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 01.1992
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80053
Switch Assy, Light Control, No.1
[06.1991 - 01.1996] EP80..RHD;EP81..RHD..EFI |
84112-80053 |
— | ||
|
84118
|
84118
84118-20011-01 Knob, Light Control Rheostat[01.1992 - 08.1992] EP81..S,SI BLACK,TRIM1#; EP81..GLI,XL,XLI BLACK,TRIM1#,4# |
84118-20011-01 |
US $13.69 |
||
| replacement | |||||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[01.1992 - 08.1992] EP81..S,SI BLACK,TRIM1#; EP81..GLI,XL,XLI BLACK,TRIM1#,4# |
84118-20011 |
US $13.80 |
||
|
84118
|
84118
84118-20011-22
Knob, Light Control Rheostat
[08.1992 - 12.1992] EP81..S,SI BLACK,TRIM1#; EP81..GLI,XL,XLI BLACK,TRIM1#,4# |
84118-20011-22 |
— | ||
| replacement | |||||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[08.1992 - 12.1992] EP81..S,SI BLACK,TRIM1#; EP81..GLI,XL,XLI BLACK,TRIM1#,4# |
84118-20011 |
US $13.80 |
||
|
84119
|
84119
84119-20082 Rheostat, Light Control[12.1989 - 01.1996] EP81..RHD..EFI;EP81..LHD..(GL,S,SI,XL,XLI) |
84119-20082 |
US $81.54 |
||
|
84140
|
84140
84140-10160
Switch Assy, Headlamp Dimmer
[06.1991 - 01.1996] EP80..RHD;EP81..RHD..EFI |
84140-10160 |
— | ||
|
84162A
|
84162A
84165-10010 Switch, Rear Fog LampREAR FOG LAMP [12.1989 - 01.1996] EP8#,NP80 |
84165-10010 |
US $57.08 |
||
|
84310
|
84310
84310-10720
Switch Assy, Turn Signal
[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI |
84310-10720 |
— | ||
| replacement | |||||
|
84310
|
84310
84310-16260
Switch Assy, Turn Signal
[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI |
84310-16260 |
— | ||
|
84310
|
84310
84310-10730 Switch Assy, Turn Signal[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(INTERMITTENT WIPER) |
84310-10730 |
US $254.80 |
||
| replacement | |||||
|
84310
|
84310
84310-16260
Switch Assy, Turn Signal
[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(INTERMITTENT WIPER) |
84310-16260 |
— | ||
|
84310
|
84310
84310-10760 Switch Assy, Turn SignalTURN SIGNAL [06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(REAR WIPER---INTERMITTENT) |
84310-10760 |
US $275.18 |
||
| replacement | |||||
|
84310
|
84310
84310-10790 Switch Assy, Turn Signal[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(REAR WIPER---INTERMITTENT) |
84310-10790 |
US $302.85 |
||
|
84310
|
84310
84310-10770 Switch Assy, Turn Signal[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(*IW & *RW---INTERMITTENT) |
84310-10770 |
US $279.55 |
||
| replacement | |||||
|
84310
|
84310
84310-10790 Switch Assy, Turn Signal[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(*IW & *RW---INTERMITTENT) |
84310-10790 |
US $302.85 |
||
|
84312
|
84312
84312-10040 Plate, Horn Contact[06.1991 - 01.1996] EP80..RHD;EP81..RHD..EFI |
84312-10040 |
US $16.31 |
||
|
84330
|
84330
84332-10171 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [01.1992 - 01.1996] EP8#,NP80 |
84332-10171 |
US $57.08 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[12.1989 - 01.1996] EP8#,NP80 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84450
|
84450
84450-10110
Switch Assy, Ignition Or Starter
[06.1991 - 01.1996] EP80,NP80;EP81..LHD;EP81..RHD..EFI |
84450-10110 |
— | ||
|
84650
|
84650
84652-10510 Switch Assy, Windshield Wiper[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI |
84652-10510 |
US $100.46 |
||
|
84650
|
84650
84652-10520 Switch Assy, Windshield Wiper[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(INTERMITTENT WIPER) |
84652-10520 |
US $109.20 |
||
| replacement | |||||
|
84650
|
84650
84652-16290 Switch Assy, Windshield Wiper[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(INTERMITTENT WIPER) |
84652-16290 |
US $101.92 |
||
|
84650
|
84650
84652-10550 Switch Assy, Windshield WiperWINDSHIELD WIPER [06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(REAR WIPER---INTERMITTENT) |
84652-10550 |
US $125.22 |
||
|
84650
|
84650
84652-10560 Switch Assy, Windshield Wiper[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(*IW & *RW---INTERMITTENT) |
84652-10560 |
US $133.95 |
||
| replacement | |||||
|
84650
|
84650
84652-16450 Switch Assy, Windshield Wiper[06.1991 - 05.1994] EP80..RHD..XL;EP81..RHD..XLI W(*IW & *RW---INTERMITTENT) |
84652-16450 |
US $131.04 |
||
|
84730
|
84730
84732-10140 Switch Assy, Heater Blower[12.1989 - 01.1996] EP8#..RHD |
84732-10140 |
US $61.01 |
||
| replacement | |||||
|
84730
|
84730
84732-26020 Switch Assy, Heater Blower[12.1989 - 01.1996] EP8#..RHD |
84732-26020 |
US $66.74 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[12.1989 - 01.1996] EP8#,NP80 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
84730D
|
84730D
84998-10390 Cap, Heater Blower Switch Bulb[12.1989 - 01.1996] EP8#..RHD |
84998-10390 |
US $2.61 |
||
|
84790
|
84790
84790-10190 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [01.1992 - 01.1996] EP8#,NP80 |
84790-10190 |
US $57.37 |
||
|
85500
|
85500
85500-10110 Lighter Assy, CigaretteCIGARETTE [12.1989 - 05.1994] EP8#,NP80 |
85500-10110 |
US $48.34 |
||
| replacement | |||||
|
85500
|
85500
85500-16200 Lighter Assy, Cigarette[12.1989 - 05.1994] EP8#,NP80 |
85500-16200 |
US $70.32 |
||
|
85500
|
85500
85500-10111 Lighter Assy, CigaretteCIGARETTE [05.1994 - 01.1996] EP81,NP80 |
85500-10111 |
US $48.34 |
||
| replacement | |||||
|
85500
|
85500
85500-16200 Lighter Assy, Cigarette[05.1994 - 01.1996] EP81,NP80 |
85500-16200 |
US $70.32 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.12 |
||
|
9016750002
|
9016750002
90167-50002
Direct
|
90167-50002 |
— | ||
| replacement | |||||
|
9016750002
|
9016750002
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9017009002
|
9017009002
90170-09002 Nut, Tunnel Mode Select Switch |
90170-09002 |
US $1.05 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
