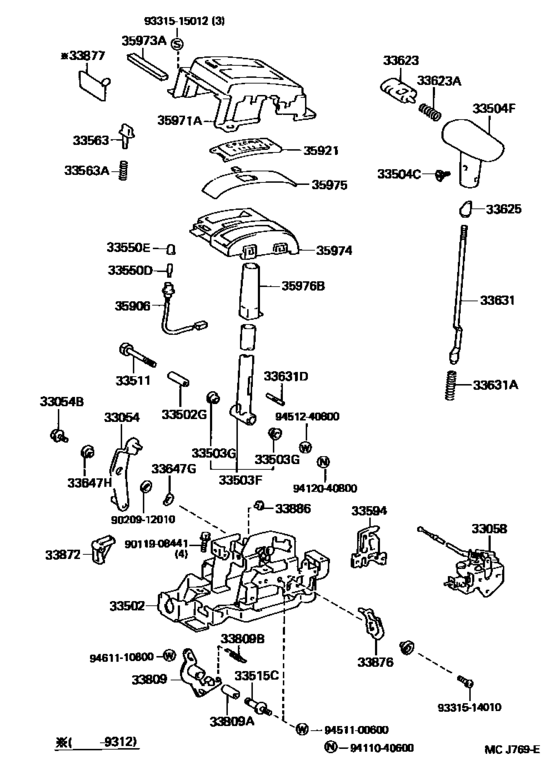

Shift Lever & Retainer ([12.1989 - ] (8912- )3FC) Diagram Toyota STARLET
- Year
- 1989 - 1992
- Sales region
- Japan
- Frame
- EP82
- grade
- SOLL
- ENGINE
- 4EF
- TRANSMISSION
- ATM
- From
- 12.1989
- To
- 01.1992
- Gear Shift Type
- 3FC
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33054
|
33054
33054-10030 Lever Sub-Assy, Shift, No.2(For Floor Shift)[12.1989 - 01.1996] EP8#,NP80..ATM |
33054-10030 |
US $30.43 |
||
|
33054B
|
33054B
90119-08606 Bolt(For Shift Lever No.2)[12.1989 - 01.1996] EP8#,NP80..ATM |
90119-08606 |
US $1.89 |
||
|
33058
|
33058
33058-10010 Bracket Sub-Assy, Shift Lock Solenoid[12.1989 - 01.1996] EP8#,NP80..ATM |
33058-10010 |
US $74.26 |
||
|
33502
|
33502
33502-10150 Plate Sub-Assy, Shift Lever[12.1989 - 01.1996] EP82..3FC |
33502-10150 |
US $160.16 |
||
|
33502G
|
33502G
90387-08114
Collar (For Shift Lever Plate)
[12.1989 - 01.1996] EP8#,NP80..ATM |
90387-08114 |
— | ||
|
33503F
|
33503F
33503-10170 Lever Sub-Assy, Shift(For Floor Shift)[12.1989 - 01.1996] EP82..3FC |
33503-10170 |
US $32.47 |
||
|
33503G
|
33503G
90386-11012 Bush(For Shift Lever)[12.1989 - 01.1996] EP8#,NP80..ATM |
90386-11012 |
US $2.62 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[12.1989 - 01.1996] EP8#,NP80..ATM |
90159-40109 |
US $1.28 |
||
|
33504F
|
33504F
33542-10030-03 Knob Sub-Assy, Shift Lever[12.1989 - 12.1992] EP82..3FC..CBR;EP82..5D..3FC..EFI;EP82..3D..3FC..SOL..EFI GRAY,TRIM1# |
33542-10030-03 |
US $41.06 |
||
|
33504F
|
33504F
33542-10030-04 Knob Sub-Assy, Shift Lever[10.1991 - 12.1991] EP82..3FC..(S,SOLL) BLUE,TRIM8# |
33542-10030-04 |
US $41.06 |
||
| replacement | |||||
|
33504F
|
33504F
33542-10030-03 Knob Sub-Assy, Shift Lever[10.1991 - 12.1991] EP82..3FC..(S,SOLL) BLUE,TRIM8# |
33542-10030-03 |
US $41.06 |
||
|
33504F
|
33504F
33542-10030-06 Knob Sub-Assy, Shift Lever[12.1989 - 01.1992] EP82..3FC..(SOLL,X) SABLE,TRIM4# |
33542-10030-06 |
US $41.06 |
||
| replacement | |||||
|
33504F
|
33504F
33542-10030-03 Knob Sub-Assy, Shift Lever[12.1989 - 01.1992] EP82..3FC..(SOLL,X) SABLE,TRIM4# |
33542-10030-03 |
US $41.06 |
||
|
33511
|
33511
33511-12070 Shaft, Control (For Floor Shift)[12.1989 - 01.1996] EP8#,NP80..ATM |
33511-12070 |
US $9.90 |
||
|
33515C
|
33515C
33515-12010 Shaft, Control, No.2[12.1989 - 01.1996] EP8#,NP80..ATM |
33515-12010 |
US $5.39 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[12.1989 - 01.1996] EP8#,NP80..ATM １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.24 |
||
|
33550E
|
33550E
90339-04014 Cap, Position Indicator Lamp[12.1989 - 01.1996] EP8#,NP80..ATM |
90339-04014 |
US $1.60 |
||
|
33563
|
33563
33563-10010 Button, Shift Lock Release[12.1989 - 05.1994] EP8#,NP80..ATM |
33563-10010 |
US $5.39 |
||
|
33563A
|
33563A
90501-06063 Spring, Compression (For Shift Lock Release Button)[12.1989 - 01.1996] EP8#,NP80..ATM |
90501-06063 |
US $1.89 |
||
|
33594
|
33594
33594-10020 Plate, Shift Lock (For Floor Shift)[12.1989 - 01.1996] EP8#,NP80..ATM |
33594-10020 |
US $5.10 |
||
|
33623
|
33623
33623-10010-03 Button, Shift Lever Knob[12.1989 - 01.1996] EP82..3FC GRAY,TRIM1# |
33623-10010-03 |
US $21.84 |
||
|
33623
|
33623
33623-10010-04 Button, Shift Lever Knob[10.1991 - 12.1991] EP82..3FC..(S,SOLL) BLUE,TRIM8# |
33623-10010-04 |
US $21.69 |
||
|
33623
|
33623
33623-10010-06 Button, Shift Lever Knob[12.1989 - 01.1992] EP82..3FC..(SOLL,X) SABLE,TRIM4# |
33623-10010-06 |
US $21.69 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[12.1989 - 01.1996] EP8#,NP80..ATM |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-22020 Sleeve, Shift Lever Knob[12.1989 - 01.1996] EP82..3FC |
33625-22020 |
US $12.48 |
||
|
33631
|
33631
33631-12100 Rod, Detent[12.1989 - 01.1996] EP82..3FC |
33631-12100 |
US $17.76 |
||
|
33631A
|
33631A
90501-08129 Spring, Compression (For Detent Rod)[12.1989 - 01.1996] EP82..3FC |
90501-08129 |
US $2.18 |
||
|
33631D
|
33631D
90256-04003 Pin, Slotted Spring (For Detent Rod)[12.1989 - 01.1996] EP8#,NP80..ATM |
90256-04003 |
US $2.97 |
||
|
33647G
|
33647G
90206-12002 Washer, Wave (For Control Link Shaft)[12.1989 - 01.1996] EP8#,NP80..ATM |
90206-12002 |
US $1.75 |
||
|
33647H
|
33647H
90386-12029 Bush(For Shift Lever No.2)[12.1989 - 01.1996] EP8#,NP80..ATM |
90386-12029 |
US $1.46 |
||
|
33809
|
33809
33809-10010 Lever Sub-Assy, Cable Control[12.1989 - 01.1996] EP8#,NP80..ATM |
33809-10010 |
US $5.39 |
||
|
33809A
|
33809A
90386-08041 Bush (For Cable Control Lever)[12.1989 - 01.1996] EP8#,NP80..ATM |
90386-08041 |
US $2.62 |
||
|
33809B
|
33809B
90506-05005 Spring, Torsion (For Cable Control Lever)[12.1989 - 01.1996] EP8#,NP80..ATM |
90506-05005 |
US $1.89 |
||
|
33872
|
33872
33872-10010 Link, Shift Lock Release, No.2[12.1989 - 01.1996] EP8#,NP80..ATM |
33872-10010 |
US $5.39 |
||
|
33876
|
33876
33876-10010 Guide, Shift Lock Plate[12.1989 - 01.1996] EP8#,NP80..ATM |
33876-10010 |
US $20.82 |
||
|
33877
|
33877
33877-12010
Label, Shift Lock Information, No.1
[12.1989 - 12.1993] EP8#,NP80..ATM |
33877-12010 |
— | ||
|
33886
|
33886
33886-16010 Stopper, Shift Lever[12.1989 - 01.1996] EP8#,NP80..ATM |
33886-16010 |
US $1.35 |
||
|
35906
|
35906
35906-10040 Wire Sub-Assy, Indicator Lamp[01.1991 - 01.1996] EP8#,NP80..ATM |
35906-10040 |
US $8.01 |
||
| replacement | |||||
|
35906
|
35906
35906-17020 Wire Sub-Assy, Indicator Lamp[01.1991 - 01.1996] EP8#,NP80..ATM |
35906-17020 |
US $13.69 |
||
|
35906
|
35906
35906-35051 Wire Sub-Assy, Indicator Lamp[12.1989 - 01.1991] EP8#,NP80..ATM |
35906-35051 |
US $15.87 |
||
| replacement | |||||
|
35906
|
35906
35906-17020 Wire Sub-Assy, Indicator Lamp[12.1989 - 01.1991] EP8#,NP80..ATM |
35906-17020 |
US $13.69 |
||
|
35921
|
35921
35921-10110 Plate, Control Position Indicator[12.1989 - 01.1996] EP8#,NP80..ATM |
35921-10110 |
US $62.32 |
||
|
35971A
|
35971A
35971-10090 Housing, Position Indicator, Upper[12.1989 - 05.1994] EP8#,NP80..ATM |
35971-10090 |
US $42.22 |
||
| replacement | |||||
|
35971A
|
35971A
35971-10091 Housing, Position Indicator, Upper[12.1989 - 05.1994] EP8#,NP80..ATM |
35971-10091 |
US $42.37 |
||
|
35973A
|
35973A
35973-10010 Attachment, Position Indicator Housing Cover[03.1990 - 01.1996] EP8#,NP80..ATM |
35973-10010 |
US $1.89 |
||
|
35974
|
35974
35974-10080
Housing, Position Indicator, Lower
[12.1989 - 01.1996] EP8#,NP80..ATM |
35974-10080 |
— | ||
|
35975
|
35975
35975-10040 Cover, Slide (For Position Indicator)[12.1989 - 01.1996] EP82..3FC |
35975-10040 |
US $40.77 |
||
|
35976B
|
35976B
35976-10020 Cover, Shift Lever Knob (For Floor Shift)[12.1989 - 01.1996] EP82..3FC |
35976-10020 |
US $23.88 |
||
|
9011908441
|
9011908441
90119-08441 New Genuine Part |
90119-08441 |
US $1.79 |
||
|
9020912010
|
9020912010
90209-12010 New Genuine Part |
90209-12010 |
US $1.75 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451240800
|
9451240800
94512-40800
New Genuine Part
|
94512-40800 |
— | ||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
US $1.28 |
||
