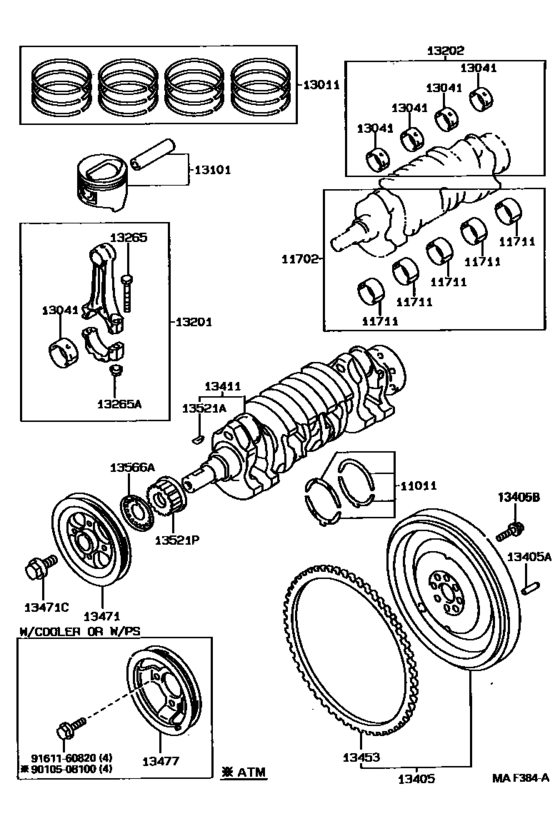

Crankshaft & Piston ([01.1992 - ] (9201- )4EFE) Diagram Toyota STARLET
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- EP82
- grade
- S
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- From
- 04.1992
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-10010 Washer Set, Crankshaft Thrust[12.1989 -] 1E,2E,4EFE..EP8# STD |
11011-10010 |
from US $26.73 |
||
|
11011
|
11011
11012-10020 Washer Set, Crankshaft Thrust[12.1989 -] 1E,2E,4EFE..EP8# O/S 0.125 |
11012-10020 |
US $33.63 |
||
|
11702
|
11702
11704-10011
Bearing Set, Crankshaft (0.25)
[12.1989 - 01.1996] 1E,2E,4EFE..EP8# U/S 0.25 |
11704-10011 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-10012 Bearing Set, Crankshaft (0.25)[12.1989 - 01.1996] 1E,2E,4EFE..EP8# U/S 0.25 |
11704-10012 |
from US $67.08 |
||
|
11711
|
11711
11701-10011-01
Bearing, Crankshaft
[12.1989 - 01.1996] 1E,2E,4EFE..EP8# MARK 1 |
11701-10011-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-10012-01 Bearing, Crankshaft[12.1989 - 01.1996] 1E,2E,4EFE..EP8# MARK 1 |
11701-10012-01 |
from US $21.68 |
||
|
11711
|
11711
11701-10011-02
Bearing, Crankshaft
[12.1989 - 01.1996] 1E,2E,4EFE..EP8# MARK 2 |
11701-10011-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-10012-02 Bearing, Crankshaft[12.1989 - 01.1996] 1E,2E,4EFE..EP8# MARK 2 |
11701-10012-02 |
from US $20.14 |
||
|
11711
|
11711
11701-10011-03
Bearing, Crankshaft
[12.1989 - 01.1996] 1E,2E,4EFE..EP8# MARK 3 |
11701-10011-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-10012-03 Bearing, Crankshaft[12.1989 - 01.1996] 1E,2E,4EFE..EP8# MARK 3 |
11701-10012-03 |
US $47.27 |
||
|
13011
|
13011
13011-11121 Ring Set, Piston[01.1992 - 02.1993] 4EFE..EP82 STD |
13011-11121 |
US $205.30 |
||
| replacement | |||||
|
13011
|
13011
13011-11122 Ring Set, Piston[01.1992 - 02.1993] 4EFE..EP82 STD |
13011-11122 |
from US $115.05 |
||
|
13011
|
13011
13011-11122 Ring Set, Piston[02.1993 - 01.1996] 4EFE..EP82 STD |
13011-11122 |
from US $115.05 |
||
|
13041
|
13041
13041-10020-01 Bearing, Connecting Rod[12.1989 -] 1E,2E,4EFE..EP8# MARK 1 |
13041-10020-01 |
from US $17.32 |
||
|
13041
|
13041
13041-10020-02 Bearing, Connecting Rod[12.1989 -] 1E,2E,4EFE..EP8# MARK 2 |
13041-10020-02 |
from US $17.78 |
||
|
13041
|
13041
13041-10020-03 Bearing, Connecting Rod[12.1989 -] 1E,2E,4EFE..EP8# MARK 3 |
13041-10020-03 |
US $38 |
||
|
13101
|
13101
13101-11100-01 Piston Sub-Assy, W/pin[01.1992 - 01.1996] 4EFE..EP82 STD,MARK 1 |
13101-11100-01 |
US $88.82 |
||
| replacement | |||||
|
13101
|
13101
13101-11101-01 Piston Sub-Assy, W/pin[01.1992 - 01.1996] 4EFE..EP82 STD,MARK 1 |
13101-11101-01 |
US $87.36 |
||
|
13101
|
13101
13101-11100-02 Piston Sub-Assy, W/pin[01.1992 - 01.1996] 4EFE..EP82 STD,MARK 2 |
13101-11100-02 |
US $88.82 |
||
| replacement | |||||
|
13101
|
13101
13101-11101-02
Piston Sub-Assy, W/pin
[01.1992 - 01.1996] 4EFE..EP82 STD,MARK 2 |
13101-11101-02 |
— | ||
|
13101
|
13101
13101-11100-03 Piston Sub-Assy, W/pin[01.1992 - 01.1996] 4EFE..EP82 STD,MARK 3 |
13101-11100-03 |
US $88.82 |
||
| replacement | |||||
|
13101
|
13101
13101-11101-03 Piston Sub-Assy, W/pin[01.1992 - 01.1996] 4EFE..EP82 STD,MARK 3 |
13101-11101-03 |
US $87.36 |
||
|
13201
|
13201
13201-19075
Rod Sub-Assy, Connecting
[12.1989 - 12.1995] 1E,2E,4EFE..EP8# |
13201-19075 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-19076 Rod Sub-Assy, Connecting[12.1989 - 12.1995] 1E,2E,4EFE..EP8# |
13201-19076 |
US $131.04 |
||
|
13201
|
13201
13201-19076 Rod Sub-Assy, Connecting[12.1995 -] 1E,2E,4EFE..EP8# |
13201-19076 |
US $131.04 |
||
|
13202
|
13202
13204-10020 Bearing Set, Connecting Rod[12.1989 -] 1E,2E,4EFE..EP8# U/S 0.25 |
13204-10020 |
from US $80.85 |
||
|
13265
|
13265
13265-10020
Bolt, Connecting Rod
[12.1989 - 12.1995] 1E,2E,4EFE..EP8# |
13265-10020 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[12.1989 - 12.1995] 1E,2E,4EFE..EP8# |
13265-10022 |
from US $2.87 |
||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[12.1995 -] 1E,2E,4EFE..EP8# |
13265-10022 |
from US $2.87 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[12.1989 -] 1E,2E,4EFE..EP8# |
90179-08014 |
from US $1.15 |
||
|
13405
|
13405
13405-11031 Flywheel Sub-Assy[01.1992 - 01.1996] 4EFE..EP82..MTM |
13405-11031 |
US $269.36 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[12.1989 -] 1E,2E,4EFE..EP8#..MTM L=18,OD=8 |
90250-08120 |
from US $1.07 |
||
|
13405B
|
13405B
90105-10138 Bolt, Flywheel Setting[12.1989 -] 1E,2E,4EFE..EP8#..MTM |
90105-10138 |
from US $1.70 |
||
|
13411
|
13411
13401-11050
Crankshaft
[12.1989 - 01.1996] 2E,4EFE..EP81,82 |
13401-11050 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-11051
Crankshaft
[12.1989 - 01.1996] 2E,4EFE..EP81,82 |
13401-11051 |
— | ||
|
13453
|
13453
13453-10030 Gear, Flywheel Ring[12.1989 -] 1E,2E,4EFE..EP8#..MTM |
13453-10030 |
US $90.27 |
||
|
13471
|
13471
13408-11012
Pulley, Crankshaft
[12.1989 - 10.1997] 2E,4EFE..EP81,82 |
13408-11012 |
— | ||
| replacement | |||||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[12.1989 - 10.1997] 2E,4EFE..EP81,82 |
13470-11030 |
US $172.80 |
||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[12.1989 -] 1E,2E,4EFE..EP8# |
90105-12051 |
from US $2.73 |
||
|
13477
|
13477
44319-10011 Pulley, Crankshaft, No.2[01.1992 - 05.1994] 4EFE..EP82..CAN,S,SOLL |
44319-10011 |
US $99.01 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[02.1992 -] 1E,2E,4EFE..EP8# |
90280-05005 |
from US $1.76 |
||
|
13521P
|
13521P
13521-11020 Pulley, Crankshaft Timing[01.1992 - 01.1996] 4EFE..EP82 |
13521-11020 |
from US $29.31 |
||
|
13566A
|
13566A
13566-11020 Guide, Timing Belt[01.1992 - 01.1996] 4EFE..EP82 |
13566-11020 |
from US $4.72 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.29 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
