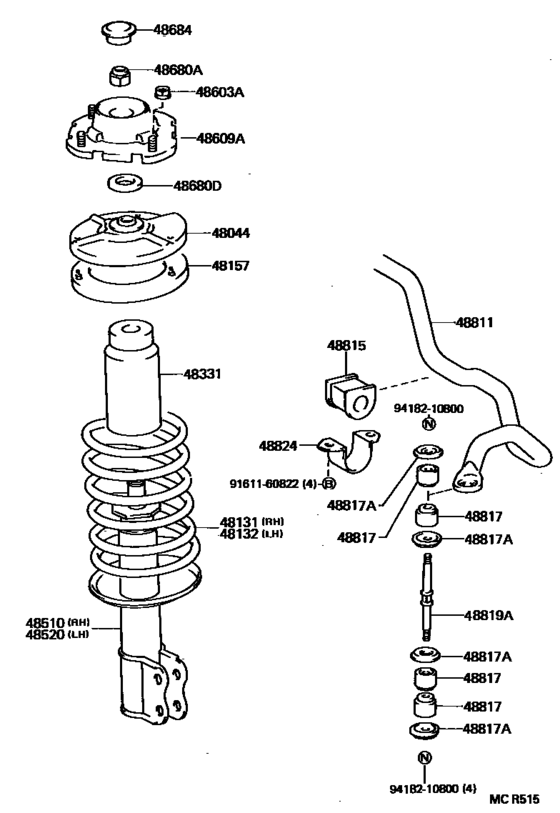

Front Spring & Shock Absorber ([05.1994 - ] (9405- )EP82,NP80..DSL,EFI) Diagram Toyota STARLET
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- EP82
- grade
- XLTD
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- From
- 01.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48044
|
48044
48044-10030 Seat Sub- Assy, Front Spring, No.1[12.1989 - 01.1996] EP8#,NP80 |
48044-10030 |
US $15.90 |
||
|
48131
|
48131
48131-10521 Spring, Front Coil, Rh[01.1992 - 05.1994] EP82,NP80..(4FC,5F)..(SOL,XLTD) |
48131-10521 |
US $123.76 |
||
| replacement | |||||
|
48131
|
48131
48131-10520 Spring, Front Coil, Rh[01.1992 - 05.1994] EP82,NP80..(4FC,5F)..(SOL,XLTD) |
48131-10520 |
US $123.76 |
||
|
48132
|
48132
48131-10521 Spring, Front Coil, Rh[01.1992 - 01.1996] EP82,NP80..4FC..(SOL,XLTD) |
48131-10521 |
US $123.76 |
||
| replacement | |||||
|
48132
|
48132
48131-10520 Spring, Front Coil, Rh[01.1992 - 01.1996] EP82,NP80..4FC..(SOL,XLTD) |
48131-10520 |
US $123.76 |
||
|
48157
|
48157
48157-10020
Insulator, Front Coil Spring, Upper
[12.1989 - 01.1996] EP8#,NP80 |
48157-10020 |
— | ||
|
48331
|
48331
48331-16060
Bumper, Front Spring, No.1
[09.1990 - 01.1996] EP8#,NP80 |
48331-16060 |
— | ||
|
48510
|
48510
48510-10211 Absorber Assy, Shock, Front Rh[01.1992 - 01.1996] EP82..SOL,SOLL,XLTD |
48510-10211 |
US $285.38 |
||
|
48520
|
48520
48520-10191 Absorber Assy, Shock, Front Lh[01.1992 - 01.1996] EP82..SOL,SOLL,XLTD |
48520-10191 |
US $285.38 |
||
|
48603A
|
48603A
90179-08090 Nut(For Front Suspension Support)[12.1989 - 01.1996] EP82,NP80..CBR,DSL,EFI |
90179-08090 |
US $3.20 |
||
|
48609A
|
48609A
48609-10100 Support Sub-Assy, Front Suspension[12.1989 - 05.1994] EP82,NP80..CBR,DSL,EFI |
48609-10100 |
US $70.18 |
||
|
48609A
|
48609A
48609-10130 Support Sub-Assy, Front Suspension[05.1994 - 01.1996] EP82,NP80..DSL,EFI |
48609-10130 |
US $70.32 |
||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[12.1989 - 01.1996] EP8#,NP80 |
94182-11400 |
US $4.96 |
||
|
48680D
|
48680D
90303-22049 Seal, Dust(For Front Suspension Support)[12.1989 - 01.1996] EP8#,NP80 |
90303-22049 |
from US $3.88 |
||
|
48684
|
48684
48684-10010 Cover, Bearing Dust[12.1989 - 01.1996] EP8#,NP80 |
48684-10010 |
from US $1.21 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.40 |
||
