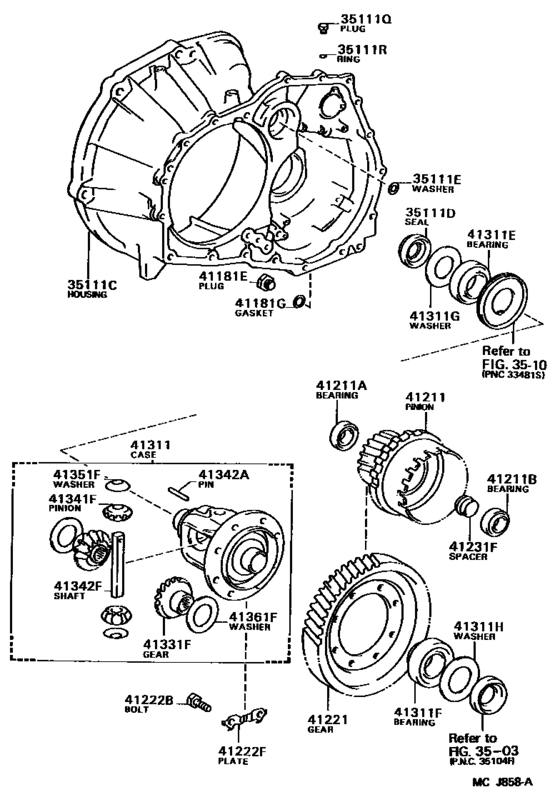

Front Axle Housing & Differential ([12.1989 - ] A242E,A242L (8912- )4FC) Diagram Toyota STARLET
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- EP85
- grade
- XLTD
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- From
- 01.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35111C
|
35111C
35105-16020 Housing, Transaxle[08.1990 - 02.1993] EP85..4FC |
35105-16020 |
US $800.80 |
||
| replacement | |||||
|
35111C
|
35111C
35105-16021 Housing, Transaxle[08.1990 - 02.1993] EP85..4FC |
35105-16021 |
US $805.17 |
||
|
35111C
|
35111C
35105-16021 Housing, Transaxle[02.1993 - 01.1996] EP85..4FC |
35105-16021 |
US $805.17 |
||
|
35111D
|
35111D
90311-54004 Seal, Oil, No.2(For Transaxle Case)[08.1990 - 01.1996] EP85..4FC |
90311-54004 |
US $3.32 |
||
|
35111E
|
35111E
90210-13002 Washer, Seal (For Front Transaxle Housing)[12.1989 - 01.1996] EP8#,NP80..4FC |
90210-13002 |
US $4.08 |
||
|
35111Q
|
35111Q
90341-08001 Plug, Transaxle Case, No.1[12.1989 - 01.1996] EP8#,NP80..4FC |
90341-08001 |
from US $1.92 |
||
|
35111R
|
35111R
90301-06196 O Ring, Transaxle Case, No.1[12.1989 - 01.1996] EP8#,NP80..4FC |
90301-06196 |
from US $2.26 |
||
|
41181E
|
41181E
90341-18057 Drain Plug (with Magnet)[12.1989 - 02.1993] EP8#,NP80..4FC |
90341-18057 |
from US $5.60 |
||
|
41181G
|
41181G
90430-18008 Gasket[01.1992 - 01.1996] EP82..3FC;EP85..4FC |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.1992 - 01.1996] EP82..3FC;EP85..4FC |
90430-T0021 |
US $1.15 |
||
|
41211
|
41211
41206-12010 Pinion, Differential Drive[12.1989 - 01.1996] EP85,NP80..4FC;EP82..4FC..TBO |
41206-12010 |
US $310.13 |
||
|
41211A
|
41211A
90366-30019 Bearing (For Rear Drive Pinion Rear)[08.1992 - 01.1996] EP85..4FC |
90366-30019 |
US $39.17 |
||
|
41211A
|
41211A
90366-30037 Bearing (For Rear Drive Pinion Rear)[08.1990 - 08.1992] EP85..4FC |
90366-30037 |
US $32.03 |
||
| replacement | |||||
|
41211A
|
41211A
90366-30085 Bearing, Tapered Roller (For Front Drive Pinion Front)[08.1990 - 08.1992] EP85..4FC |
90366-30085 |
US $40.91 |
||
|
41211B
|
41211B
90366-30020 Bearing (For Rear Drive Pinion Rear)[08.1992 - 01.1996] EP85..4FC |
90366-30020 |
US $40.91 |
||
|
41211B
|
41211B
90366-30036 Bearing (For Rear Drive Pinion Rear)[08.1990 - 08.1992] EP85..4FC |
90366-30036 |
US $30.72 |
||
| replacement | |||||
|
41211B
|
41211B
90366-30054 Bearing (For Rear Drive Pinion Rear)[08.1990 - 08.1992] EP85..4FC |
90366-30054 |
US $43.24 |
||
|
41221
|
41221
41221-12190 Gear, Front Differential Ring[12.1989 - 01.1996] EP85,NP80..4FC;EP82..4FC..TBO |
41221-12190 |
US $168.90 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[12.1989 - 01.1995] EP85;EP82..5F..TBO;EP82,NP80..ATM |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-12050 Plate, Rear Differential Ring Gear Set Bolt Lock[12.1989 - 01.1996] EP8#,NP80..ATM |
41222-12050 |
US $3.49 |
||
|
41231F
|
41231F
41231-17010 Spacer, Rear Differential Drive Pinion Bearing[08.1990 - 01.1996] EP85..4FC |
41231-17010 |
US $10.05 |
||
|
41311
|
41311
41301-16050 Case, Front Differential[08.1990 - 01.1996] EP85..4FC |
41301-16050 |
US $546 |
||
|
41311E
|
41311E
90368-38006
Bearing(For Rear Differential Case)
[12.1989 - 01.1996] EP82..3FC..CBR;EP85..4FC..EFI |
90368-38006 |
— | ||
| replacement | |||||
|
41311E
|
41311E
90368-38002 Bearing, Tapered Roller (For Front Differential Case Front)[12.1989 - 01.1996] EP82..3FC..CBR;EP85..4FC..EFI |
90368-38002 |
US $15.72 |
||
|
41311F
|
41311F
90368-38010 Bearing(For Rear Differential Case)[12.1989 - 01.1996] EP8#,NP80..4F,4FC,5F |
90368-38010 |
from US $25.38 |
||
|
41311G
|
41311G
90201-58001 Washer, Plate (For Front Differential Case Front)[08.1990 - 01.1996] EP85 厚さ＝１．９０ |
90201-58001 |
US $3.64 |
||
|
41311H
|
41311H
90201-41024 Washer, Plate (For Front Differential Case Front)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．００，マーク Ｖ |
90201-41024 |
US $4.08 |
||
|
41311H
|
41311H
90201-41025 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．３５，マーク Ａ |
90201-41025 |
from US $4.17 |
||
|
41311H
|
41311H
90201-41026 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．４０，マーク Ｂ |
90201-41026 |
US $6.84 |
||
|
41311H
|
41311H
90201-41027 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．４５，マーク Ｃ |
90201-41027 |
US $6.84 |
||
|
41311H
|
41311H
90201-41028 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．５０，マーク Ｄ |
90201-41028 |
US $8.15 |
||
|
41311H
|
41311H
90201-41029 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．５５，マーク Ｅ |
90201-41029 |
US $8.15 |
||
|
41311H
|
41311H
90201-41030 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．６０，マーク Ｆ |
90201-41030 |
US $8.15 |
||
|
41311H
|
41311H
90201-41031 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．６５，マーク Ｇ |
90201-41031 |
US $8.15 |
||
|
41311H
|
41311H
90201-41032 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．７０，マーク Ｈ |
90201-41032 |
US $5.24 |
||
|
41311H
|
41311H
90201-41033 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．７５，マーク Ｊ |
90201-41033 |
US $8.15 |
||
|
41311H
|
41311H
90201-41034 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．８０，マーク Ｋ |
90201-41034 |
US $8.15 |
||
|
41311H
|
41311H
90201-41035 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．８５，マーク Ｌ |
90201-41035 |
US $8.15 |
||
|
41311H
|
41311H
90201-41036 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．９０，マーク Ｍ |
90201-41036 |
US $8.15 |
||
|
41311H
|
41311H
90201-41039 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．１０，マーク Ｑ |
90201-41039 |
US $6.84 |
||
|
41311H
|
41311H
90201-41040 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．１５，マーク Ｒ |
90201-41040 |
US $6.84 |
||
|
41311H
|
41311H
90201-41041 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．２０，マーク Ｓ |
90201-41041 |
US $6.84 |
||
|
41311H
|
41311H
90201-41042 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．２５，マーク Ｔ |
90201-41042 |
US $6.84 |
||
|
41311H
|
41311H
90201-41043 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．３０，マーク Ｕ |
90201-41043 |
US $6.84 |
||
|
41311H
|
41311H
90201-41044 Washer, Plate (For Front Differential Case Rear)[12.1989 - 01.1996] EP8#,NP80..4FC 厚さ＝２．０５，マーク Ｗ |
90201-41044 |
US $4.08 |
||
|
41331F
|
41331F
41331-12011 Gear, Rear Differential Side[12.1989 - 01.1996] EP85;EP82..5F..TBO;EP82,NP80..ATM |
41331-12011 |
US $38.26 |
||
|
41341F
|
41341F
41341-12030 Pinion, Rear Differential[12.1989 - 01.1996] EP85;EP82..5F..TBO;EP82,NP80..ATM |
41341-12030 |
US $24.98 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[12.1989 - 01.1996] EP85;EP82..5F..TBO;EP82,NP80..ATM |
90250-06058 |
from US $1.99 |
||
|
41342F
|
41342F
41342-12140 Shaft, Front Differential Pinion, No.1[09.1991 - 01.1996] EP85;EP82..5F..TBO;EP82,NP80..ATM |
41342-12140 |
US $15.24 |
||
|
41351F
|
41351F
41351-12020 Washer, Rear Differential Pinion Thrust[12.1989 - 01.1996] EP85;EP82..5F..TBO;EP82,NP80..ATM |
41351-12020 |
US $1.69 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[12.1989 - 01.1996] EP8#,NP80..4FC..(DSL,EFI,TBO) 厚さ＝０．９５ |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[12.1989 - 01.1996] EP8#,NP80..4FC..(DSL,EFI,TBO) 厚さ＝１．００ |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[12.1989 - 01.1996] EP8#,NP80..4FC..(DSL,EFI,TBO) 厚さ＝１．０５ |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[12.1989 - 01.1996] EP8#,NP80..4FC..(DSL,EFI,TBO) 厚さ＝１．１０ |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[12.1989 - 01.1996] EP8#,NP80..4FC..(DSL,EFI,TBO) 厚さ＝１．１５ |
41361-17050 |
US $3.32 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[12.1989 - 01.1996] EP8#,NP80..4FC..(DSL,EFI,TBO) 厚さ＝１．２０ |
41361-17060 |
US $2.62 |
||
