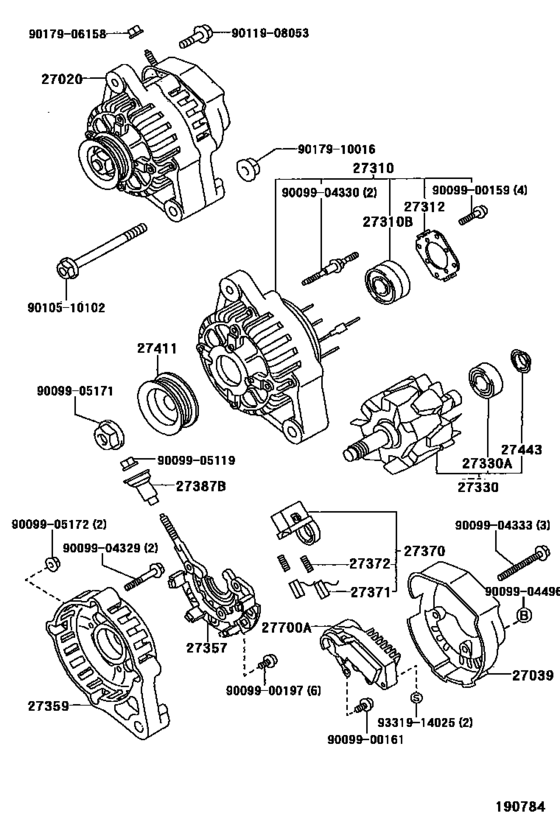

Alternator ([01.1996 - ] 12V 50A (9601- )2E) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-11260 Alternator Assy[01.1996 -] 2E..EP90 12V 50A |
27060-11260 |
US $1,402.13 |
||
|
27039
|
27039
27039-11180
Cover, Alternator Rear End
[01.1998 -] 2E..EP90 |
27039-11180 |
— | ||
|
27039
|
27039
27039-11190
Cover, Alternator Rear End
[01.1996 - 01.1998] 2E..EP90 |
27039-11190 |
— | ||
|
27310
|
27310
27310-10090
Frame Assy, Drive End, Alternator
[01.1996 -] 2E..EP90 |
27310-10090 |
— | ||
|
27310B
|
27310B
90099-10198 Bearing(For Alternator Drive End Frame)[01.1996 -] 2E..EP90 |
90099-10198 |
US $12.93 |
||
| replacement | |||||
|
27310B
|
27310B
90099-10229 Bearing(For Alternator Drive End Frame)[01.1996 -] 2E..EP90 |
90099-10229 |
US $15.87 |
||
|
27312
|
27312
27312-72120
Plate, Bearing Retainer, Alternator
[01.1996 -] 2E..EP90 |
27312-72120 |
— | ||
|
27330
|
27330
27330-72150
Rotor Assy, Alternator
[01.1996 -] 2E..EP90 |
27330-72150 |
— | ||
|
27330A
|
27330A
90099-10154 Bearing(For Alternator Rotor)[01.1996 -] 2E..EP90 |
90099-10154 |
from US $11.53 |
||
|
27357
|
27357
27357-11180
Holder, Alternator, W/rectifier
[01.1998 -] 2E..EP90 |
27357-11180 |
— | ||
|
27357
|
27357
27357-72150
Holder, Alternator, W/rectifier
[01.1996 - 01.1998] 2E..EP90 |
27357-72150 |
— | ||
|
27359
|
27359
27359-72150
Frame, Alternator Rectifier End
[01.1996 - 01.1998] 2E..EP90 |
27359-72150 |
— | ||
|
27359
|
27359
27359-72151
Frame, Alternator Rectifier End
[01.1998 -] 2E..EP90 |
27359-72151 |
— | ||
|
27370
|
27370
27370-54450
Holder Assy, Alternator Brush
[01.1996 - 01.1998] 2E..EP90 |
27370-54450 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[01.1996 - 01.1998] 2E..EP90 |
27370-58320 |
from US $15.25 |
||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[01.1998 -] 2E,4EFE..EP9# |
27370-58320 |
from US $15.25 |
||
|
27371
|
27371
27371-70300 Brush, Alternator[01.1996 -] 2E,4EFE..EP9# |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[01.1996 -] 2E,4EFE..EP9# |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[01.1996 -] 2E,4EFE..EP9# |
27372-87501 |
— | ||
|
27387B
|
27387B
27387-10080
Insulator, Terminal
[01.1996 - 08.1997] 2E..EP90 |
27387-10080 |
— | ||
|
27387B
|
27387B
27387-10081
Insulator, Terminal
[08.1997 -] 2E..EP90 |
27387-10081 |
— | ||
|
27411
|
27411
27411-10051
Pulley, Alternator
[01.1996 -] 2E..EP90 |
27411-10051 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[01.1996 -] 2E,4EFE..EP9# |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-11060
Regulator Assy, Generator
[01.1996 -] 2E..EP90 |
27700-11060 |
— | ||
|
9009900159
|
9009900159
90099-00159
New Genuine Part
|
90099-00159 |
— | ||
|
9009900161
|
9009900161
90099-00161
New Genuine Part
|
90099-00161 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009904329
|
9009904329
90099-04329
New Genuine Part
|
90099-04329 |
— | ||
|
9009904330
|
9009904330
90099-04330
New Genuine Part
|
90099-04330 |
— | ||
|
9009904333
|
9009904333
90099-04333
New Genuine Part
|
90099-04333 |
— | ||
| replacement | |||||
|
9009904333
|
9009904333
27795-87501
New Genuine Part
|
27795-87501 |
— | ||
|
9009904496
|
9009904496
90099-04496 New Genuine Part |
90099-04496 |
US $2.48 |
||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010510102
|
9010510102
90105-10102 BOLT |
90105-10102 |
US $4.02 |
||
|
9011908053
|
9011908053
90119-08053 New Genuine Part |
90119-08053 |
US $1.75 |
||
| replacement | |||||
|
9011908053
|
9011908053
91661-40825 New Genuine Part |
91661-40825 |
US $1.75 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.25 |
||
