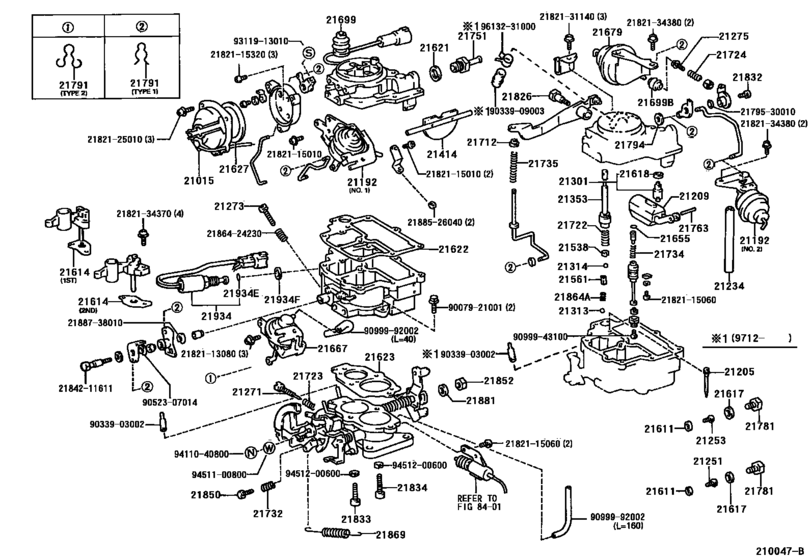

Carburetor ([01.1996 - ] (9601- )2E) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21015
|
21015
21015-11840 Housing Sub-Assy, Coil[01.1996 -] 2E..EP90 |
21015-11840 |
US $186.37 |
||
|
21192
|
21192
21192-11840 Breaker[01.1996 -] 2E..EP90 NO.1 |
21192-11840 |
US $160.16 |
||
|
21192
|
21192
21192-11851 Breaker[01.1996 -] 2E..EP90 NO.2 |
21192-11851 |
US $160.16 |
||
|
21205
|
21205
21205-11840 Jet Sub-Assy, SlowSLOW [01.1996 -] 2E..EP90 |
21205-11840 |
US $13.10 |
||
| replacement | |||||
|
21205
|
21205
21205-1E110
Jet Sub-Assy, Slow
[01.1996 -] 2E..EP90 |
21205-1E110 |
— | ||
|
21209
|
21209
21209-11780 Float Sub-Assy[01.1996 -] 2E..EP90 |
21209-11780 |
US $43.68 |
||
|
21234
|
21234
21235-11840 Pipe Or Hose[01.1996 -] 2E..EP90 |
21235-11840 |
US $5.82 |
||
| replacement | |||||
|
21234
|
21234
90079-71001
Pipe Or Hose, Connecting
[01.1996 -] 2E..EP90 |
90079-71001 |
— | ||
|
21251
|
21251
90999-41103 Jet, 1St Main[01.1996 -] 2E..EP90 |
90999-41103 |
US $6.12 |
||
|
21253
|
21253
90999-42162
Jet, 2Nd Main
[01.1996 -] 2E..EP90 |
90999-42162 |
— | ||
|
21271
|
21271
21271-11840 Screw, Idle Adjusting[01.1996 -] 2E..EP90 |
21271-11840 |
US $6.12 |
||
| replacement | |||||
|
21271
|
21271
21271-1E040 Screw, Idle Adjusting[01.1996 -] 2E..EP90 |
21271-1E040 |
US $5.82 |
||
|
21273
|
21273
21273-24231 Screw, Throttle Adjusting[01.1996 -] 2E..EP90 |
21273-24231 |
US $9.26 |
||
|
21275
|
21275
21275-11630 Screw, Adjusting[01.1996 -] 2E..EP90 |
21275-11630 |
US $3.49 |
||
|
21301
|
21301
21301-11620 Valve Sub-Assy, Needle[01.1996 -] 2E..EP90 |
21301-11620 |
US $34.36 |
||
|
21313
|
21313
21313-11020 Ball, Steel, No.1(For Discharge Weight)[01.1996 -] 2E..EP90 |
21313-11020 |
US $3.67 |
||
|
21314
|
21314
21314-60010 Ball, Steel, No.2(For Pump Plunger)[01.1996 -] 2E..EP90 |
21314-60010 |
US $3.64 |
||
| replacement | |||||
|
21314
|
21314
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[01.1996 -] 2E..EP90 |
21314-11020 |
US $3.44 |
||
|
21353
|
21353
21353-11840
Plunger, Pump
[01.1996 -] 2E..EP90 |
21353-11840 |
— | ||
|
21414
|
21414
21054-11610 Shaft, Choke[01.1996 -] 2E..EP90 |
21054-11610 |
US $39.17 |
||
|
21538
|
21538
21538-31010 Retainer, Ball Check[01.1996 -] 2E..EP90 |
21538-31010 |
US $3.85 |
||
|
21561
|
21561
21575-11730 Weight, Pump Discharge[01.1996 -] 2E..EP90 |
21575-11730 |
US $7.86 |
||
|
21611
|
21611
21611-22010 Gasket, Main Jet[01.1996 -] 2E..EP90 |
21611-22010 |
US $3.32 |
||
|
21614
|
21614
21614-13430 Gasket, Venturi[01.1996 -] 2E..EP90 2ND |
21614-13430 |
US $2.87 |
||
|
21614
|
21614
21614-24580 Gasket, Venturi[01.1996 -] 2E..EP90 1ST |
21614-24580 |
US $2.97 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[01.1996 -] 2E..EP90 |
21617-30010 |
US $3.55 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[01.1996 -] 2E..EP90 |
21618-14010 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[01.1996 -] 2E..EP90 |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-13430 Gasket, Air Horn[01.1996 -] 2E..EP90 |
21622-13430 |
US $8.94 |
||
|
21623
|
21623
21623-11611 Gasket, Body Flange[01.1996 -] 2E..EP90 |
21623-11611 |
US $5.40 |
||
|
21627
|
21627
21627-28090
Gasket, Coil Housing
[01.1996 -] 2E..EP90 |
21627-28090 |
— | ||
| replacement | |||||
|
21627
|
21627
21627-28150 Gasket, Coil Housing[01.1996 -] 2E..EP90 |
21627-28150 |
US $3.84 |
||
|
21655
|
21655
21655-44101 Ring, O(For Lifter Rod)[01.1996 -] 2E..EP90 |
21655-44101 |
US $7.86 |
||
|
21667
|
21667
21667-11611
Diaphragm
[01.1996 -] 2E..EP90 |
21667-11611 |
— | ||
|
21679
|
21679
21679-11680 Positioner[01.1996 -] 2E..EP90 |
21679-11680 |
US $139.78 |
||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[01.1996 -] 2E..EP90 |
21699-28150 |
US $14.50 |
||
|
21699B
|
21699B
21699-41010 Boot(For Dash Pot)[01.1996 -] 2E..EP90 |
21699-41010 |
US $6.36 |
||
|
21712
|
21712
21712-38010 Bush, Sliding Rod[01.1996 -] 2E..EP90 |
21712-38010 |
US $4.37 |
||
| replacement | |||||
|
21712
|
21712
21712-61020 Bush, Sliding Rod[01.1996 -] 2E..EP90 |
21712-61020 |
US $4.89 |
||
|
21722
|
21722
21722-22010 Spring, Pump Damping[01.1996 -] 2E..EP90 |
21722-22010 |
US $3.89 |
||
|
21723
|
21723
21723-21030 Spring, Idle Adjusting[01.1996 -] 2E..EP90 |
21723-21030 |
US $3.72 |
||
|
21724
|
21724
21864-24010
Spring, Throttle Adjusting
[01.1996 -] 2E..EP90 |
21864-24010 |
— | ||
|
21732
|
21732
21726-38310 Spring, 1St Idle Adjusting[01.1996 -] 2E..EP90 |
21726-38310 |
US $4.95 |
||
|
21734
|
21734
21734-11630 Spring, Power PistonPOWER PISTON [01.1996 -] 2E..EP90 |
21734-11630 |
US $4.95 |
||
|
21735
|
21735
21735-22010
Spring, Pump Arm
[01.1996 -] 2E..EP90 |
21735-22010 |
— | ||
|
21751
|
21751
21751-10050 Union, Nipple[01.1996 -] 2E..EP90 |
21751-10050 |
US $9.90 |
||
|
21763
|
21763
21763-38010 Pin, Float Lever[01.1996 -] 2E..EP90 |
21763-38010 |
US $3.93 |
||
|
21781
|
21781
21781-15230 Plug, Main Passage(For Carburetor Jet)[01.1996 -] 2E..EP90 |
21781-15230 |
US $5.82 |
||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[12.1997 -] 2E..EP90 |
21791-13010 |
US $3.32 |
||
|
21791
|
21791
21791-13011 Ring, Snap, No.1(For Carburetor Link)[01.1996 - 12.1997] 2E..EP90 TYPE 2 |
21791-13011 |
US $3.20 |
||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[01.1996 - 12.1997] 2E..EP90 TYPE 2 |
21791-13010 |
US $3.32 |
||
|
21794
|
21794
21794-40070 Ring, Retainer, No.1(For Throttle Shaft)[01.1996 -] 2E..EP90 |
21794-40070 |
US $2.77 |
||
|
21826
|
21826
21826-31012
Screw, Pump Arm Set
[01.1996 -] 2E..EP90 |
21826-31012 |
— | ||
|
21832
|
21832
21832-15320 Screw(For Choke Lever Adapter Set)[01.1996 -] 2E..EP90 |
21832-15320 |
US $2.91 |
||
|
21833
|
21833
21835-40010
Screw, Set, No.1(For Carburetor Body Set)
[01.1996 -] 2E..EP90 |
21835-40010 |
— | ||
|
21834
|
21834
21834-31010 Screw, Set, No.1(For Carburetor Body Set)[01.1996 -] 2E..EP90 |
21834-31010 |
US $3.93 |
||
|
21850
|
21850
21272-71010 Screw, 1St Idle Adjusting[01.1996 -] 2E..EP90 |
21272-71010 |
US $5.24 |
||
|
21852
|
21852
21852-30010 Nut, Throttle Lever Set[01.1996 -] 2E..EP90 |
21852-30010 |
US $4.22 |
||
|
21864A
|
21864A
21864-11730 Spring(For Pump Discharge Weight)[01.1996 -] 2E..EP90 |
21864-11730 |
US $8.44 |
||
|
21869
|
21869
21869-11840 Spring(For Main Jet)[01.1996 -] 2E..EP90 |
21869-11840 |
US $5.24 |
||
|
21881
|
21881
21881-60010 Washer, Lock(For Throttle Shaft)[01.1996 -] 2E..EP90 |
21881-60010 |
US $3.79 |
||
|
21934
|
21934
21062-11840 Solenoid, Throttle ValveTHROTTLE VALVE [01.1996 -] 2E..EP90 |
21062-11840 |
US $147.06 |
||
|
21934E
|
21934E
21655-44101 Ring, O(For Lifter Rod)[01.1996 -] 2E..EP90 |
21655-44101 |
US $7.86 |
||
|
21934F
|
21934F
21649-38010 Gasket[01.1996 -] 2E..EP90 |
21649-38010 |
US $3.14 |
||
|
2179530010
|
2179530010
21795-30010 Ring, Retainer, No.2(For High Speed Shaft) |
21795-30010 |
US $2.48 |
||
|
2182113080
|
2182113080
21821-13080 Screw, 2nd Throttle Valve Set |
21821-13080 |
US $3.93 |
||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
2182115060
|
2182115060
21821-15060 Screw, 2Nd Throttle Valve Set |
21821-15060 |
US $3.06 |
||
|
2182115320
|
2182115320
21821-15320 Screw, 2nd Throttle Valve Set |
21821-15320 |
US $5.68 |
||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.20 |
||
|
2182134370
|
2182134370
21821-34370 Screw, 2nd Throttle Valve Set |
21821-34370 |
US $2.62 |
||
|
2182134380
|
2182134380
21821-34380
Screw, 2nd Throttle Valve Set
|
21821-34380 |
— | ||
|
2184211611
|
2184211611
21842-11611 Screw, Set(for Carburetor Level Gage Clamp Set) |
21842-11611 |
US $3.93 |
||
|
2186424230
|
2186424230
21864-24230 Spring, Throttle Adjusting |
21864-24230 |
US $10.13 |
||
|
2188526040
|
2188526040
21885-26040 Washer, Idle Adjust Screw |
21885-26040 |
US $2.33 |
||
|
2188738010
|
2188738010
21887-38010 New Genuine Part |
21887-38010 |
US $2.77 |
||
| replacement | |||||
|
2188738010
|
2188738010
21885-38310 New Genuine Part |
21885-38310 |
US $2.62 |
||
|
9007921001
|
9007921001
90079-21001 New Genuine Part |
90079-21001 |
US $1.46 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $3.23 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
US $3.76 |
||
|
9052307014
|
9052307014
90523-07014 Ring, E(For Reverse Shift Arm) |
90523-07014 |
US $2.18 |
||
|
9099943100
|
9099943100
90999-43100 Jet, Power |
90999-43100 |
US $5.59 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9311913010
|
9311913010
93119-13010 New Genuine Part |
93119-13010 |
US $1.75 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9613231000
|
9613231000
96132-31000
Clip(For Ventilation Tube)
|
96132-31000 |
— | ||
| replacement | |||||
|
9613231000
|
9613231000
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
from US $1.48 |
||
