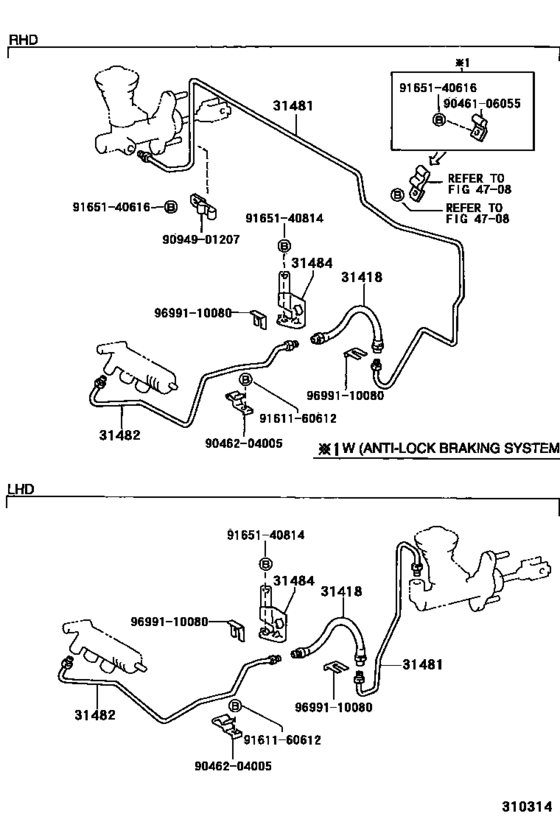

Clutch Pedal & Flexible Hose ([01.1996 - ] (9601- )MTM) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90931-01073 Hose, Clutch[01.1996 -] EP9#..MTM |
90931-01073 |
US $23.24 |
||
|
31481
|
31481
31481-16040
Tube, Clutch Master Cylinder To Flexible Hose
[01.1996 -] EP90..LHD..MTM |
31481-16040 |
— | ||
|
31482
|
31482
31482-10020
Tube, Clutch Release Cylinder To Flexible Hose
[01.1996 -] EP9#..MTM |
31482-10020 |
— | ||
|
31484
|
31484
31484-10040 Bracket, Flexible Hose(For Clutch)[01.1996 -] EP9#..MTM |
31484-10040 |
US $8.15 |
||
|
9046106055
|
9046106055
90461-06055 Clamp, Brake Tube, No.1 |
90461-06055 |
US $2.20 |
||
|
9046204005
|
9046204005
90462-04005 New Genuine Part |
90462-04005 |
US $3.93 |
||
|
9094901207
|
9094901207
90949-01207 Clamp, Brake Tube, No.6 |
90949-01207 |
US $4.22 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.19 |
||
