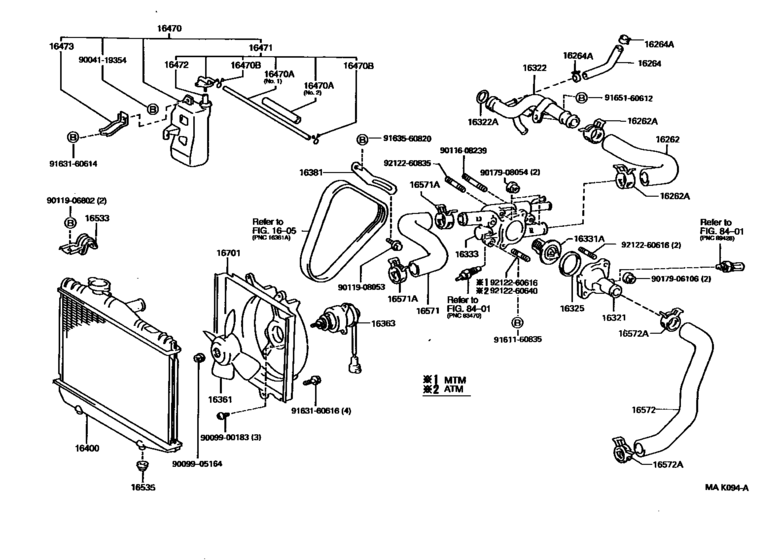

Radiator & Water Outlet ([01.1996 - ] (9601- )2E) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16262
|
16262
16262-10011 Hose, Water Inlet[01.1996 -] 2E,4EFE..EP9#..MTM |
16262-10011 |
from US $14.69 |
||
|
16262A
|
16262A
90467-34003
Clip(For Oil Return Hose)
[01.1996 -] 2E,4EFE..EP9# |
90467-34003 |
— | ||
| replacement | |||||
|
16262A
|
16262A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.1996 -] 2E,4EFE..EP9# |
90467-34004 |
from US $3.41 |
||
|
16264
|
16264
16265-11040 Hose, Water By-Pass, No.2[01.1996 -] 2E..EP90 |
16265-11040 |
US $11.01 |
||
|
16264A
|
16264A
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[01.1996 -] 2E..EP90 |
90467-13001 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[01.1996 -] 2E..EP90 |
96135-51300 |
from US $2.13 |
||
|
16321
|
16321
16321-10011 Inlet, Water[01.1996 - 07.1999] 2E,4EFE..EP9#..MTM |
16321-10011 |
US $35.64 |
||
|
16322
|
16322
16322-11081 Pipe, Water Inlet[01.1996 -] 2E..EP90 |
16322-11081 |
US $71.78 |
||
| replacement | |||||
|
16322
|
16322
16322-11091 Pipe, Water InletWATER INLET [01.1996 -] 2E..EP90 |
16322-11091 |
from US $38.69 |
||
|
16322A
|
16322A
96761-35028 Ring, O(For Water Outlet)[01.1996 -] 2E,4EFE..EP9# |
96761-35028 |
from US $3.14 |
||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[01.1996 - 07.1999] 2E,4EFE..EP9# |
16325-63011 |
from US $3.92 |
||
|
16331A
|
16331A
90916-03046 Thermostat[01.1996 - 07.1999] 2E,4EFE..EP9# *WAX 82-95 |
90916-03046 |
from US $22.27 |
||
|
16333
|
16333
16333-10011 Housing, Water Outlet[01.1996 -] 2E..EP90 |
16333-10011 |
US $69.24 |
||
|
16361
|
16361
16361-11010 Fan[01.1996 -] 2E..EP90 |
16361-11010 |
US $61.65 |
||
|
16363
|
16363
16363-11010 Motor, Cooling Fan[01.1996 -] 2E..EP90 |
16363-11010 |
US $299.94 |
||
|
16381
|
16381
16381-11021 Bar, Fan Belt Adjusting[01.1996 -] 2E..EP90 |
16381-11021 |
US $13.40 |
||
|
16400
|
16400
16400-11350
Radiator Assy
[01.1996 - 12.1997] 2E..EP90..MTM |
16400-11350 |
— | ||
|
16400
|
16400
16400-11850 Radiator Assy[12.1997 -] 2E..EP90..MTM |
16400-11850 |
US $474.66 |
||
|
16470
|
16470
16470-11110 Tank Assy, Radiator Reserve[01.1996 -] 2E,4EFE..EP9# |
16470-11110 |
US $40.88 |
||
|
16470A
|
16470A
16477-11110
Hose Or Pipe(For Radiator Reserve Tank)
[01.1996 -] 2E,4EFE..EP9# L=100,NO.2 |
16477-11110 |
— | ||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[01.1996 -] 2E,4EFE..EP9# *H,L=350,NO.1 |
90445-12078 |
from US $6.75 |
||
|
16470B
|
16470B
90466-11002
Clamp Or Clip(For Radiator Reserve Tank Hose)
[12.1997 -] 2E,4EFE..EP9# |
90466-11002 |
— | ||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[01.1996 - 12.1997] 2E,4EFE..EP9# |
90467-11085 |
from US $0.72 |
||
|
16471
|
16471
16405-11110
Cap Sub-Assy, Reserve Tank
[01.1996 -] 2E,4EFE..EP9# |
16405-11110 |
— | ||
|
16472
|
16472
90445-12078 Hose(For Radiator Breather)[01.1996 -] 2E,4EFE..EP9# *H,L=240 |
90445-12078 |
from US $6.75 |
||
|
16473
|
16473
16473-11110
Support(For Radiator Reserve Tank)
[01.1996 -] 2E,4EFE..EP9# |
16473-11110 |
— | ||
|
16533
|
16533
16505-11240
Support, Radiator, Upper
[01.1996 -] 2E,4EFE..EP9#..MTM |
16505-11240 |
— | ||
|
16535
|
16535
90480-23008 Support, Radiator, Lower[01.1996 -] 2E,4EFE..EP9#..MTM |
90480-23008 |
from US $3.40 |
||
|
16571
|
16571
16571-11250 Hose, Radiator, Inlet[01.1996 -] 2E,4EFE..EP9# |
16571-11250 |
US $27.22 |
||
|
16571A
|
16571A
90467-31003 Clip(For Ventilation Hose)[01.1996 -] 2E,4EFE..EP9# |
90467-31003 |
US $4.30 |
||
|
16572
|
16572
16572-11270
Hose, Radiator, Outlet
[01.1996 - 12.1997] 2E,4EFE..EP9#..MTM |
16572-11270 |
— | ||
| replacement | |||||
|
16572
|
16572
16572-11271 Hose, Radiator, Outlet[01.1996 - 12.1997] 2E,4EFE..EP9#..MTM |
16572-11271 |
US $30.74 |
||
|
16572
|
16572
16572-11271 Hose, Radiator, Outlet[12.1997 -] 2E,4EFE..EP9#..MTM |
16572-11271 |
US $30.74 |
||
|
16572A
|
16572A
90467-31003 Clip(For Ventilation Hose)[01.1996 -] 2E,4EFE..EP9# |
90467-31003 |
US $4.30 |
||
|
16701
|
16701
16711-11140 Shroud Sub-Assy, FanFAN [01.1996 -] 2E..EP90 |
16711-11140 |
US $96.10 |
||
|
9004119354
|
9004119354
90041-19354
BOLT
|
90041-19354 |
— | ||
|
9009900183
|
9009900183
90099-00183
New Genuine Part
|
90099-00183 |
— | ||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9011608239
|
9011608239
90116-08239 BOLT |
90116-08239 |
US $3.14 |
||
|
9011906802
|
9011906802
90119-06802 BOLT WWASHER |
90119-06802 |
US $1.08 |
||
|
9011908053
|
9011908053
90119-08053 New Genuine Part |
90119-08053 |
US $1.75 |
||
| replacement | |||||
|
9011908053
|
9011908053
91661-40825 New Genuine Part |
91661-40825 |
US $1.75 |
||
|
9017906106
|
9017906106
90179-06106 NUT |
90179-06106 |
US $2.15 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.79 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
|
9163160616
|
9163160616
91631-60616
BOLT WWASHER
|
91631-60616 |
— | ||
| replacement | |||||
|
9163160616
|
9163160616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
9163560820
|
9163560820
91635-60820 BOLTWWASHER |
91635-60820 |
US $1.75 |
||
| replacement | |||||
|
9163560820
|
9163560820
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.33 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
9212260616
|
9212260616
92122-60616 BOLT STUD |
92122-60616 |
US $1.79 |
||
|
9212260640
|
9212260640
92122-60640 New Genuine Part |
92122-60640 |
US $2.34 |
||
|
9212260835
|
9212260835
92122-60835 New Genuine Part |
92122-60835 |
US $1.93 |
||
