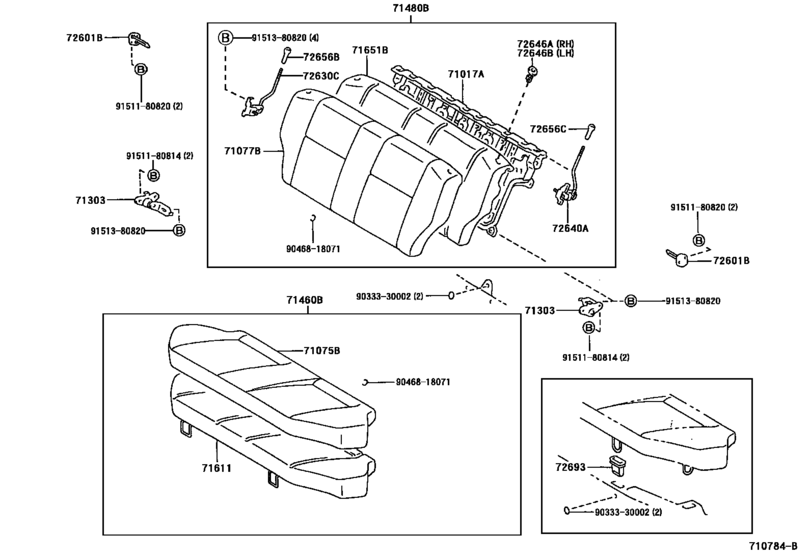

Rear Seat & Seat Track ([01.1996 - ] BENCH TYPE (9601- )EP90) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71017A
|
71017A
71017-10070 Frame Sub-Assy, Rear Seat Back[01.1996 - 12.1997] EP90 |
71017-10070 |
US $281.01 |
||
|
71017A
|
71017A
71017-10110 Frame Sub-Assy, Rear Seat Back[12.1997 -] EP90 |
71017-10110 |
US $318.86 |
||
|
71075B
|
71075B
71075-1C030-B0
Cover, Rear Seat Cushion (For Bench Type)
[01.1996 - 12.1997] EP90..5D..4F BLUISH GRAY,TRIM1# |
71075-1C030-B0 |
— | ||
| replacement | |||||
|
71075B
|
71075B
71075-1C030-B1
Cover, Rear Seat Cushion (For Bench Type)
[01.1996 - 12.1997] EP90..5D..4F BLUISH GRAY,TRIM1# |
71075-1C030-B1 |
— | ||
|
71075B
|
71075B
71075-1C030-B1
Cover, Rear Seat Cushion (For Bench Type)
[12.1997 - 07.1999] EP90..5D..4F BLUISH GRAY,TRIM1# |
71075-1C030-B1 |
— | ||
|
71077B
|
71077B
71077-1C850-B0 Cover, Rear Seat Back (For Bench Type)[01.1996 - 04.1997] EP90..4F BLUISH GRAY,TRIM1# |
71077-1C850-B0 |
US $347.98 |
||
|
71077B
|
71077B
71077-1C851-B0 Cover, Rear Seat Back (For Bench Type)[04.1997 - 12.1997] EP90..4F BLUISH GRAY,TRIM1# |
71077-1C851-B0 |
US $362.54 |
||
|
71077B
|
71077B
71077-1M160-B0
Cover, Rear Seat Back (For Bench Type)
[12.1997 - 07.1999] EP90..4F BLUISH GRAY,TRIM1# |
71077-1M160-B0 |
— | ||
|
71303
|
71303
71303-10040 Hinge Sub-Assy, Rear Seat Back[01.1996 - 12.1997] EP9# |
71303-10040 |
US $33.49 |
||
|
71303
|
71303
71303-10050 Hinge Sub-Assy, Rear Seat Back[12.1997 -] EP90 |
71303-10050 |
US $58.39 |
||
|
71460B
|
71460B
71560-10880-B0
Cushion Assy, Rear Seat (For Bench Type)
[01.1996 - 12.1997] EP90..5D..4F ***,BLUISH GRAY,TRIM1# |
71560-10880-B0 |
— | ||
| replacement | |||||
|
71460B
|
71460B
71560-10880-B1
Cushion Assy, Rear Seat (For Bench Type)
[01.1996 - 12.1997] EP90..5D..4F ***,BLUISH GRAY,TRIM1# |
71560-10880-B1 |
— | ||
|
71460B
|
71460B
71560-10880-B1
Cushion Assy, Rear Seat (For Bench Type)
[12.1997 - 07.1999] EP90..5D..4F ***,BLUISH GRAY,TRIM1# |
71560-10880-B1 |
— | ||
|
71480B
|
71480B
71480-1C830-B0
Back Assy, Rear Seat (For Bench Type)
[01.1996 - 12.1997] EP90..4F ***,BLUISH GRAY,TRIM1# |
71480-1C830-B0 |
— | ||
|
71480B
|
71480B
71480-1M180-B0
Back Assy, Rear Seat (For Bench Type)
[12.1997 - 07.1999] EP90..4F ***,BLUISH GRAY,TRIM1# |
71480-1M180-B0 |
— | ||
|
71611
|
71611
71503-10060 Pad, Rear Seat Cushion[01.1996 -] EP90..5D |
71503-10060 |
US $283.92 |
||
|
71651B
|
71651B
71651-10270 Pad, Rear Seat Back(For Bench Type)[01.1996 - 12.1997] EP90 |
71651-10270 |
US $313.04 |
||
|
71651B
|
71651B
71651-10300 Pad, Rear Seat Back(For Bench Type)[12.1997 -] EP90 |
71651-10300 |
US $311.58 |
||
|
72601B
|
72601B
72601-10030 Striker Sub-Assy, Rear Seat Back Lock[01.1996 - 12.1997] EP90 |
72601-10030 |
US $14.27 |
||
| replacement | |||||
|
72601B
|
72601B
72601-10050 Striker Sub-Assy, Rear Seat Back Lock[01.1996 - 12.1997] EP90 |
72601-10050 |
US $16.60 |
||
|
72601B
|
72601B
72601-10050 Striker Sub-Assy, Rear Seat Back Lock[12.1997 -] EP91;EP90..4F |
72601-10050 |
US $16.60 |
||
|
72630C
|
72630C
72630-10091 Lock Assy, Rear Seat Back, Rh[12.1997 -] EP91;EP90..4F |
72630-10091 |
US $38.44 |
||
|
72630C
|
72630C
72630-10100 Lock Assy, Rear Seat Back, Rh[01.1996 - 03.1997] EP90 |
72630-10100 |
US $15.58 |
||
|
72630C
|
72630C
72630-10101 Lock Assy, Rear Seat Back, Rh[03.1997 - 12.1997] EP90 |
72630-10101 |
US $15.58 |
||
|
72640A
|
72640A
72640-10081 Lock Assy, Rear Seat Back, Lh[12.1997 -] EP91;EP90..4F |
72640-10081 |
US $38.44 |
||
|
72640A
|
72640A
72640-10090 Lock Assy, Rear Seat Back, Lh[01.1996 - 03.1997] EP90 |
72640-10090 |
US $15.58 |
||
|
72640A
|
72640A
72640-10091 Lock Assy, Rear Seat Back, Lh[03.1997 - 12.1997] EP90 |
72640-10091 |
US $15.58 |
||
|
72646A
|
72646A
72646-10020-B1 Grommet, Rear Seat Back Stop Button[04.1997 - 07.1999] EP9# LT.BLUISH GRAY,TRIM1# |
72646-10020-B1 |
US $11.94 |
||
|
72646B
|
72646B
72646-10020-B1 Grommet, Rear Seat Back Stop Button[04.1997 - 07.1999] EP9# LT.BLUISH GRAY,TRIM1# |
72646-10020-B1 |
US $11.94 |
||
|
72656B
|
72656B
72656-20010-B2 Button, Rear Seat Back Stop Release[01.1996 - 07.1999] EP9# LT.BLUISH GRAY,TRIM1# |
72656-20010-B2 |
US $9.90 |
||
| replacement | |||||
|
72656B
|
72656B
72656-20010-C1
Button, Rear Seat Back Stop Release
[01.1996 - 07.1999] EP9# LT.BLUISH GRAY,TRIM1# |
72656-20010-C1 |
— | ||
|
72656C
|
72656C
72656-20010-B2 Button, Rear Seat Back Stop Release[01.1996 - 07.1999] EP9# LT.BLUISH GRAY,TRIM1# |
72656-20010-B2 |
US $9.90 |
||
| replacement | |||||
|
72656C
|
72656C
72656-20010-C1
Button, Rear Seat Back Stop Release
[01.1996 - 07.1999] EP9# LT.BLUISH GRAY,TRIM1# |
72656-20010-C1 |
— | ||
|
72693
|
72693
72693-10040 Hook, Rear Seat Cushion Lock[01.1996 -] EP90 |
72693-10040 |
US $3.67 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.07 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
|
9151180814
|
9151180814
91511-80814 New Genuine Part |
91511-80814 |
US $1.65 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.80 |
||
|
9151380820
|
9151380820
91513-80820
New Genuine Part
|
91513-80820 |
— | ||
| replacement | |||||
|
9151380820
|
9151380820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.80 |
||
