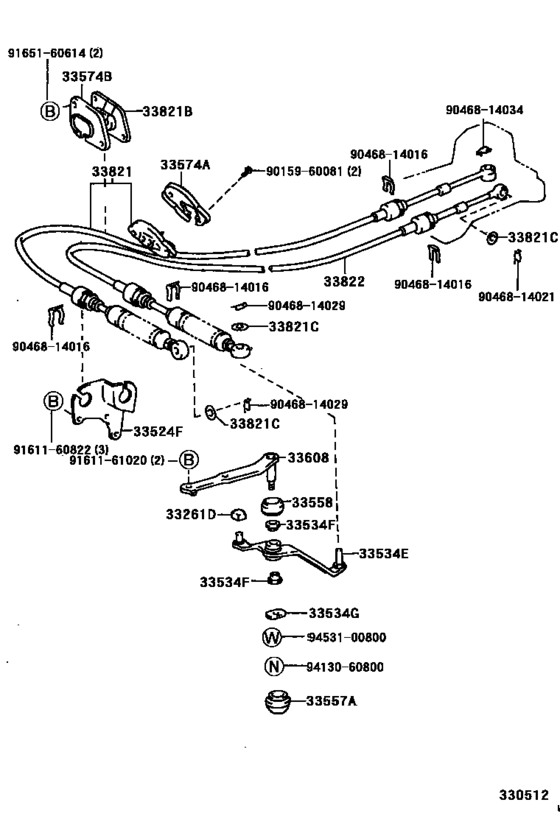

Shift Lever & Retainer ([01.1996 - ] (9601- )MTM) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33261D
|
33261D
33557-33010 Bush (For Shift & Select Lever)[01.1996 -] EP9#..MTM |
33557-33010 |
from US $8.06 |
||
|
33524F
|
33524F
33524-16040
Bracket, Control Lever Housing Support (For Floor Shift)
[01.1996 -] EP9#..MTM |
33524-16040 |
— | ||
|
33534E
|
33534E
33534-10060 Crank, Selecting Bell, No.2[01.1997 -] EP9#..MTM |
33534-10060 |
US $39.75 |
||
|
33534E
|
33534E
33534-16051
Crank, Selecting Bell, No.2
[01.1996 - 01.1997] EP9#..MTM |
33534-16051 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[01.1996 -] EP9#..MTM |
90386-12022 |
from US $2.16 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[01.1996 -] EP9#..MTM |
90201-08028 |
US $1.24 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[01.1996 -] EP9#..MTM |
33557-32010 |
from US $5.02 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[01.1996 -] EP9#..MTM |
33558-10030 |
US $4.12 |
||
|
33574A
|
33574A
33574-10020
Retainer, Shift Cable Grommet, No.1
[01.1996 -] EP9#..MTM; EP9#..3FC NIPPON CABLE |
33574-10020 |
— | ||
|
33574B
|
33574B
33574-10030
Retainer, Shift Cable Grommet, No.2
[01.1996 -] EP9# |
33574-10030 |
— | ||
|
33608
|
33608
33608-10032
Support Sub-Assy, Selecting Bellcrank
[01.1996 -] EP9#..MTM |
33608-10032 |
— | ||
|
33821
|
33821
33821-10310
Cable Transmission Control Shift (For Floor Shift)
[01.1996 -] EP9#..MTM |
33821-10310 |
— | ||
|
33821B
|
33821B
90480-01291
Grommet, No.2 (For Transmission Control Cable)
[01.1996 -] EP9#..MTM |
90480-01291 |
— | ||
|
33821C
|
33821C
90201-08023 Washer, Plate (For Transfer Control Cable)[01.1996 -] EP9#..MTM SHIFT LEVER SIDE |
90201-08023 |
US $0.73 |
||
|
33821C
|
33821C
90201-08267 Washer, Plate (For Transfer Control Cable)[01.1996 -] EP9#..MTM OD=28,TRANSAXLE SIDE |
90201-08267 |
from US $0.90 |
||
|
33822
|
33822
33822-10090
Cable Transmission Control Select (For Floor Shift)
[01.1996 -] EP9#..MTM |
33822-10090 |
— | ||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814021
|
9046814021
90468-14021 New Genuine Part |
90468-14021 |
US $1.79 |
||
|
9046814029
|
9046814029
90468-14029 CLIP |
90468-14029 |
US $1.10 |
||
|
9046814034
|
9046814034
90468-14034 New Genuine Part |
90468-14034 |
US $1.40 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.70 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.68 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.86 |
||
