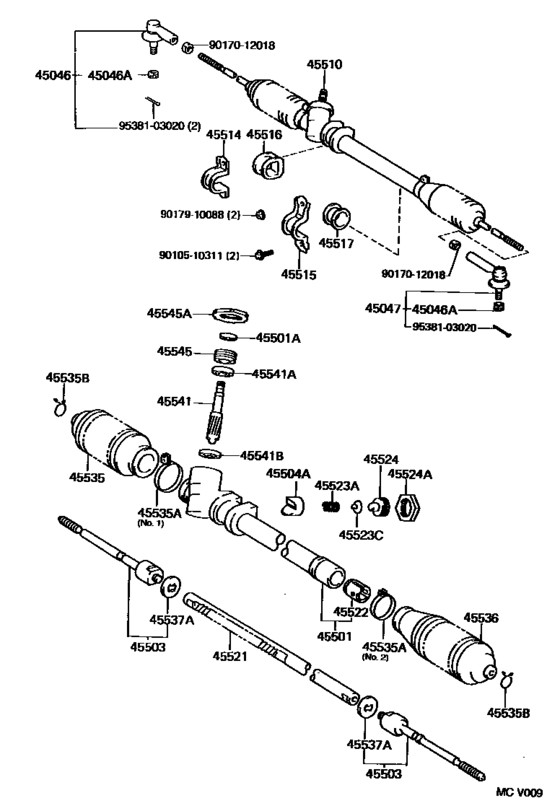

Front Steering Gear & Link ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-19206 End Sub-Assy, Tie Rod, Rh[01.1996 - 12.1997] EP9# |
45046-19206 |
from US $50.13 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[01.1996 -] EP9# |
90171-12028 |
from US $1.35 |
||
|
45047
|
45047
45046-19206 End Sub-Assy, Tie Rod, Rh[01.1996 - 12.1997] EP9# |
45046-19206 |
from US $50.13 |
||
|
45501
|
45501
45501-10140 Housing Sub-Assy, Steering Rack[01.1996 -] EP9#..RHD |
45501-10140 |
US $141.23 |
||
|
45501A
|
45501A
90311-15002 Seal, Oil(For Steering Bevel Gear Housing)[01.1996 -] EP9# |
90311-15002 |
from US $2.06 |
||
|
45503
|
45503
45503-19185 End Sub-Assy, Steering Rack[01.1996 - 07.1999] EP9#..RHD..(3FC,5F) W(POWER STEERING) |
45503-19185 |
US $46.40 |
||
|
45503
|
45503
45503-19195 End Sub-Assy, Steering Rack[01.1996 - 07.1999] EP9# |
45503-19195 |
US $74.95 |
||
|
45504A
|
45504A
45504-16060 Guide Sub-Assy, Rack[01.1996 - 12.1997] EP9# |
45504-16060 |
US $12.23 |
||
|
45510
|
45510
45510-10200 Gear Assy, Steering[01.1996 -] EP90..RHD |
45510-10200 |
US $640.64 |
||
|
45514
|
45514
45514-16050
Bracket, Steering Rack Housing, No.1
[01.1996 -] EP9# |
45514-16050 |
— | ||
|
45514
|
45514
45514-16060 Bracket, Steering Rack Housing, No.1[01.1996 - 07.1997] EP9#..3FC,5F W(POWER STEERING) |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45514
|
45514
45514-16061 Bracket, Steering Rack Housing, No.1[01.1996 - 07.1997] EP9#..3FC,5F W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45514
|
45514
45514-16061 Bracket, Steering Rack Housing, No.1[07.1997 -] EP9#..3FC,5F W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45514-16060 Bracket, Steering Rack Housing, No.1[01.1996 - 07.1997] EP9#..3FC,5F W(POWER STEERING) |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45515
|
45515
45514-16061 Bracket, Steering Rack Housing, No.1[01.1996 - 07.1997] EP9#..3FC,5F W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45514-16061 Bracket, Steering Rack Housing, No.1[07.1997 -] EP9#..3FC,5F W(POWER STEERING) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45515-10050
Bracket, Steering Rack Housing, No.2
[01.1996 -] EP9# |
45515-10050 |
— | ||
|
45516
|
45516
45516-16050
Grommet, Steering Rack Housing, No.1
[01.1996 -] EP9# |
45516-16050 |
— | ||
|
45516
|
45516
45516-16060 Grommet, Steering Rack Housing, No.1[01.1996 -] EP9#..3FC,5F W(POWER STEERING) |
45516-16060 |
from US $23.69 |
||
|
45517
|
45517
45517-10070 Grommet, Steering Rack Housing, No.2[01.1996 -] EP9#..3FC,5F W(POWER STEERING) |
45517-10070 |
from US $19.49 |
||
|
45517
|
45517
45517-10080 Grommet, Steering Rack Housing, No.2[01.1996 -] EP9# |
45517-10080 |
US $13.10 |
||
|
45521
|
45521
45521-10120 Rack, Steering[01.1996 -] EP90..RHD |
45521-10120 |
US $91.73 |
||
|
45522
|
45522
45522-10080 Bush, Steering Rack[01.1996 -] EP9# |
45522-10080 |
from US $6.64 |
||
|
45523A
|
45523A
90501-32032 Spring(For Steering Gear Rack Guide)[01.1996 -] EP9# |
90501-32032 |
US $3.35 |
||
|
45523C
|
45523C
45542-12010
Spacer(For Rack Guide)
[01.1996 -] EP9# |
45542-12010 |
— | ||
|
45524
|
45524
45524-16050 Cap, Steering Rack Guide Spring[01.1996 -] EP9# |
45524-16050 |
US $29.56 |
||
|
45524A
|
45524A
90179-30002 Nut(For Power Steering Rack Guide Cap)[01.1996 -] EP9# |
90179-30002 |
US $2.62 |
||
|
45535
|
45535
45535-10021 Boot, Steering Rack, No.1[01.1996 - 07.1999] EP9# |
45535-10021 |
US $25.68 |
||
|
45535
|
45535
45535-10060 Boot, Steering Rack, No.1[01.1996 - 07.1999] EP9#..RHD..(3FC,5F) W(POWER STEERING) |
45535-10060 |
US $18.17 |
||
|
45535A
|
45535A
90461-08718 Clamp(For Power Steering Rack Boot)[09.1996 - 12.1997] EP9#..RHD..(3FC,5F) W(POWER STEERING) |
90461-08718 |
US $4.68 |
||
|
45535A
|
45535A
90461-10273 Clamp(For Steering Rack Boot)[01.1996 -] EP9# NO.1,ID=41.5 |
90461-10273 |
from US $5.56 |
||
|
45535A
|
45535A
90461-10646 Clamp(For Steering Rack Boot)[01.1996 -] EP9# NO.2,ID=38.5 |
90461-10646 |
US $4.35 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[01.1996 -] EP9# |
90467-18003 |
from US $2.15 |
||
|
45536
|
45536
45535-10060 Boot, Steering Rack, No.1[01.1996 - 07.1999] EP9#..RHD..(3FC,5F) W(POWER STEERING) |
45535-10060 |
US $18.17 |
||
|
45536
|
45536
45536-10060 Boot, Steering Rack, No.2[01.1996 - 07.1999] EP9# |
45536-10060 |
US $26.38 |
||
|
45537A
|
45537A
90214-12002
Washer, Claw(For Power Steering Rack End)
[01.1996 - 12.1997] EP9# |
90214-12002 |
— | ||
|
45541
|
45541
45541-16051 Pinion, Steering[01.1996 -] EP9#..RHD |
45541-16051 |
US $52.85 |
||
|
45541A
|
45541A
90363-15015 Bearing, Radial Ball(For Steering Pinion Upper)[01.1996 -] EP9# |
90363-15015 |
US $10.48 |
||
|
45541B
|
45541B
90363-13004 Bearing, Radial Ball(For Steering Pinion Upper)[01.1996 -] EP9# |
90363-13004 |
from US $10.48 |
||
|
45545
|
45545
45545-10020 Screw, Pinion Bearing Adjusting[01.1996 -] EP9# |
45545-10020 |
US $14.56 |
||
|
45545A
|
45545A
90179-38001 Nut(For Pinion Bearing Adjusting Screw)[01.1996 -] EP9# |
90179-38001 |
US $8.21 |
||
|
9010510311
|
9010510311
90105-10311 New Genuine Part |
90105-10311 |
US $2.62 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $0.64 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.76 |
||
