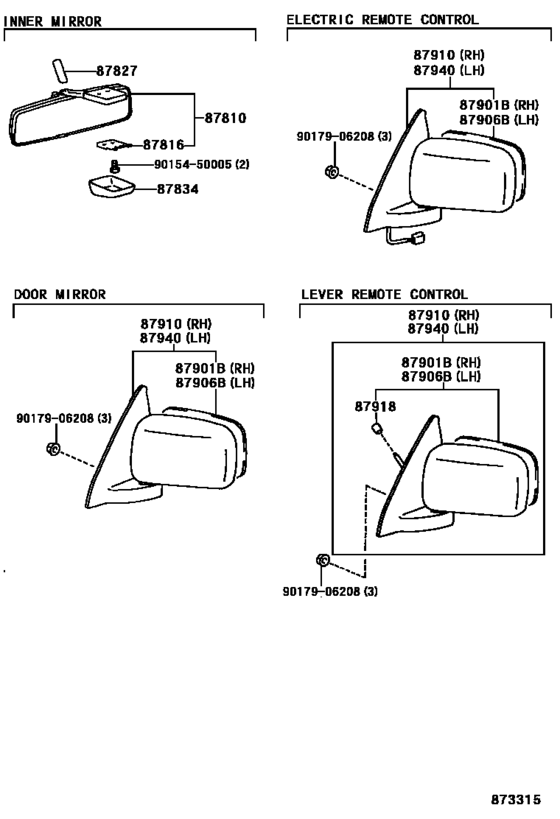

Mirror ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-10210-B1
Mirror Assy, Inner Rear View
[01.1996 - 07.1999] EP90..3FC,5F LT.BLUISH GRAY,TRIM1# |
87810-10210-B1 |
— | ||
| replacement | |||||
|
87810
|
87810
87810-10210-03
Mirror Assy, Inner Rear View
[01.1996 - 07.1999] EP90..3FC,5F LT.BLUISH GRAY,TRIM1# |
87810-10210-03 |
— | ||
|
87816
|
87816
74372-30030 Spring, Inner Rear View Mirror[01.1996 -] EP9# |
74372-30030 |
US $2.34 |
||
|
87827
|
87827
87828-22020
Absorber, Inner Rear View Mirror
[01.1996 -] EP9# |
87828-22020 |
— | ||
|
87834
|
87834
87834-10010-B0 Cover, Inner Rear View Mirror Stay Holder[01.1996 - 12.1997] EP9# LT.BLUISH GRAY,TRIM1# |
87834-10010-B0 |
US $3.32 |
||
|
87901B
|
87901B
87931-10690 Mirror Sub-Assy, Outer Rear View, Rh[01.1996 -] EP90 |
87931-10690 |
US $31.17 |
||
|
87906B
|
87906B
87961-10700 Mirror Sub-Assy, Outer Rear View, Lh[01.1996 -] EP9# |
87961-10700 |
US $31.17 |
||
|
87910
|
87910
87910-10690 Mirror Assy, Outer Rear View, Rh[01.1996 -] EP90..RHD |
87910-10690 |
US $170.35 |
||
|
87910
|
87910
87910-10750 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [01.1996 -] EP90..RHD..(3FC,5F) LEVER REMOTE CONTROL DOOR MIRROR |
87910-10750 |
US $189.28 |
||
|
87910
|
87910
87910-10790
Mirror Assy, Outer Rear View, Rh
[01.1996 -] EP90..RHD..(3FC,5F) ELECTRIC REMOTE CONTROL DOOR MIRROR |
87910-10790 |
— | ||
|
87918
|
87918
87918-10020
Knob, Control Outer Mirror
[01.1996 - 12.1997] EP9#..3FC,5F |
87918-10020 |
— | ||
|
87940
|
87940
87940-10700 Mirror Assy, Outer Rear View, Lh[01.1996 -] EP90..RHD..4F; EP90..RHD..(3FC,5F) DOOR MIRROR |
87940-10700 |
US $170.35 |
||
|
87940
|
87940
87940-10750 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [01.1996 -] EP91; EP90..RHD..(3FC,5F) LEVER REMOTE CONTROL DOOR MIRROR |
87940-10750 |
US $189.28 |
||
|
87940
|
87940
87940-10770
Mirror Assy, Outer Rear View, Lh
[01.1996 -] EP9#..RHD..(3FC,5F) ELECTRIC REMOTE CONTROL DOOR MIRROR |
87940-10770 |
— | ||
|
9015450005
|
9015450005
90154-50005 SCREW |
90154-50005 |
US $0.70 |
||
|
9017906208
|
9017906208
90179-06208 NUT |
90179-06208 |
US $1.25 |
||
