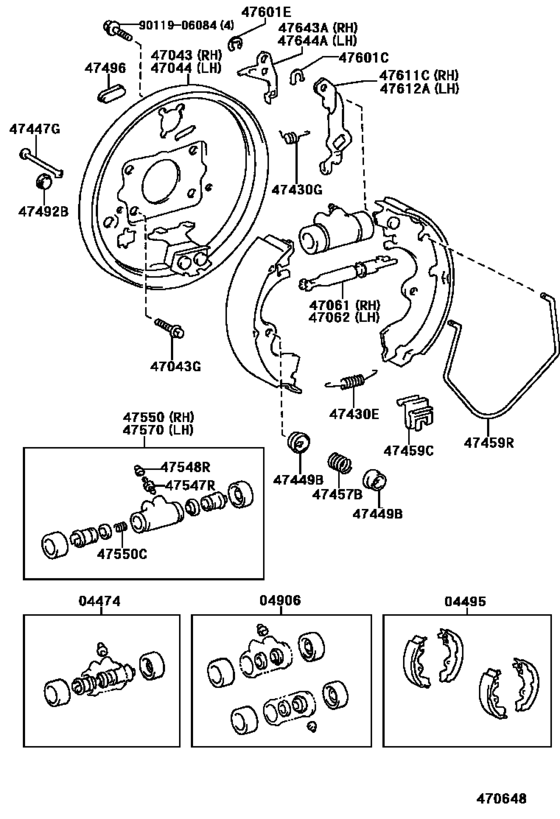

Rear Drum Brake Wheel Cylinder & Backing Plate ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-16020 Cylinder Kit, Rear Wheel[01.1996 -] EP9# |
04474-16020 |
US $26.03 |
||
|
04495
|
04495
04495-10120 Shoe Kit, Rear Brake[01.1996 -] EP9# |
04495-10120 |
US $75.71 |
||
|
04906
|
04906
04906-16020 Cup Kit, Rear Wheel Cylinder[01.1996 -] EP9# |
04906-16020 |
US $18.65 |
||
|
47043
|
47043
47043-10050
Plate Sub-Assy, Brake Backing, Rear Rh
[01.1996 -] EP9# |
47043-10050 |
— | ||
|
47043
|
47043
47043-10070
Plate Sub-Assy, Brake Backing, Rear Rh
[01.1996 -] EP9# W(ABS) |
47043-10070 |
— | ||
|
47043G
|
47043G
90119-10455 Bolt (For Backing Plate To Rear Axle Beam Setting)[01.1996 -] EP9# |
90119-10455 |
US $1.14 |
||
|
47044
|
47044
47044-10050
Plate Sub-Assy, Brake Backing, Rear Lh
[01.1996 -] EP9# |
47044-10050 |
— | ||
|
47044
|
47044
47044-10070
Plate Sub-Assy, Brake Backing, Rear Lh
[01.1996 -] EP9# W(ABS) |
47044-10070 |
— | ||
|
47061
|
47061
47061-10020 Strut Set, Parking Brake Shoe, Rh[01.1996 -] EP9# |
47061-10020 |
US $24.46 |
||
|
47062
|
47062
47062-10020
Strut Set, Parking Brake Shoe, Lh
[01.1996 -] EP9# |
47062-10020 |
— | ||
|
47430E
|
47430E
90506-18014
Spring, Tension(For Rear Brake Shoe Return)
[01.1996 -] EP9# |
90506-18014 |
— | ||
|
47430G
|
47430G
90507-12020
Spring, Tension(For Rear Brake Automatic Adjust Lever)
[01.1996 -] EP9# |
90507-12020 |
— | ||
|
47447G
|
47447G
47447-30020 Pin, Shoe Hold Down Spring(For Front Brake)[01.1996 -] EP9# |
47447-30020 |
from US $1.35 |
||
| replacement | |||||
|
47447G
|
47447G
47447300201
Pin Shoe Hold Down *
[01.1996 -] EP9# |
47447300201 |
— | ||
|
47449B
|
47449B
47449-30030 Cup, Brake Shoe Hold Down[01.1996 -] EP9# |
47449-30030 |
from US $1.44 |
||
|
47457B
|
47457B
90501-14086 Spring, Compression(For Rear Shoe Hold Down Spring Pin)[01.1996 -] EP9# |
90501-14086 |
US $1.14 |
||
|
47459C
|
47459C
90468-05063 Clamp(For Shoe Return Spring)[01.1996 -] EP9# |
90468-05063 |
US $3.32 |
||
|
47459R
|
47459R
47459-16020
Spring, Shoe Return(For Rear Brake)
[01.1996 -] EP9# |
47459-16020 |
— | ||
|
47492B
|
47492B
47492-32010 Plug, Shoe Inspection(For Rear Brake)[01.1996 -] EP9# |
47492-32010 |
from US $1.60 |
||
|
47496
|
47496
47491-20011 Plug, Hole(For Rear Brake)[01.1996 -] EP9# |
47491-20011 |
from US $2.07 |
||
|
47547R
|
47547R
47547-20010 Plug, Bleeder(For Release Cylinder)[01.1996 -] EP9# |
47547-20010 |
from US $3.58 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[01.1996 -] EP9# |
31478-30010 |
from US $1.52 |
||
|
47550
|
47550
47550-16060 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[01.1996 -] EP9# |
47550-16060 |
US $83.50 |
||
|
47550C
|
47550C
90501-07006 Spring, Compression(For Rear Wheel Brake Cylinder)[01.1996 -] EP9# |
90501-07006 |
US $2.62 |
||
| replacement | |||||
|
47550C
|
47550C
90029-60014 Spring, Compression(For Rear Wheel Brake Cylinder)[01.1996 -] EP9# |
90029-60014 |
US $1.60 |
||
|
47570
|
47570
47570-16040 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)[01.1996 -] EP9# |
47570-16040 |
US $83.50 |
||
|
47601C
|
47601C
90213-06013 Washer, Type C(For Parking Brake Shoe)[01.1996 -] EP9# T=1.2 |
90213-06013 |
from US $0.72 |
||
|
47601E
|
47601E
96160-00600 Ring, E(For Clutch Pedal Pawl)[01.1996 -] EP9# |
96160-00600 |
from US $0.84 |
||
|
47611C
|
47611C
47611-10030 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[01.1996 -] EP9# |
47611-10030 |
US $8.88 |
||
|
47612A
|
47612A
47612-10030 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)[01.1996 -] EP9# |
47612-10030 |
US $8.88 |
||
|
47643A
|
47643A
47643-10020
Lever, Rear Brake Automatic Adjust, Rh
[01.1996 -] EP9# |
47643-10020 |
— | ||
|
47644A
|
47644A
47644-10020
Lever, Rear Brake Automatic Adjust, Lh
[01.1996 -] EP9# |
47644-10020 |
— | ||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $0.99 |
||
