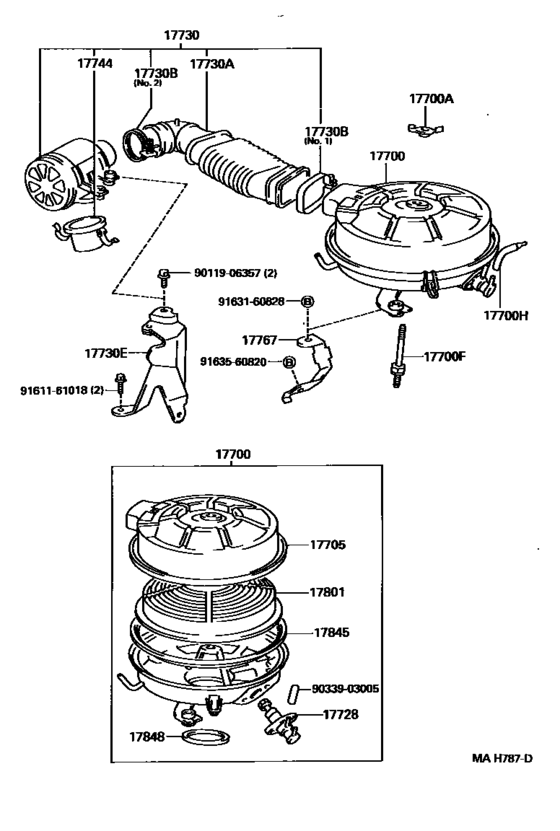

Air Cleaner ([01.1996 - ] CYCLON AIR CLEANER (9601- )2E) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 3FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-11610 Cleaner Assy, AirAIR [01.1996 -] 2E..EP90 W(HOT AIR INTAKE) |
17700-11610 |
US $407.68 |
||
|
17700
|
17700
17700-11810
Cleaner Assy, Air
[01.1996 -] 2E..EP90 |
17700-11810 |
— | ||
|
17700
|
17700
17700-11830 Cleaner Assy, AirAIR [01.1996 -] 2E..EP90 CYCLON TYPE |
17700-11830 |
US $270.82 |
||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[01.1996 -] 2E..EP90 |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[01.1996 -] 2E..EP90 |
90116-06142 |
US $2.53 |
||
|
17700H
|
17700H
17341-10010 Hose, No.1(For Air Injection System)[01.1996 -] 2E..EP90 |
17341-10010 |
US $12.06 |
||
|
17705
|
17705
17705-10060
Cap Sub-Assy, Air Cleaner
[01.1996 -] 2E..EP90 |
17705-10060 |
— | ||
|
17705
|
17705
17705-10080 Cap Sub-Assy, Air CleanerAIR CLEANER [01.1996 -] 2E..EP90 CYCLON TYPE |
17705-10080 |
US $56 |
||
|
17705
|
17705
17705-11470
Cap Sub-Assy, Air Cleaner
[01.1996 -] 2E..EP90 W(HOT AIR INTAKE) |
17705-11470 |
— | ||
|
17728
|
17728
17728-11080
Valve, Thermostatic
[01.1996 -] 2E..EP90 |
17728-11080 |
— | ||
|
17730
|
17730
17730-11031 Precleaner Assy, Air W/hose[01.1996 -] 2E..EP90 |
17730-11031 |
US $224.22 |
||
|
17730A
|
17730A
17881-11240
Hose, Precleaner
[01.1996 -] 2E..EP90 |
17881-11240 |
— | ||
|
17730B
|
17730B
90460-01023 Clamp(For Air Cleaner Hose, No.2)NO.2) [01.1996 -] 2E..EP90 NO.1 |
90460-01023 |
US $4.51 |
||
|
17730B
|
17730B
96111-10600 Clamp Or Clip, Hose(For Radiator Outlet No.1)[01.1996 -] 2E..EP90 NO.2 |
96111-10600 |
US $2.33 |
||
|
17730E
|
17730E
17741-11010 Bracket, Precleaner, No.1PRECLEANER, NO.1 [01.1996 -] 2E..EP90 |
17741-11010 |
US $60.72 |
||
|
17744
|
17744
17744-16010
Cup, Precleaner
[01.1996 -] 2E..EP90 |
17744-16010 |
— | ||
|
17767
|
17767
17771-11020
Bracket, Air Cleaner Inlet Duct
[01.1996 -] 2E..EP90 |
17771-11020 |
— | ||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[01.1996 -] 2E..EP90 |
17801-11100 |
from US $17.30 |
||
|
17845
|
17845
17845-10020
Gasket, Filter Element
[01.1996 -] 2E..EP90 |
17845-10020 |
— | ||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[01.1996 -] 2E..EP90 |
17848-10021 |
US $5.24 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.77 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.02 |
||
|
9163560820
|
9163560820
91635-60820 BOLTWWASHER |
91635-60820 |
US $1.75 |
||
| replacement | |||||
|
9163560820
|
9163560820
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.33 |
||
