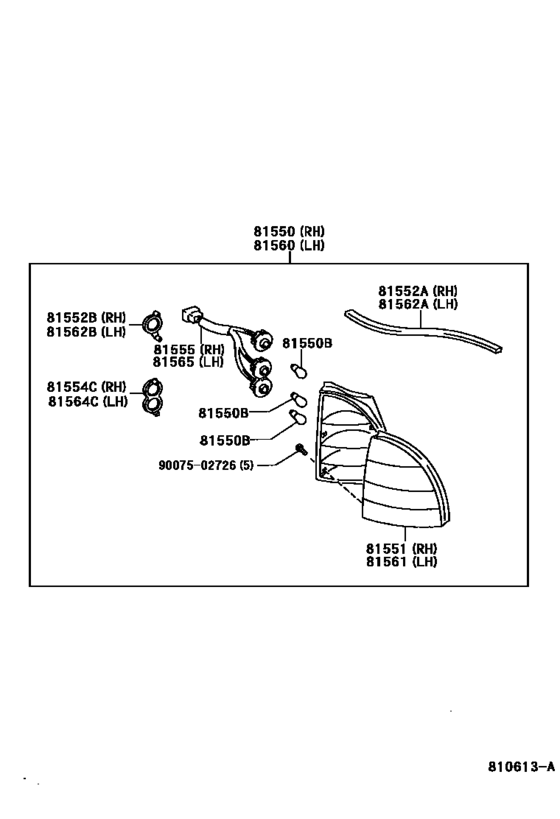

Rear Combination Lamp ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 3FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-10320 Lamp Assy, Rear Combination, Rh[01.1996 -] EP9# |
81550-10320 |
US $267.45 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[01.1996 -] EP9# 12V 21W |
99132-11210 |
from US $2.81 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[01.1996 -] EP9# 12V 21/5W |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-10320 Lens, Rear Combination Lamp, Rh[01.1996 -] EP9# |
81551-10320 |
US $85 |
||
|
81552A
|
81552A
81552-10340 Gasket, Rear Combination Lamp, Rh[01.1996 -] EP9# |
81552-10340 |
US $19.80 |
||
|
81552B
|
81552B
81552-10320
Packing, Rear Combination Lamp Body, Rh
[01.1996 -] EP9# |
81552-10320 |
— | ||
|
81554C
|
81554C
81554-10320
Packing, Rear Combination Lamp Body, Rh
[01.1996 -] EP9# |
81554-10320 |
— | ||
|
81555
|
81555
81555-10320 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[01.1996 -] EP9# |
81555-10320 |
US $33.20 |
||
|
81560
|
81560
81560-10300 Lamp Assy, Rear Combination, Lh[01.1996 -] EP9# |
81560-10300 |
US $265.17 |
||
|
81561
|
81561
81561-10300 Lens, Rear Combination Lamp, Lh[01.1996 -] EP9# |
81561-10300 |
US $85 |
||
|
81562A
|
81562A
81552-10340 Gasket, Rear Combination Lamp, Rh[01.1996 -] EP9# |
81552-10340 |
US $19.80 |
||
|
81562B
|
81562B
81552-10320
Packing, Rear Combination Lamp Body, Rh
[01.1996 -] EP9# |
81552-10320 |
— | ||
|
81564C
|
81564C
81554-10320
Packing, Rear Combination Lamp Body, Rh
[01.1996 -] EP9# |
81554-10320 |
— | ||
|
81565
|
81565
81565-10300 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[01.1996 -] EP9# |
81565-10300 |
US $33.20 |
||
|
9007502726
|
9007502726
90075-02726 New Genuine Part |
90075-02726 |
US $0.44 |
