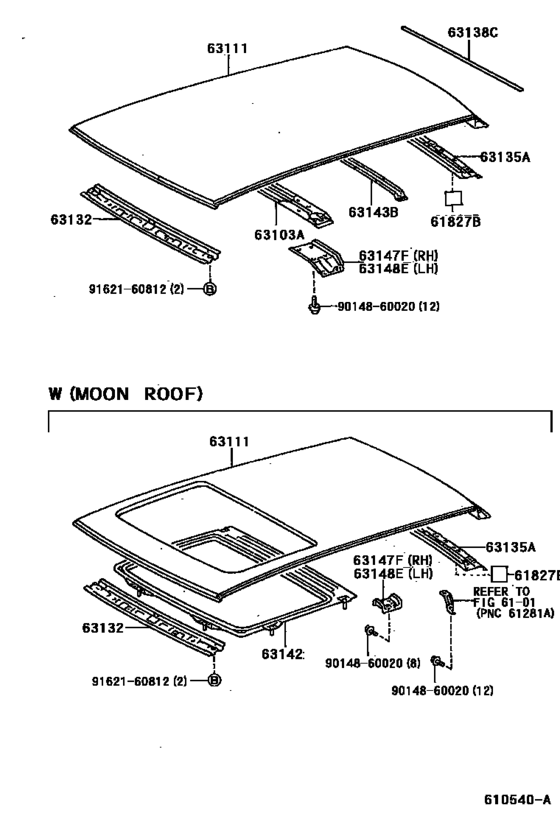

Roof Panel & Back Window Glass ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 3FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61827B
|
61827B
61815-32020 Cover, Roof Side, Inner Upper Rh[01.1999 -] EP9# |
61815-32020 |
US $10.19 |
||
|
61827B
|
61827B
61827-10010 Plate, Noise Control, No.4[01.1996 - 01.1999] EP9# |
61827-10010 |
US $8.59 |
||
|
63103A
|
63103A
63103-10040 Reinforcement Sub-Assy, Roof Panel[01.1996 -] EP9#..5D |
63103-10040 |
US $96.10 |
||
|
63111
|
63111
63111-10190 Panel, Roof[01.1996 -] EP9# |
63111-10190 |
US $413.50 |
||
|
63111
|
63111
63111-10210 Panel, Roof[01.1996 -] EP9#..3FC,5F W(MOON ROOF) |
63111-10210 |
US $413.50 |
||
|
63132
|
63132
63132-10100 Panel, Windshield Header, Inner[01.1996 -] EP9# |
63132-10100 |
US $56.64 |
||
|
63135A
|
63135A
63135-10040 Frame, Back Door Opening, Lower[01.1996 -] EP9# |
63135-10040 |
US $56.64 |
||
|
63138C
|
63138C
63138-10010 Seal, Back Door Opening, Upper[02.1996 -] EP9# |
63138-10010 |
US $3.93 |
||
|
63142
|
63142
63142-10030 Reinforcement, Roof Panel, No.2[01.1996 -] EP9#..3FC,5F |
63142-10030 |
US $151.42 |
||
|
63143B
|
63143B
63143-10040 Reinforcement, Roof Panel, No.3[01.1996 -] EP9# |
63143-10040 |
US $48.19 |
||
|
63147F
|
63147F
63147-10010 Bracket, Roof Panel Reinforcement, Rh[01.1996 -] EP9# |
63147-10010 |
US $29.70 |
||
|
63147F
|
63147F
63147-10030 Bracket, Roof Panel Reinforcement, Rh[01.1996 -] EP9#..3FC,5F W(MOON ROOF) |
63147-10030 |
US $13.40 |
||
|
63148E
|
63148E
63147-10030 Bracket, Roof Panel Reinforcement, Rh[01.1996 -] EP9#..3FC,5F W(MOON ROOF) |
63147-10030 |
US $13.40 |
||
|
63148E
|
63148E
63148-10020 Bracket, Roof Panel Reinforcement, Lh[01.1996 -] EP9# |
63148-10020 |
US $29.27 |
||
|
9014860020
|
9014860020
90148-60020 Screw Hex Lobular |
90148-60020 |
US $0.87 |
||
|
9162160812
|
9162160812
91621-60812
BOLTWWASHER
|
91621-60812 |
— | ||
| replacement | |||||
|
9162160812
|
9162160812
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
