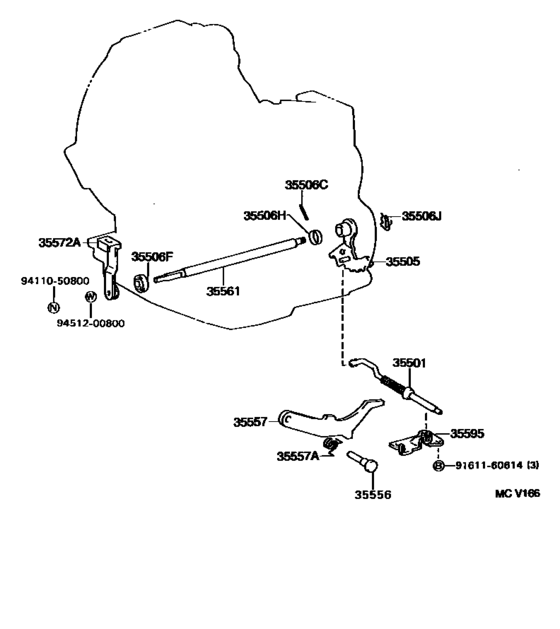

Throttle Link & Valve Lever (Atm) ([01.1996 - ] A132L (9601- )3FC) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 3FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-32030 Rod Sub-Assy, Parking Lock[01.1996 - 07.1999] EP9#..3FC |
35501-32030 |
US $19.66 |
||
|
35505
|
35505
35505-32030 Lever Sub-Assy, Manual Valve[01.1996 - 07.1999] EP9#..3FC |
35505-32030 |
US $20.53 |
||
|
35506C
|
35506C
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[01.1996 - 07.1999] EP9#..3FC |
90254-04011 |
US $1.40 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[01.1996 - 07.1999] EP9#..3FC |
90311-12002 |
from US $4.04 |
||
|
35506H
|
35506H
90560-20006 Spacer (For Manual Valve Lever)[01.1996 - 07.1999] EP9#..3FC |
90560-20006 |
from US $2.77 |
||
|
35506J
|
35506J
90524-09001 Spring, Retainer (For Manual Valve Lever Shaft)[01.1996 - 07.1999] EP9#..3FC |
90524-09001 |
US $1.89 |
||
|
35556
|
35556
35556-32010 Shaft, Parking Lock Pawl[01.1996 - 07.1999] EP9#..3FC |
35556-32010 |
US $8.15 |
||
|
35557
|
35557
35557-32020 Pawl, Parking Lock[01.1996 - 07.1999] EP9#..3FC |
35557-32020 |
US $37.71 |
||
|
35557A
|
35557A
90508-26047 Spring, Torsion (For Parking Lock Pawl)[01.1996 - 07.1999] EP9#..3FC |
90508-26047 |
US $3.20 |
||
|
35561
|
35561
35561-32010 Shaft Sub-Assy, Manual Valve Lever[01.1996 - 07.1999] EP9#..3FC |
35561-32010 |
US $28.54 |
||
|
35572A
|
35572A
35572-16020 Lever, Transmission Control Shaft[01.1996 - 07.1999] EP9#..3FC |
35572-16020 |
US $13.69 |
||
|
35595
|
35595
35595-32010 Bracket, Parking Lock Pawl[01.1996 - 07.1999] EP9#..3FC |
35595-32010 |
US $9.90 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
