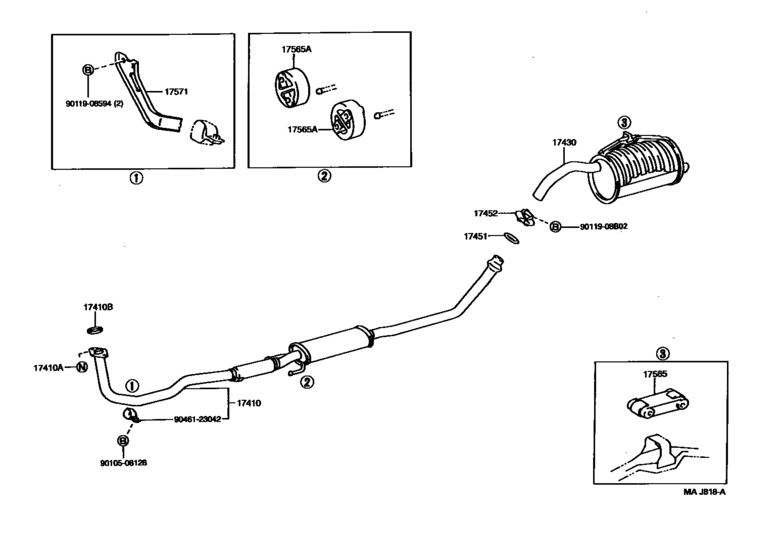

Exhaust Pipe ([01.1996 - ] (9601- )2E) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-1B070 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [01.1996 -] 2E..EP90 |
17410-1B070 |
US $570.75 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[01.1996 -] 2E..EP90 |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[01.1996 -] 2E..EP90 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06061 Gasket, Exhaust Pipe[01.1996 -] 2E..EP90 |
90917-06061 |
from US $4.93 |
||
|
17430
|
17430
17430-11891 Pipe Assy, Exhaust, Tail[07.1997 - 12.1997] 2E,4EFE..EP9# |
17430-11891 |
US $356.72 |
||
| replacement | |||||
|
17430
|
17430
17430-1B041 Pipe Assy, Exhaust, TailEXHAUST, TAIL [07.1997 - 12.1997] 2E,4EFE..EP9# |
17430-1B041 |
US $356.72 |
||
|
17430
|
17430
17430-1B060 Pipe Assy, Exhaust, Tail[12.1997 -] 2E,4EFE..EP9# |
17430-1B060 |
US $356.72 |
||
| replacement | |||||
|
17430
|
17430
17430-1B041 Pipe Assy, Exhaust, TailEXHAUST, TAIL [12.1997 -] 2E,4EFE..EP9# |
17430-1B041 |
US $356.72 |
||
|
17430
|
17430
17430-55080 Pipe Assy, Exhaust, Tail[01.1996 - 07.1997] 2E..EP90 |
17430-55080 |
US $355.26 |
||
| replacement | |||||
|
17430
|
17430
17430-1B041 Pipe Assy, Exhaust, TailEXHAUST, TAIL [01.1996 - 07.1997] 2E..EP90 |
17430-1B041 |
US $356.72 |
||
|
17451
|
17451
90917-06081 Gasket, Exhaust Pipe, Center[01.1996 -] 2E,4EFE..EP9# |
90917-06081 |
US $10.39 |
||
|
17452
|
17452
90461-16066
Clamp, Exhaust Pipe
[01.1996 -] 2E,4EFE..EP9# |
90461-16066 |
— | ||
| replacement | |||||
|
17452
|
17452
90461-15015 Clamp, Exhaust Pipe[01.1996 -] 2E,4EFE..EP9# |
90461-15015 |
US $36.29 |
||
|
17565
|
17565
17566-11150 Support, Exhaust Pipe, No.5[01.1996 -] 2E,4EFE..EP9# |
17566-11150 |
from US $16.65 |
||
|
17565A
|
17565A
17565-55050 Support, Exhaust Pipe, No.1[01.1996 -] 2E..EP90 |
17565-55050 |
from US $9.83 |
||
|
17571
|
17571
17571-10010 Bracket, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [01.1996 -] 2E..EP90 |
17571-10010 |
US $27.23 |
||
|
9011908B02
|
9011908B02
90119-08B02 BOLT WWASHER |
90119-08B02 |
from US $0.92 |
||
|
9010508128
|
9010508128
90105-08128
Bolt (For Front Oil Pump Setting)
|
90105-08128 |
— | ||
| replacement | |||||
|
9010508128
|
9010508128
91511-K0840 Bolt(For Crankshaft Bearing Cap Set) |
91511-K0840 |
US $3.05 |
||
|
9011908594
|
9011908594
90119-08594 BOLT |
90119-08594 |
from US $1.61 |
||
|
9046123042
|
9046123042
90461-23042 New Genuine Part |
90461-23042 |
US $11.36 |
||
