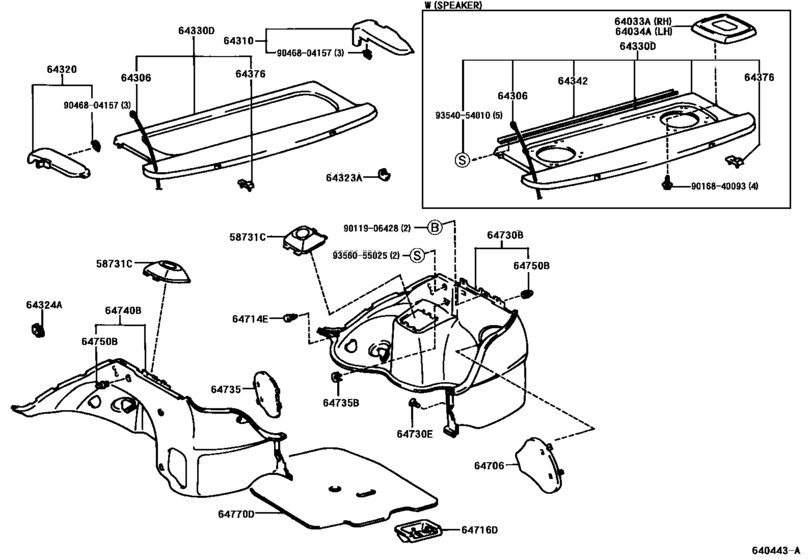

Deck Board & Deck Trim Cover ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58731C
|
58731C
58731-10040-B0
Cap, Rear Absorber
[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
58731-10040-B0 |
— | ||
| replacement | |||||
|
58731C
|
58731C
58731-10040-B2 Cap, Rear Absorber[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
58731-10040-B2 |
US $12.73 |
||
|
58731C
|
58731C
58731-10040-B1 Cap, Rear Absorber[01.1996 - 12.1997] EP9# LT.BLUISH GRAY,TRIM10 |
58731-10040-B1 |
US $13.54 |
||
| replacement | |||||
|
58731C
|
58731C
58731-10040-B2 Cap, Rear Absorber[01.1996 - 12.1997] EP9# LT.BLUISH GRAY,TRIM10 |
58731-10040-B2 |
US $12.73 |
||
|
64033A
|
64033A
64383-16040-B0 Grille Sub-Assy, Rear Speaker, Rh[12.1997 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
64383-16040-B0 |
US $15.29 |
||
| replacement | |||||
|
64033A
|
64033A
64383-16040-B1
Grille Sub-Assy, Rear Speaker, Rh
[12.1997 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
64383-16040-B1 |
— | ||
|
64034A
|
64034A
64383-16040-B0 Grille Sub-Assy, Rear Speaker, Rh[12.1997 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
64383-16040-B0 |
US $15.29 |
||
| replacement | |||||
|
64034A
|
64034A
64383-16040-B1
Grille Sub-Assy, Rear Speaker, Rh
[12.1997 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
64383-16040-B1 |
— | ||
|
64306
|
64306
64306-10060 Suspender Sub-Assy, Package Tray Trim[01.1996 -] EP9# |
64306-10060 |
US $6.70 |
||
|
64310
|
64310
64310-10140-B0
Bracket, Package Tray Trim, Rh
[01.1996 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
64310-10140-B0 |
— | ||
|
64320
|
64320
64320-10140-B0
Bracket, Package Tray Trim, Lh
[01.1996 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
64320-10140-B0 |
— | ||
|
64323A
|
64323A
64323-10040-C0 Clamp, Package Tray Trim, Rh[01.1996 - 07.1999] EP9# BLACK,TRIM1# |
64323-10040-C0 |
US $9.43 |
||
|
64324A
|
64324A
64324-10040-C0 Clamp, Package Tray Trim, Lh[01.1996 - 07.1999] EP9# BLACK,TRIM1# |
64324-10040-C0 |
US $9.43 |
||
|
64330D
|
64330D
64303-10180-B0 Panel Assy, Package Tray Trim[01.1996 - 09.1996] EP90 BLUISH GRAY,TRIM1# |
64303-10180-B0 |
US $151.42 |
||
| replacement | |||||
|
64330D
|
64330D
64303-10181-B0 Panel Assy, Package Tray Trim[01.1996 - 09.1996] EP90 BLUISH GRAY,TRIM1# |
64303-10181-B0 |
US $151.42 |
||
|
64330D
|
64330D
64303-10181-B0 Panel Assy, Package Tray Trim[09.1996 - 07.1999] EP90 BLUISH GRAY,TRIM1# |
64303-10181-B0 |
US $151.42 |
||
|
64330D
|
64330D
64303-10190-B0 Panel Assy, Package Tray Trim[01.1996 - 09.1996] EP91 BLUISH GRAY,TRIM1#; EP90..RHD;EP90..LHD..(3FC,5F) W(HIGH MOUNT STOP LAMP),BLUISH GRAY,TRIM1# |
64303-10190-B0 |
US $149.97 |
||
| replacement | |||||
|
64330D
|
64330D
64303-10191-B0 Panel Assy, Package Tray Trim[01.1996 - 09.1996] EP91 BLUISH GRAY,TRIM1#; EP90..RHD;EP90..LHD..(3FC,5F) W(HIGH MOUNT STOP LAMP),BLUISH GRAY,TRIM1# |
64303-10191-B0 |
US $149.97 |
||
|
64330D
|
64330D
64303-10191-B0 Panel Assy, Package Tray Trim[09.1996 - 07.1999] EP9#..RHD;EP90..LHD..(3FC,5F) W(HIGH MOUNT STOP LAMP),BLUISH GRAY,TRIM1# |
64303-10191-B0 |
US $149.97 |
||
|
64330D
|
64330D
64330-10251-B0 Panel Assy, Package Tray Trim[12.1997 - 07.1999] EP90 W(SPEAKER),BLUISH GRAY,TRIM1# |
64330-10251-B0 |
US $180.54 |
||
|
64330D
|
64330D
64330-10261-B0 Panel Assy, Package Tray Trim[12.1997 - 07.1999] EP9#..RHD;EP90..LHD..(3FC,5F) W(HIGH MOUNT STOP LANP & SPEAKER),BLUISH GRAY,TRIM1# |
64330-10261-B0 |
US $180.54 |
||
|
64342
|
64342
64342-16010 Cover, Package Tray Trim, Under[12.1997 -] EP9# |
64342-16010 |
US $22.13 |
||
|
64376
|
64376
64376-10040 Spacer, Package Tray Trim, No.2[01.1996 - 09.1997] EP9# |
64376-10040 |
US $6.70 |
||
|
64376
|
64376
64376-10050 Spacer, Package Tray Trim, No.2[09.1997 -] EP9# |
64376-10050 |
US $6.70 |
||
|
64706
|
64706
64766-10030-B0 Cover Sub-Assy, Quarter Trim, Jack[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
64766-10030-B0 |
US $49.07 |
||
| replacement | |||||
|
64706
|
64706
64766-10030-B1 Cover Sub-Assy, Quarter Trim, Jack[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
64766-10030-B1 |
US $49.07 |
||
|
64706
|
64706
64766-10030-B1 Cover Sub-Assy, Quarter Trim, Jack[01.1996 - 12.1997] EP9# LT.BLUISH GRAY,TRIM10 |
64766-10030-B1 |
US $49.07 |
||
|
64714E
|
64714E
90467-06055-B2 Clip(For Deck Trim Side Cover)[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
90467-06055-B2 |
US $1.31 |
||
|
64714E
|
64714E
90467-06055-B3
Clip(For Deck Trim Side Cover)
[01.1996 - 12.1997] EP9# LT.BLUISH GRAY,TRIM10 |
90467-06055-B3 |
— | ||
|
64716D
|
64716D
64716-10080-C0
Cover, Luggage Compartment, Rear Center
[01.1996 - 07.1999] EP9# BLACK,TRIM1# |
64716-10080-C0 |
— | ||
|
64730B
|
64730B
64730-10130-B0 Panel Assy, Deck Trim Side, Rh[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
64730-10130-B0 |
US $198.02 |
||
| replacement | |||||
|
64730B
|
64730B
64730-10130-B1 Panel Assy, Deck Trim Side, Rh[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
64730-10130-B1 |
US $198.02 |
||
|
64730B
|
64730B
64730-10130-B1 Panel Assy, Deck Trim Side, Rh[01.1996 - 12.1997] EP9# LT.BLUISH GRAY,TRIM10 |
64730-10130-B1 |
US $198.02 |
||
|
64730B
|
64730B
64730-10140-B0 Panel Assy, Deck Trim Side, Rh[12.1997 - 07.1999] EP9#..3FC,5F W(SPEAKER),BLUISH GRAY,TRIM1# |
64730-10140-B0 |
US $198.02 |
||
|
64730B
|
64730B
64730-10140-B1 Panel Assy, Deck Trim Side, Rh[12.1997 - 07.1999] EP9# W(SPEAKER),LT.BLUISH GRAY,TRIM1# |
64730-10140-B1 |
US $198.02 |
||
|
64730E
|
64730E
90467-06017-B0 Clip, Rear Floor Mat Set[12.1997 - 07.1999] EP9#..3FC,5F GRAY,TRIM1# |
90467-06017-B0 |
US $2.15 |
||
|
64730E
|
64730E
90467-06017-B2 Clip(For Deck Trim Side Board)[01.1996 - 12.1997] EP9# LT.BLUISH GRAY,TRIM10 |
90467-06017-B2 |
US $0.84 |
||
|
64730E
|
64730E
90467-06017-P0 Clip(For Deck Trim Side Cover)[01.1999 - 07.1999] EP9# SHADOW GRAY,TRIM1# |
90467-06017-P0 |
US $0.96 |
||
| replacement | |||||
|
64730E
|
64730E
90467-06017-B7 Clip(For Deck Trim Side Cover)[01.1999 - 07.1999] EP9# SHADOW GRAY,TRIM1# |
90467-06017-B7 |
US $2.15 |
||
|
64735
|
64735
64735-10010-B0 Cover, Deck Trim Side Service Hole[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
64735-10010-B0 |
US $42.37 |
||
| replacement | |||||
|
64735
|
64735
64735-10010-B1 Cover, Deck Trim Side Service Hole[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
64735-10010-B1 |
US $42.37 |
||
|
64735
|
64735
64735-10010-B1 Cover, Deck Trim Side Service Hole[01.1996 - 12.1997] EP9# LT.BLUISH GRAY,TRIM10 |
64735-10010-B1 |
US $42.37 |
||
|
64735B
|
64735B
64735-16010-B0
Cover, Deck Trim Side Service Hole
[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
64735-16010-B0 |
— | ||
| replacement | |||||
|
64735B
|
64735B
64735-16010-B1
Stopper, Deck Trim Side Service Hole Cover
[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
64735-16010-B1 |
— | ||
|
64735B
|
64735B
64735-16010-B1
Stopper, Deck Trim Side Service Hole Cover
[12.1997 - 07.1999] EP9# LT.BLUISH GRAY,TRIM1# |
64735-16010-B1 |
— | ||
|
64740B
|
64740B
64740-10020-B0 Board, Deck Trim Side, Lh[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
64740-10020-B0 |
US $198.02 |
||
| replacement | |||||
|
64740B
|
64740B
64740-10020-B1 Board, Deck Trim Side, Lh[12.1997 - 07.1999] EP9#..3FC,5F BLUISH GRAY,TRIM1# |
64740-10020-B1 |
US $198.02 |
||
|
64740B
|
64740B
64740-10020-B1 Board, Deck Trim Side, Lh[01.1996 - 12.1997] EP9# LT.BLUISH GRAY,TRIM10 |
64740-10020-B1 |
US $198.02 |
||
|
64750B
|
64750B
67771-30070 Retainer(For Deck Side Trim Panel)[01.1996 -] EP9# |
67771-30070 |
US $3.40 |
||
|
64770D
|
64770D
64770-10081
Cover Assy, Spare Wheel
[01.1996 -] EP9# |
64770-10081 |
— | ||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.43 |
||
|
9016840093
|
9016840093
90168-40093 SCREW TAPPING |
90168-40093 |
US $0.51 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
US $1.43 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $2.15 |
||
|
9356055025
|
9356055025
93560-55025 New Genuine Part |
93560-55025 |
US $1.97 |
||
