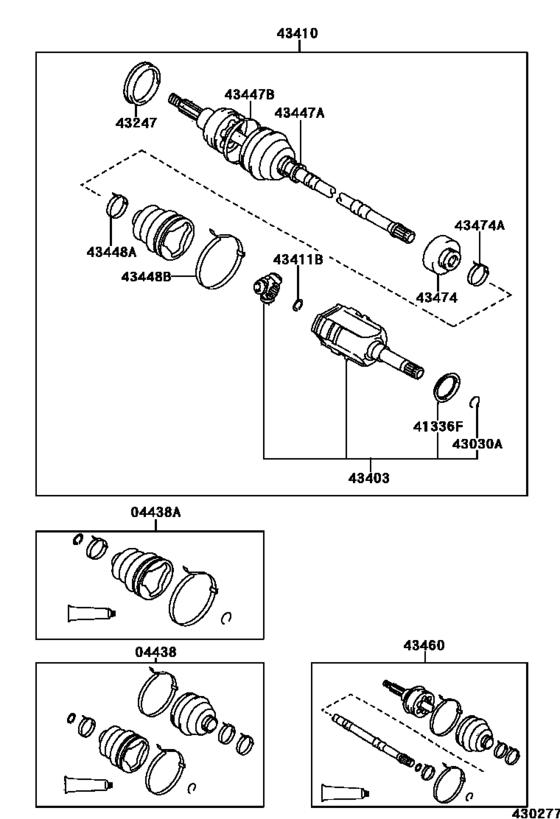

Front Drive Shaft ([01.1996 - ] RH (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438
|
04438
04438-16040
Boot Kit, Front Drive Shaft
[01.1996 - 07.1999] EP9# |
04438-16040 |
— | ||
| replacement | |||||
|
04438
|
04438
04428-16010
Boot Kit, Front Drive Shaft
[01.1996 - 07.1999] EP9# |
04428-16010 |
— | ||
|
04438A
|
04438A
04438-16070 Boot Kit, Front Drive Shaft Inboard Joint[01.1996 -] EP9# |
04438-16070 |
US $90.27 |
||
| replacement | |||||
|
04438A
|
04438A
04438-16150 Boot Kit, Front Drive Shaft Inboard Joint, Rh[01.1996 -] EP9# |
04438-16150 |
US $90.27 |
||
|
41336F
|
41336F
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[01.1996 -] EP9# |
41336-12010 |
from US $1.46 |
||
|
43030A
|
43030A
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[01.1996 -] EP9# |
90521-26004 |
from US $1.79 |
||
|
43247
|
43247
43247-16040
Deflector, Front Wheel Bearing Dust, No.2
[01.1996 -] EP9# |
43247-16040 |
— | ||
|
43403
|
43403
43403-10010
Joint Set, Front Axle Inboard
[01.1996 - 07.1999] EP9# |
43403-10010 |
— | ||
| replacement | |||||
|
43403
|
43403
43403-10011
Joint Assy, Front Drive Inboard
[01.1996 - 07.1999] EP9# |
43403-10011 |
— | ||
|
43410
|
43410
43410-10091 Shaft Assy, Front Drive, Rh[01.1996 -] EP9# |
43410-10091 |
US $1,078.90 |
||
| replacement | |||||
|
43410
|
43410
43410-10270 Shaft Assy, Front Drive, Rh[01.1996 -] EP9# |
43410-10270 |
US $1,074.53 |
||
|
43410
|
43410
43410-10101 Shaft Assy, Front Drive, Rh[01.1996 -] EP9# W(ABS) |
43410-10101 |
US $1,078.90 |
||
| replacement | |||||
|
43410
|
43410
43410-10280 Shaft Assy, Front Drive, Rh[01.1996 -] EP9# W(ABS) |
43410-10280 |
US $1,074.53 |
||
|
43411B
|
43411B
90520-22001 Ring, Shaft Snap (For Front Drive Inner Shaft Inner)[01.1996 -] EP9# |
90520-22001 |
US $1.02 |
||
|
43447A
|
43447A
42345-16010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[01.1996 -] EP9# |
42345-16010 |
US $1.88 |
||
|
43447B
|
43447B
42345-16020 Clamp (For Rear Drive Shaft Outboard Joint Boot)[01.1996 -] EP9# |
42345-16020 |
US $3.79 |
||
|
43448A
|
43448A
42345-16010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[01.1996 -] EP9# |
42345-16010 |
US $1.88 |
||
|
43448B
|
43448B
42345-16080 Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)[01.1996 -] EP9# |
42345-16080 |
US $6.70 |
||
|
43460
|
43460
43460-19436 Shaft Assy, Front Drive Outboard Joint, Rh[01.1996 -] EP9# |
43460-19436 |
US $646.46 |
||
| replacement | |||||
|
43460
|
43460
43460-80100 Shaft Assy, Front Drive Outboard Joint, Rh[01.1996 -] EP9# |
43460-80100 |
US $646.46 |
||
|
43460
|
43460
43460-19446 Shaft Assy, Front Drive Outboard Joint, Rh[01.1996 -] EP9# W(ABS) |
43460-19446 |
US $679.95 |
||
| replacement | |||||
|
43460
|
43460
43460-80101 Shaft Assy, Front Drive Outboard Joint, Rh[01.1996 -] EP9# W(ABS) |
43460-80101 |
US $679.95 |
||
|
43474
|
43474
43474-10010 Damper, Drive Shaft[01.1996 -] EP9# |
43474-10010 |
US $60.13 |
||
|
43474A
|
43474A
42345-16010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[01.1996 -] EP9# |
42345-16010 |
US $1.88 |
||
