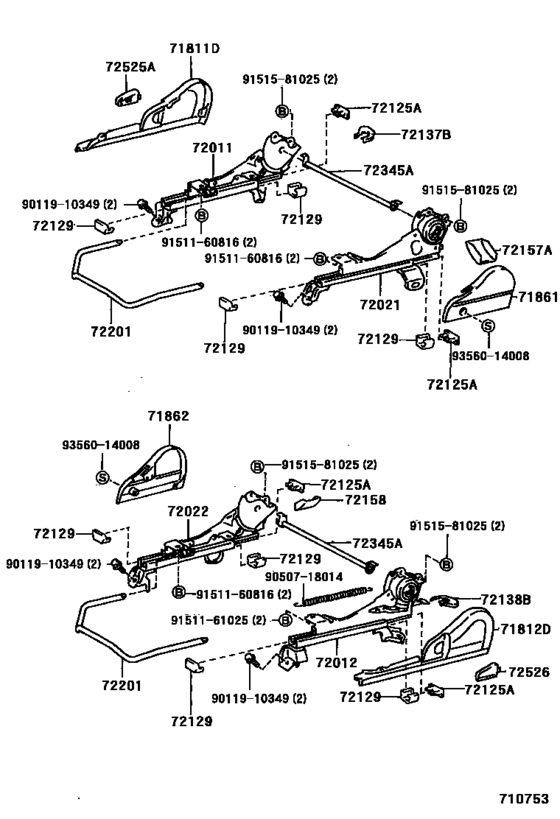

Front Seat & Seat Track ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71811D
|
71811D
71811-20300-B1 Shield, Front Seat Cushion, Rh[01.1996 - 07.1999] EP9#..RHD;EP90..LHD..5D BLUISH GRAY,TRIM1# |
71811-20300-B1 |
US $42.52 |
||
| replacement | |||||
|
71811D
|
71811D
71811-20300-B0 Shield, Front Seat Cushion, Rh[01.1996 - 07.1999] EP9#..RHD;EP90..LHD..5D BLUISH GRAY,TRIM1# |
71811-20300-B0 |
US $42.52 |
||
|
71812D
|
71812D
71812-20270-B1 Shield, Front Seat Cushion, Lh[01.1996 - 07.1999] EP9#..5D;EP90..LHD..3D BLUISH GRAY,TRIM1# |
71812-20270-B1 |
US $42.52 |
||
| replacement | |||||
|
71812D
|
71812D
71812-20270-B0 Shield, Front Seat Cushion, Lh[01.1996 - 07.1999] EP9#..5D;EP90..LHD..3D BLUISH GRAY,TRIM1# |
71812-20270-B0 |
US $42.22 |
||
|
71861
|
71861
71861-16220-B1 Shield, Front Seat Cushion, Inner Rh[01.1996 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
71861-16220-B1 |
US $24.46 |
||
|
71862
|
71862
71862-16190-B1 Shield, Front Seat Cushion, Inner Lh[01.1996 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
71862-16190-B1 |
US $24.46 |
||
|
72011
|
72011
72011-10010 Adjuster Sub-Assy, Front Seat, Outer Rh[01.1996 - 06.1997] EP9#..RHD;EP90..LHD..5D |
72011-10010 |
US $283.92 |
||
| replacement | |||||
|
72011
|
72011
72011-10012 Adjuster Sub-Assy, Front Seat, Outer Rh[01.1996 - 06.1997] EP9#..RHD;EP90..LHD..5D |
72011-10012 |
US $283.92 |
||
|
72011
|
72011
72011-10011 Adjuster Sub-Assy, Front Seat, Outer Rh[06.1997 - 11.1998] EP9#..RHD;EP90..LHD..5D |
72011-10011 |
US $283.92 |
||
| replacement | |||||
|
72011
|
72011
72011-10012 Adjuster Sub-Assy, Front Seat, Outer Rh[06.1997 - 11.1998] EP9#..RHD;EP90..LHD..5D |
72011-10012 |
US $283.92 |
||
|
72011
|
72011
72011-10012 Adjuster Sub-Assy, Front Seat, Outer Rh[11.1998 -] EP9#..RHD;EP90..LHD..5D |
72011-10012 |
US $283.92 |
||
|
72011
|
72011
72011-10021 Adjuster Sub-Assy, Front Seat, Outer Rh[12.1997 - 11.1998] EP9#..RHD..(3FC,5F) W(VERTICAL SEAT AJDUSTER) |
72011-10021 |
US $371.28 |
||
| replacement | |||||
|
72011
|
72011
72011-10022 Adjuster Sub-Assy, Front Seat, Outer Rh[12.1997 - 11.1998] EP9#..RHD..(3FC,5F) W(VERTICAL SEAT AJDUSTER) |
72011-10022 |
US $371.28 |
||
|
72011
|
72011
72011-10022 Adjuster Sub-Assy, Front Seat, Outer Rh[11.1998 -] EP9#..RHD..(3FC,5F) W(VERTICAL SEAT AJDUSTER) |
72011-10022 |
US $371.28 |
||
|
72012
|
72012
72012-10010 Adjuster Sub-Assy, Front Seat, Outer Lh[01.1996 - 06.1997] EP9#..5D;EP90..LHD..3D |
72012-10010 |
US $283.92 |
||
| replacement | |||||
|
72012
|
72012
72012-10012 Adjuster Sub-Assy, Front Seat, Outer Lh[01.1996 - 06.1997] EP9#..5D;EP90..LHD..3D |
72012-10012 |
US $283.92 |
||
|
72012
|
72012
72012-10011 Adjuster Sub-Assy, Front Seat, Outer Lh[06.1997 - 11.1998] EP9#..5D;EP90..LHD..3D |
72012-10011 |
US $283.92 |
||
| replacement | |||||
|
72012
|
72012
72012-10012 Adjuster Sub-Assy, Front Seat, Outer Lh[06.1997 - 11.1998] EP9#..5D;EP90..LHD..3D |
72012-10012 |
US $283.92 |
||
|
72012
|
72012
72012-10012 Adjuster Sub-Assy, Front Seat, Outer Lh[11.1998 -] EP9#..5D;EP90..LHD..3D |
72012-10012 |
US $283.92 |
||
|
72021
|
72021
72021-10010 Adjuster Sub-Assy, Front Seat, Inner Rh[01.1996 - 06.1997] EP9# |
72021-10010 |
US $283.92 |
||
| replacement | |||||
|
72021
|
72021
72021-10012 Adjuster Sub-Assy, Front Seat, Inner Rh[01.1996 - 06.1997] EP9# |
72021-10012 |
US $283.92 |
||
|
72021
|
72021
72021-10011 Adjuster Sub-Assy, Front Seat, Inner Rh[06.1997 - 11.1998] EP9# |
72021-10011 |
US $283.92 |
||
| replacement | |||||
|
72021
|
72021
72021-10012 Adjuster Sub-Assy, Front Seat, Inner Rh[06.1997 - 11.1998] EP9# |
72021-10012 |
US $283.92 |
||
|
72021
|
72021
72021-10012 Adjuster Sub-Assy, Front Seat, Inner Rh[11.1998 -] EP9# |
72021-10012 |
US $283.92 |
||
|
72021
|
72021
72021-10021 Adjuster Sub-Assy, Front Seat, Inner Rh[12.1997 - 11.1998] EP9#..RHD..(3FC,5F) W(VERTICAL SEAT AJDUSTER) |
72021-10021 |
US $283.92 |
||
| replacement | |||||
|
72021
|
72021
72021-10022 Adjuster Sub-Assy, Front Seat, Inner Rh[12.1997 - 11.1998] EP9#..RHD..(3FC,5F) W(VERTICAL SEAT AJDUSTER) |
72021-10022 |
US $283.92 |
||
|
72021
|
72021
72021-10022 Adjuster Sub-Assy, Front Seat, Inner Rh[11.1998 -] EP9#..RHD..(3FC,5F) W(VERTICAL SEAT AJDUSTER) |
72021-10022 |
US $283.92 |
||
|
72022
|
72022
72022-10010 Adjuster Sub-Assy, Front Seat, Inner Lh[01.1996 - 06.1997] EP9#..5D;EP90..3D..4F |
72022-10010 |
US $283.92 |
||
| replacement | |||||
|
72022
|
72022
72022-10012 Adjuster Sub-Assy, Front Seat, Inner Lh[01.1996 - 06.1997] EP9#..5D;EP90..3D..4F |
72022-10012 |
US $283.92 |
||
|
72022
|
72022
72022-10011 Adjuster Sub-Assy, Front Seat, Inner Lh[06.1997 - 11.1998] EP9#..5D;EP90..3D..4F |
72022-10011 |
US $283.92 |
||
| replacement | |||||
|
72022
|
72022
72022-10012 Adjuster Sub-Assy, Front Seat, Inner Lh[06.1997 - 11.1998] EP9#..5D;EP90..3D..4F |
72022-10012 |
US $283.92 |
||
|
72022
|
72022
72022-10012 Adjuster Sub-Assy, Front Seat, Inner Lh[11.1998 -] EP9#..5D;EP90..3D..4F |
72022-10012 |
US $283.92 |
||
|
72125A
|
72125A
72125-10010 Cover, Seat Track, Upper Rear[01.1996 -] EP9# |
72125-10010 |
US $2.18 |
||
|
72129
|
72129
72129-12010 Protector, Seat Track Lower Rail, No.1[06.1998 -] EP9# REAR |
72129-12010 |
US $5.24 |
||
|
72129
|
72129
72129-20020 Protector, Seat Track Lower Rail, No.1[01.1996 -] EP9# FRONT |
72129-20020 |
US $3.20 |
||
|
72129
|
72129
72129-20040 Protector, Seat Track Lower Rail, No.1[01.1996 - 06.1998] EP9# REAR |
72129-20040 |
US $2.77 |
||
|
72137B
|
72137B
72137-10040 Cover, Seat Track, Rh[01.1996 -] EP9# |
72137-10040 |
US $8.30 |
||
|
72138B
|
72138B
72138-10030 Cover, Seat Track, Lh[01.1996 -] EP9# |
72138-10030 |
US $8.30 |
||
|
72157A
|
72157A
72157-10070 Cover, Seat Track Bracket, Inner Rh[01.1996 -] EP9# |
72157-10070 |
US $9.03 |
||
|
72158
|
72158
72157-10070 Cover, Seat Track Bracket, Inner Rh[01.1996 -] EP9# |
72157-10070 |
US $9.03 |
||
|
72201
|
72201
72201-10060 Handle Sub-Assy, Seat Track[01.1996 -] EP9# |
72201-10060 |
US $24.17 |
||
|
72345A
|
72345A
72345-10020 Pipe, Reclining Connecting[01.1996 -] EP9# |
72345-10020 |
US $27.23 |
||
| replacement | |||||
|
72345A
|
72345A
72345-44050 Pipe Sub-Assy, Reclining Connecting, Rh[01.1996 -] EP9# |
72345-44050 |
US $27.08 |
||
|
72525A
|
72525A
72525-16010-B5 Handle, Reclining Adjuster Release, Rh[01.1996 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
72525-16010-B5 |
US $16.89 |
||
| replacement | |||||
|
72525A
|
72525A
72525-16010-S1 Handle, Reclining Adjuster Release, Rh[01.1996 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
72525-16010-S1 |
US $17.47 |
||
|
72526
|
72526
72526-16010-B5 Handle, Reclining Adjuster Release, Lh[01.1996 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
72526-16010-B5 |
US $16.89 |
||
| replacement | |||||
|
72526
|
72526
72526-16010-S1 Handle, Reclining Adjuster Release, Lh[01.1996 - 07.1999] EP9# BLUISH GRAY,TRIM1# |
72526-16010-S1 |
US $13.63 |
||
|
9011910349
|
9011910349
90119-10349
BOLT
|
90119-10349 |
— | ||
|
9050718014
|
9050718014
90507-18014 Spring, Tension (For Front Seat Adjuster Outer) |
90507-18014 |
US $5.53 |
||
|
9151160816
|
9151160816
91511-60816
BOLT
|
91511-60816 |
— | ||
| replacement | |||||
|
9151160816
|
9151160816
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
|
9151161025
|
9151161025
91511-61025
New Genuine Part
|
91511-61025 |
— | ||
| replacement | |||||
|
9151161025
|
9151161025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.96 |
||
|
9151581025
|
9151581025
91515-81025 New Genuine Part |
91515-81025 |
US $1.31 |
||
|
9356014008
|
9356014008
93560-14008 New Genuine Part |
93560-14008 |
US $1.16 |
||
