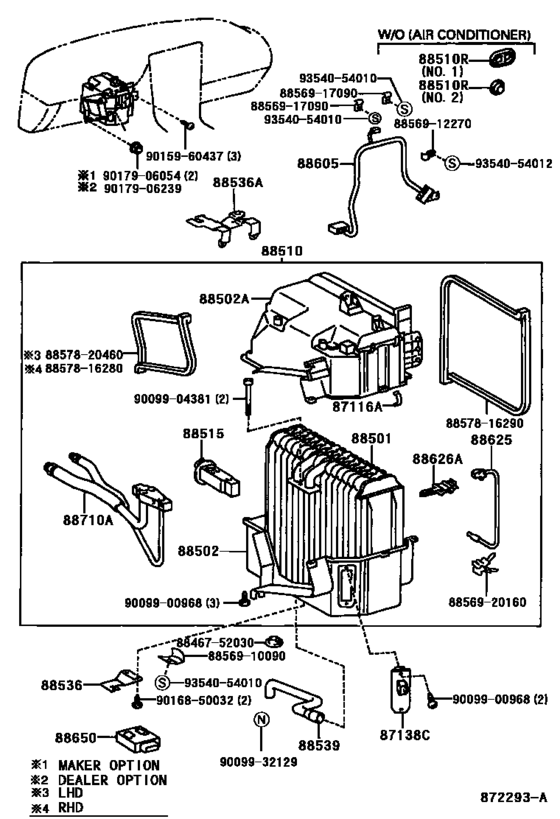

Heating & Air Conditioning - Cooler Unit ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[01.1996 -] EP9# |
87116-14010 |
— | ||
|
87138C
|
87138C
87138-10141
Resistor, Heater Blower
[01.1996 -] EP9#..RHD |
87138-10141 |
— | ||
|
88501
|
88501
88501-10140
Evaporator Sub-Assy, Cooler, No.1
[01.1996 -] EP9#..RHD |
88501-10140 |
— | ||
|
88502
|
88502
88502-10060
Case Sub-Assy, Cooling Unit
[01.1996 -] EP9#..RHD |
88502-10060 |
— | ||
|
88502A
|
88502A
88502-10050
Case Sub-Assy, Cooling Unit
[01.1996 -] EP9#..RHD |
88502-10050 |
— | ||
|
88510
|
88510
88510-10640
Unit Assy, Cooler
[01.1996 -] EP9#..RHD |
88510-10640 |
— | ||
|
88510R
|
88510R
90480-24008
Grommet (For Cooler Unit)
[01.1996 - 01.1999] EP9# NO.1 |
90480-24008 |
— | ||
| replacement | |||||
|
88510R
|
88510R
90099-32137 Grommet (For Cooler Unit)[01.1996 - 01.1999] EP9# NO.1 |
90099-32137 |
US $4.54 |
||
|
88510R
|
88510R
90480-26022 Grommet (For Cooler Unit)[01.1996 - 01.1999] EP9# NO.2 |
90480-26022 |
US $2.45 |
||
|
88515
|
88515
88515-20100
Valve, Cooler Expansion
[01.1996 -] EP9# |
88515-20100 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22240 Valve, Cooler Expansion[01.1996 -] EP9# |
88515-22240 |
from US $125.76 |
||
|
88536
|
88536
88688-10380
Bracket, Cooling Unit, No.1
[01.1996 -] EP9#..RHD |
88688-10380 |
— | ||
|
88536A
|
88536A
88688-10400
Bracket, Cooling Unit, No.2
[01.1996 - 12.1997] EP9#..RHD |
88688-10400 |
— | ||
|
88539
|
88539
88539-10090
Hose, Cooler Unit Drain, No.1
[01.1996 -] EP9#..RHD |
88539-10090 |
— | ||
|
88605
|
88605
88605-1M300
Harness Sub-Assy, Cooler Wiring, No.1
[01.1996 -] EP90..RHD MANUAL AIR CONDITIONER OR DEALER KIT MANUAL AIR CONDITIONER |
88605-1M300 |
— | ||
|
88605
|
88605
88605-1M310
Harness Sub-Assy, Cooler Wiring, No.1
[01.1996 -] EP90..RHD COOLER BOOST VENTILATOR OR DEALER KIT BOOST VENTILATOR |
88605-1M310 |
— | ||
|
88625
|
88625
88625-16210
Thermistor, Cooler, No.1
[01.1996 -] EP9#..RHD DEALER OPTION |
88625-16210 |
— | ||
|
88625
|
88625
88625-24050
Thermistor, Cooler, No.1
[12.1997 -] EP9#..RHD MAKER OPTION |
88625-24050 |
— | ||
|
88626A
|
88626A
88626-28010
Holder, Thermistor
[01.1996 -] EP9# |
88626-28010 |
— | ||
|
88650
|
88650
88650-10450
Amplifier Assy, Cooler Stabilizer
[01.1996 -] EP90 |
88650-10450 |
— | ||
|
88710A
|
88710A
88710-10150 Tube Assy, Air Conditioner[03.1998 -] EP9#..RHD W(AIR CONDITIONER);W(BOOST VENTILATOR) |
88710-10150 |
US $136.86 |
||
|
88710A
|
88710A
88710-16250 Tube Assy, Air Conditioner[01.1996 - 03.1998] EP9#..RHD |
88710-16250 |
US $138.32 |
||
|
8846752030
|
8846752030
88467-52030
Grommet (For Cooler Unit Drain Hose)
|
88467-52030 |
— | ||
|
8856910090
|
8856910090
88569-10090
Clamp (for Cooler Relay)
|
88569-10090 |
— | ||
|
8856912270
|
8856912270
88569-12270
Clamp (for Cooler Relay)
|
88569-12270 |
— | ||
|
8856917090
|
8856917090
88569-17090
Clamp (for Cooler Relay)
|
88569-17090 |
— | ||
|
8856920160
|
8856920160
88569-20160
Holder, Thermistor
|
88569-20160 |
— | ||
|
8857816280
|
8857816280
88578-16280
Paking, Cooler Air Duct
|
88578-16280 |
— | ||
|
8857816290
|
8857816290
88578-16290
Paking, Cooler Air Duct
|
88578-16290 |
— | ||
|
8857820460
|
8857820460
88578-20460
Packing, Cooling Unit, No.1
|
88578-20460 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9009932129
|
9009932129
90099-32129
Grommet (For Cooler Unit Drain Hose)
|
90099-32129 |
— | ||
|
9015960437
|
9015960437
90159-60437 New Genuine Part |
90159-60437 |
US $1.60 |
||
|
9016850032
|
9016850032
90168-50032 New Genuine Part |
90168-50032 |
US $1.60 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9017906239
|
9017906239
90179-06239
New Genuine Part
|
90179-06239 |
— | ||
| replacement | |||||
|
9017906239
|
9017906239
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $2.15 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.61 |
||
