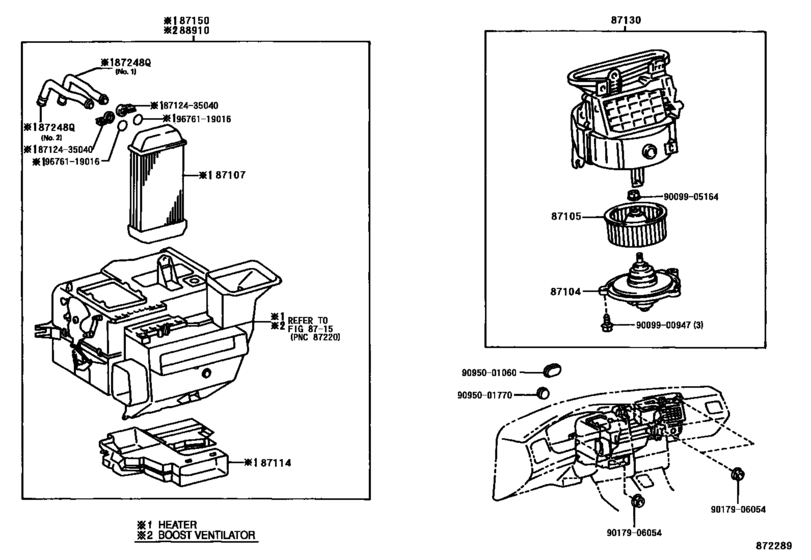

Heating & Air Conditioning - Heater Unit & Blower ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104
|
87104
87104-10250
Motor Sub-Assy, Heater Blower
[01.1996 -] EP9#..RHD |
87104-10250 |
— | ||
|
87105
|
87105
87105-14030
Fan Sub-Assy, Heater Blower
[01.1996 -] EP9#..RHD |
87105-14030 |
— | ||
|
87107
|
87107
87107-10330
Unit Sub-Assy, Heater Radiator
[01.1996 -] EP9# |
87107-10330 |
— | ||
| replacement | |||||
|
87107
|
87107
87107-42060
Unit Sub-Assy, Heater Radiator
[01.1996 -] EP9# |
87107-42060 |
— | ||
|
87114
|
87114
87114-16050
Cover, Heater
[01.1996 -] EP9#..RHD |
87114-16050 |
— | ||
|
87130
|
87130
87130-10190
Blower Assy, Heater, Front
[01.1996 -] EP9#..RHD |
87130-10190 |
— | ||
|
87150
|
87150
87150-10450
Radiator Assy, Heater
[01.1996 -] EP9#..RHD |
87150-10450 |
— | ||
|
87248Q
|
87248Q
87156-10010
Pipe, Front Heater Radiator Water
[01.1996 -] EP9#..RHD NO.1 |
87156-10010 |
— | ||
|
87248Q
|
87248Q
87156-10020
Pipe, Front Heater Radiator Water
[01.1996 -] EP9#..RHD NO.2 |
87156-10020 |
— | ||
|
88910
|
88910
88910-16070
Ventilator Assy, Boost
[01.1996 -] EP90..RHD |
88910-16070 |
— | ||
|
8712435040
|
8712435040
87124-35040 Clamp, Heater, No.3 |
87124-35040 |
from US $1.25 |
||
|
9009900947
|
9009900947
90099-00947
New Genuine Part
|
90099-00947 |
— | ||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $2.15 |
||
|
9095001770
|
9095001770
90950-01770 New Genuine Part |
90950-01770 |
US $4.30 |
||
|
9676119016
|
9676119016
96761-19016 RING |
96761-19016 |
from US $0.74 |
||
