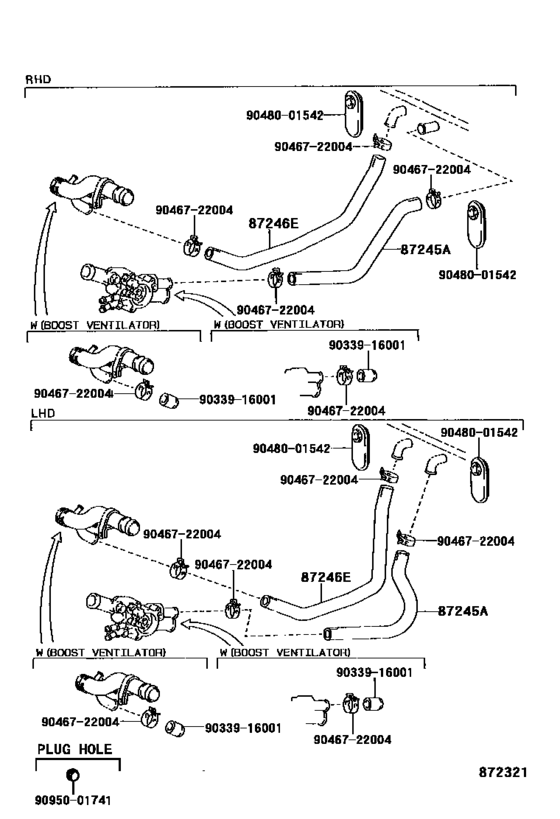

Heating & Air Conditioning - Water Piping ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-10410
Hose, Heater Water, Inlet A
[01.1996 -] EP9#..RHD |
87245-10410 |
— | ||
|
87246E
|
87246E
87245-16390 Hose, Heater Water, Outlet A[01.1996 -] EP90..RHD |
87245-16390 |
US $40.33 |
||
|
9033916001
|
9033916001
90339-16001 Plug, Heater Water |
90339-16001 |
from US $2.98 |
||
|
9046722004
|
9046722004
90467-22004
Clip(For Ventilation Hose No.2)
|
90467-22004 |
— | ||
| replacement | |||||
|
9046722004
|
9046722004
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9048001542
|
9048001542
90480-01542 New Genuine Part |
90480-01542 |
US $3.93 |
||
|
9095001741
|
9095001741
90950-01741 New Genuine Part |
90950-01741 |
US $3.35 |
||
