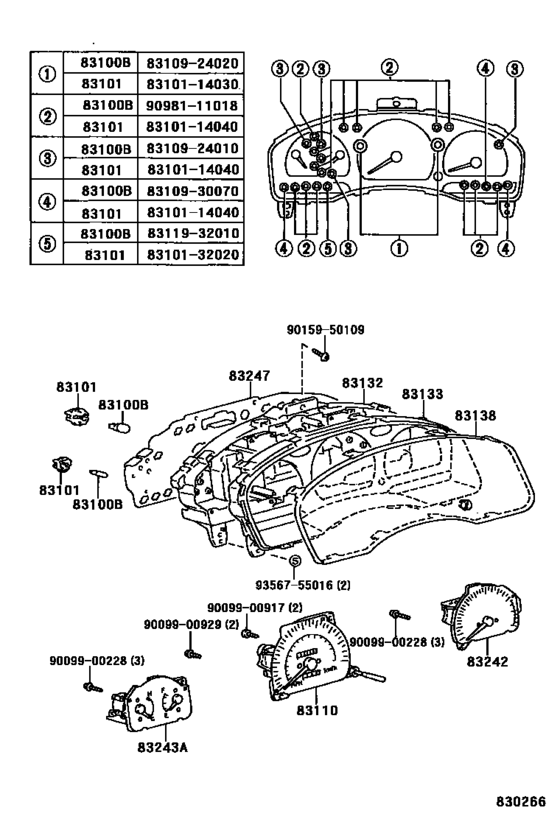

Meter ([01.1996 - 12.1997] W(TACHOMETER) (9601-9712)) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24010 Bulb, Combination Meter, No.1[01.1996 - 12.1997] EP9#..3FC,5F 12V 1.4W,GREEN CAP |
83109-24010 |
from US $2.73 |
||
|
83100B
|
83100B
83109-24020 Bulb, Combination Meter, No.1[01.1996 - 12.1997] EP9# 12V 3.4W W(GREEN CAP) |
83109-24020 |
from US $5.87 |
||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[01.1996 - 12.1997] EP9#..3FC,5F 14V 3.0W |
83119-32010 |
from US $2.20 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[01.1996 - 12.1997] EP90 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[01.1996 - 12.1997] EP9# BULB:12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[12.1997 -] EP90 TYPE A OR TYPE B OR TYPE C OR TYPE G:REFER TO ILLUSTRATION |
83101-14040 |
US $2.44 |
||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[01.1996 - 12.1997] EP9#..3FC,5F OD=12.2 BLUE |
83101-32020 |
from US $2.20 |
||
|
83110
|
83110
83110-1G441 Speedometer Assy[01.1996 -] EP9# |
83110-1G441 |
US $336.34 |
||
| replacement | |||||
|
83110
|
83110
83110-1G442
Speedometer Assy
[01.1996 -] EP9# |
83110-1G442 |
— | ||
|
83110
|
83110
83220-10020 Speedometer Assy[01.1996 -] EP90..3FC,5F W(TACHOMETER & MPH+KM/H) |
83220-10020 |
US $448.45 |
||
| replacement | |||||
|
83110
|
83110
83220-10021
Speedometer Assy
[01.1996 -] EP90..3FC,5F W(TACHOMETER & MPH+KM/H) |
83220-10021 |
— | ||
|
83110
|
83110
83220-10040 Speedometer Assy[01.1996 -] EP9#..3FC,5F W(TACHOMETER) |
83220-10040 |
US $384.38 |
||
|
83110
|
83110
83220-10060 Speedometer Assy[01.1996 -] EP90 MPH+KM/H |
83220-10060 |
US $448.45 |
||
| replacement | |||||
|
83110
|
83110
83220-10061
Speedometer Assy
[01.1996 -] EP90 MPH+KM/H |
83220-10061 |
— | ||
|
83132
|
83132
83841-10050
Case, Combination Meter
[01.1996 - 12.1997] EP90..3FC,5F W(TACHOMETER) |
83841-10050 |
— | ||
|
83132
|
83132
83841-10190
Case, Combination Meter
[01.1996 - 12.1997] EP90 |
83841-10190 |
— | ||
|
83132
|
83132
83841-10470
Case, Combination Meter
[12.1997 -] EP90 |
83841-10470 |
— | ||
|
83132
|
83132
83841-10550
Case, Combination Meter
[12.1997 -] EP90..3FC,5F W(TACHOMETER) |
83841-10550 |
— | ||
|
83133
|
83133
83811-10010
Plate, Combination Meter, No.1
[01.1996 -] EP9#..3FC,5F W(TACHOMETER) |
83811-10010 |
— | ||
|
83133
|
83133
83811-10120
Plate, Combination Meter, No.1
[01.1996 -] EP9# |
83811-10120 |
— | ||
|
83133
|
83133
83811-10600
Plate, Combination Meter, No.1
[12.1997 -] EP9#..3FC,5F W(TACHOMETER & PLATING MOULDING) |
83811-10600 |
— | ||
|
83138
|
83138
83138-16630
Glass, Speedometer
[01.1996 -] EP9# |
83138-16630 |
— | ||
|
83242
|
83242
83881-10080 Tachometer Assy, EngineENGINE [01.1996 -] EP90..3FC,5F |
83881-10080 |
US $486.30 |
||
|
83243A
|
83243A
83882-10050 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [01.1996 -] EP9#..3FC,5F W(TACHOMETER) |
83882-10050 |
US $151.42 |
||
|
83243A
|
83243A
83882-10100 Gauge Sub-Assy, Fuel Receiver[01.1996 -] EP9# |
83882-10100 |
US $75.71 |
||
|
83247
|
83247
83861-10080
Plate, Meter Circuit
[01.1996 - 12.1997] EP90..3FC,5F W(TACHOMETER) |
83861-10080 |
— | ||
| replacement | |||||
|
83247
|
83247
83861-10050
Plate, Meter Circuit
[01.1996 - 12.1997] EP90..3FC,5F W(TACHOMETER) |
83861-10050 |
— | ||
|
83247
|
83247
83861-10220
Plate, Meter Circuit
[01.1996 - 12.1997] EP90 |
83861-10220 |
— | ||
| replacement | |||||
|
83247
|
83247
83861-10190
Plate, Meter Circuit
[01.1996 - 12.1997] EP90 |
83861-10190 |
— | ||
|
83247
|
83247
83861-10500
Plate, Meter Circuit
[12.1997 -] EP90 |
83861-10500 |
— | ||
| replacement | |||||
|
83247
|
83247
83861-10470
Plate, Meter Circuit
[12.1997 -] EP90 |
83861-10470 |
— | ||
|
83247
|
83247
83861-10580
Plate, Meter Circuit
[12.1997 -] EP90..3FC,5F W(TACHOMETER) |
83861-10580 |
— | ||
| replacement | |||||
|
83247
|
83247
83861-10550
Plate, Meter Circuit
[12.1997 -] EP90..3FC,5F W(TACHOMETER) |
83861-10550 |
— | ||
|
9009900228
|
9009900228
90099-00228
New Genuine Part
|
90099-00228 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9015950109
|
9015950109
90159-50109 New Genuine Part |
90159-50109 |
US $2.33 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
