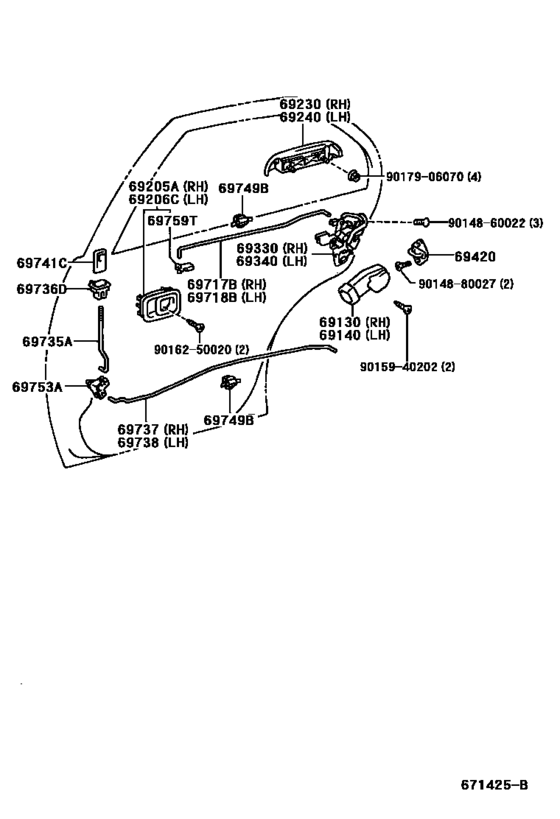

Rear Door Lock & Handle ([01.1996 - ] (9601- )5D) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69130
|
69130
69130-10030 Actuator Assy, Rear Door Lock, Rh[01.1996 -] EP9#..5D..(3FC,5F) |
69130-10030 |
US $119.39 |
||
|
69140
|
69140
69140-10030 Actuator Assy, Rear Door Lock, Lh[01.1996 -] EP9#..5D..(3FC,5F) |
69140-10030 |
US $119.39 |
||
|
69205A
|
69205A
69205-10090-B0 Handle Sub-Assy, Front Door Inside, Rh[01.1996 - 04.1997] EP9#..5D BLUISH GRAY,TRIM1# |
69205-10090-B0 |
US $26.94 |
||
| replacement | |||||
|
69205A
|
69205A
69205-16100-B1 Handle Sub-Assy, Front Door Inside, Rh[01.1996 - 04.1997] EP9#..5D BLUISH GRAY,TRIM1# |
69205-16100-B1 |
US $27.08 |
||
|
69205A
|
69205A
69205-16100-B0 Handle Sub-Assy, Front Door Inside, Rh[12.1997 - 07.1999] EP9#..5D SHADOW GRAY,TRIM1# |
69205-16100-B0 |
US $27.08 |
||
|
69205A
|
69205A
69205-16100-B1 Handle Sub-Assy, Front Door Inside, Rh[04.1997 - 12.1997] EP9#..5D BLUISH GRAY,TRIM1# |
69205-16100-B1 |
US $27.08 |
||
|
69206C
|
69206C
69206-10090-B0 Handle Sub-Assy, Front Door Inside, Lh[01.1996 - 04.1997] EP9#..5D BLUISH GRAY,TRIM1# |
69206-10090-B0 |
US $26.94 |
||
| replacement | |||||
|
69206C
|
69206C
69206-16100-B0 Handle Sub-Assy, Front Door Inside, Lh[01.1996 - 04.1997] EP9#..5D BLUISH GRAY,TRIM1# |
69206-16100-B0 |
US $27.08 |
||
|
69206C
|
69206C
69206-16100-B0 Handle Sub-Assy, Front Door Inside, Lh[12.1997 - 07.1999] EP9#..5D SHADOW GRAY,TRIM1# |
69206-16100-B0 |
US $27.08 |
||
|
69206C
|
69206C
69206-16100-B1 Handle Sub-Assy, Front Door Inside, Lh[04.1997 - 12.1997] EP9#..5D BLUISH GRAY,TRIM1# |
69206-16100-B1 |
US $27.08 |
||
| replacement | |||||
|
69206C
|
69206C
69206-16100-B0 Handle Sub-Assy, Front Door Inside, Lh[04.1997 - 12.1997] EP9#..5D BLUISH GRAY,TRIM1# |
69206-16100-B0 |
US $27.08 |
||
|
69230
|
69230
69230-10050 Handle Assy, Rear Door Outside, Rh[01.1996 - 01.1999] EP9#..5D |
69230-10050 |
US $55.62 |
||
| replacement | |||||
|
69230
|
69230
69230-10090
Handle Assy, Rear Door Outside, Rh
[01.1996 - 01.1999] EP9#..5D |
69230-10090 |
— | ||
|
69230
|
69230
69230-10060 Handle Assy, Rear Door Outside, Rh[12.1997 -] EP9#..5D..(3FC,5F) CHROME PLATED |
69230-10060 |
US $90.27 |
||
|
69230
|
69230
69230-10090
Handle Assy, Rear Door Outside, Rh
[01.1999 -] EP9#..5D |
69230-10090 |
— | ||
|
69240
|
69240
69240-10050
Handle Assy, Rear Door Outside, Lh
[01.1996 - 01.1999] EP9#..5D |
69240-10050 |
— | ||
| replacement | |||||
|
69240
|
69240
69240-10090
Handle Assy, Rear Door Outside, Lh
[01.1996 - 01.1999] EP9#..5D |
69240-10090 |
— | ||
|
69240
|
69240
69240-10060 Handle Assy, Rear Door Outside, Lh[12.1997 -] EP9#..5D..(3FC,5F) CHROME PLATED |
69240-10060 |
US $90.27 |
||
|
69240
|
69240
69240-10090
Handle Assy, Rear Door Outside, Lh
[01.1999 -] EP9#..5D |
69240-10090 |
— | ||
|
69330
|
69330
69330-10150 Lock Assy, Rear Door, RhREAR DOOR, RH [01.1996 -] EP9#..5D |
69330-10150 |
US $104.83 |
||
|
69330
|
69330
69330-10160 Lock Assy, Rear Door, Rh[01.1996 -] EP9#..5D..(3FC,5F) W(POWER WINDOW) |
69330-10160 |
US $104.83 |
||
|
69340
|
69340
69340-10150 Lock Assy, Rear Door, LhREAR DOOR, LH [01.1996 -] EP9#..5D |
69340-10150 |
US $104.83 |
||
|
69340
|
69340
69340-10160 Lock Assy, Rear Door, Lh[01.1996 -] EP9#..5D..(3FC,5F) W(POWER WINDOW) |
69340-10160 |
US $104.83 |
||
|
69420
|
69420
69410-87001 Plate Assy, Front Door Lock Striker[01.1996 -] EP9#..5D |
69410-87001 |
from US $9.50 |
||
| replacement | |||||
|
69420
|
69420
69410-AA020 Plate Assy, Front Door Lock Striker[01.1996 -] EP9#..5D |
69410-AA020 |
US $50.37 |
||
|
69717B
|
69717B
69713-10050 Link, Rear Door Lock Remote Control, Rh[01.1996 -] EP9#..5D |
69713-10050 |
US $9.03 |
||
|
69718B
|
69718B
69714-10040 Link, Rear Door Lock Remote Control, Lh[01.1996 -] EP9#..5D |
69714-10040 |
US $9.03 |
||
|
69735A
|
69735A
69735-10060 Rod, Rear Door Lock Push Button[01.1996 -] EP9#..5D |
69735-10060 |
US $9.03 |
||
|
69736D
|
69736D
69736-16050 Guide, Rear Door Locking Link[01.1996 -] EP9#..5D |
69736-16050 |
US $9.09 |
||
|
69737
|
69737
69737-10040 Link, Rear Door Inside Locking, Rh[01.1996 -] EP9#..5D |
69737-10040 |
US $9.03 |
||
|
69738
|
69738
69738-10040 Link, Rear Door Inside Locking, Lh[01.1996 -] EP9#..5D |
69738-10040 |
US $9.03 |
||
|
69741C
|
69741C
69741-87003-B0 Knob, Rear Door Lock Control[01.1996 - 07.1999] EP9#..5D BLUISH GRAY,TRIM1# |
69741-87003-B0 |
US $4.51 |
||
| replacement | |||||
|
69741C
|
69741C
69741-87003-B8 Knob, Front Door Lock Control (Dark Gray)[01.1996 - 07.1999] EP9#..5D BLUISH GRAY,TRIM1# |
69741-87003-B8 |
US $5.07 |
||
|
69749B
|
69749B
69749-12070 Clamp, Front Door Lock Link[12.1997 -] EP9#..5D |
69749-12070 |
US $1.43 |
||
|
69749B
|
69749B
69749-50020
Clamp, Front Door Lock Link
[01.1996 - 12.1997] EP9#..5D |
69749-50020 |
— | ||
|
69753A
|
69753A
69753-10010 Bellcrank, Door Lock Control[01.1996 -] EP9#..5D |
69753-10010 |
US $8.26 |
||
|
69759T
|
69759T
69759-20060 Snap(For Rear Door Inside Handle)[01.1996 -] EP9#..5D GRAY |
69759-20060 |
US $4.30 |
||
|
69759T
|
69759T
69759-20070 Snap(For Rear Door Inside Handle)[01.1996 -] EP9#..5D GREEN |
69759-20070 |
from US $1.77 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.49 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $8.06 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $1.08 |
||
|
9016250020
|
9016250020
90162-50020 SCREW, OVAL COUNTERS |
90162-50020 |
US $0.44 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
