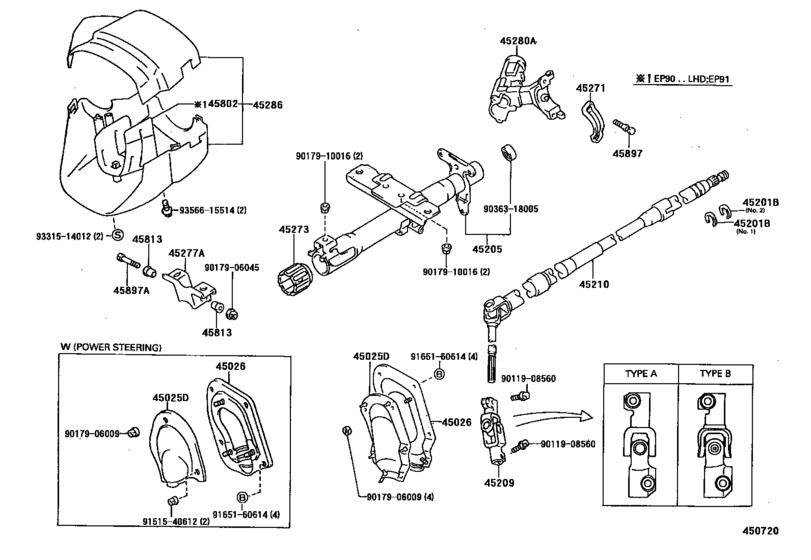

Steering Column & Shaft ([01.1996 - ] (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-10080
Cover Sub-Assy, Steering Column Hole, No.1
[01.1996 -] EP9#..RHD |
45025-10080 |
— | ||
|
45025D
|
45025D
45025-16130
Cover Sub-Assy, Steering Column Hole, No.1
[01.1996 -] EP9#..RHD..(3FC,5F) W(POWER STEERING) |
45025-16130 |
— | ||
|
45026
|
45026
45026-10030
Cover Sub-Assy, Steering Column Hole, No.2
[01.1996 -] EP9#..RHD |
45026-10030 |
— | ||
|
45026
|
45026
45026-16060
Cover Sub-Assy, Steering Column Hole, No.2
[01.1996 -] EP9#..RHD..(3FC,5F) W(POWER STEERING) |
45026-16060 |
— | ||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[01.1996 -] EP9# T=1.20,NO.1 |
90520-17042 |
from US $0.82 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[01.1996 -] EP9# T=1.20,NO.2 |
90520-17269 |
US $2.15 |
||
|
45205
|
45205
45205-10220 Tube Sub-Assy, Steering Column[12.1997 -] EP9# |
45205-10220 |
US $90.27 |
||
|
45205
|
45205
45205-10230 Tube Sub-Assy, Steering Column[12.1997 -] EP9#..3FC,5F W(TILT STEERING) |
45205-10230 |
US $77.17 |
||
|
45205
|
45205
45205-16080 Tube Sub-Assy, Steering Column[01.1996 - 12.1997] EP90 W(ENGINE IMMOBILIZER SYSTEM) |
45205-16080 |
US $90.27 |
||
|
45205
|
45205
45205-16090 Tube Sub-Assy, Steering Column[01.1996 - 12.1997] EP90..RHD..(3FC,5F) W(TILT STEERING & POWER STEERING) |
45205-16090 |
US $90.27 |
||
|
45209
|
45209
45209-16040 Yoke Sub-Assy, Steering Sliding[01.1996 -] EP9# |
45209-16040 |
US $105.49 |
||
|
45209
|
45209
45209-16051 Yoke Sub-Assy, Steering Sliding[01.1996 - 12.1997] EP9#..3FC,5F W(POWER STEERING),TYPE A |
45209-16051 |
US $126.67 |
||
|
45209
|
45209
45209-18010 Yoke Sub-Assy, Steering Sliding[01.1996 - 12.1997] EP9#..3FC,5F W(POWER STEERING),TYPE B |
45209-18010 |
US $126.67 |
||
| replacement | |||||
|
45209
|
45209
45209-16051 Yoke Sub-Assy, Steering Sliding[01.1996 - 12.1997] EP9#..3FC,5F W(POWER STEERING),TYPE B |
45209-16051 |
US $126.67 |
||
|
45210
|
45210
45210-10150
Shaft Assy, Steering Main
[01.1996 - 12.1997] EP9#..RHD..(3FC,5F) W(ELECTRICAL TYPE *80) |
45210-10150 |
— | ||
|
45210
|
45210
45210-16150 Shaft Assy, Steering Main[01.1996 - 12.1997] EP9#..RHD |
45210-16150 |
US $282.46 |
||
|
45210
|
45210
45210-42010 Shaft Assy, Steering Main[12.1997 -] EP9# |
45210-42010 |
US $199.47 |
||
|
45271
|
45271
45271-16020 Clamp, Steering Column, Upper[01.1996 -] EP9# |
45271-16020 |
US $9.32 |
||
|
45273
|
45273
45273-12020 Bush, Steering Main Shaft[12.1997 -] EP9# |
45273-12020 |
from US $6.88 |
||
|
45273
|
45273
45273-16020 Bush, Steering Main Shaft[01.1996 - 12.1997] EP9# |
45273-16020 |
from US $4.25 |
||
|
45277A
|
45277A
45277-12010 Support, Tilt Steering[12.1997 -] EP9#..3FC,5F |
45277-12010 |
US $11.36 |
||
|
45277A
|
45277A
45277-16030 Support, Tilt Steering[01.1996 - 12.1997] EP9# |
45277-16030 |
US $11.36 |
||
|
45280A
|
45280A
45280-10110 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [12.1997 -] EP9# |
45280-10110 |
US $208.21 |
||
| replacement | |||||
|
45280A
|
45280A
45280-10100 Bracket Assy, Steering Column, Upper[12.1997 -] EP9# |
45280-10100 |
US $208.21 |
||
|
45280A
|
45280A
45280-16090 Bracket Assy, Steering Column, Upper[01.1996 - 12.1997] EP90..RHD |
45280-16090 |
US $221.31 |
||
|
45286
|
45286
45286-10915-B0 Cover, Steering Column[01.1996 - 12.1997] EP90..RHD BLUISH GRAY,TRIM1# |
45286-10915-B0 |
US $52.42 |
||
|
45286
|
45286
45286-10920-B0 Cover, Steering Column[12.1997 - 07.1999] EP9#..RHD BLUISH GRAY,TRIM1# |
45286-10920-B0 |
US $55.18 |
||
| replacement | |||||
|
45286
|
45286
45286-10921-B0 Cover, Steering Column[12.1997 - 07.1999] EP9#..RHD BLUISH GRAY,TRIM1# |
45286-10921-B0 |
US $55.18 |
||
|
45813
|
45813
45813-12010 Collar, Tilt Steering Support, No.1[12.1997 -] EP9#..3FC,5F OD=14 |
45813-12010 |
US $1.60 |
||
|
45813
|
45813
45813-16030 Collar, Tilt Steering Support, No.1[01.1996 - 12.1997] EP9# ID=8,OD=10 |
45813-16030 |
US $4.95 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[01.1996 -] EP9# |
45897-12020 |
from US $2.63 |
||
|
45897A
|
45897A
45897-12040 Bolt, Tilt Steering Pawl Set[12.1997 -] EP9#..3FC,5F |
45897-12040 |
US $6.41 |
||
|
45897A
|
45897A
45897-16020 Bolt, Tilt Steering Pawl Set[01.1996 - 12.1997] EP9# |
45897-16020 |
US $6.41 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.47 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $2.15 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9036318005
|
9036318005
90363-18005 Bearing(For Steering Main Shaft) |
90363-18005 |
from US $5.75 |
||
|
9151540612
|
9151540612
91515-40612 New Genuine Part |
91515-40612 |
US $1.46 |
||
| replacement | |||||
|
9151540612
|
9151540612
91511-40608 New Genuine Part |
91511-40608 |
US $1.05 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9356615514
|
9356615514
93566-15514
Direct
|
93566-15514 |
— | ||
| replacement | |||||
|
9356615514
|
9356615514
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
