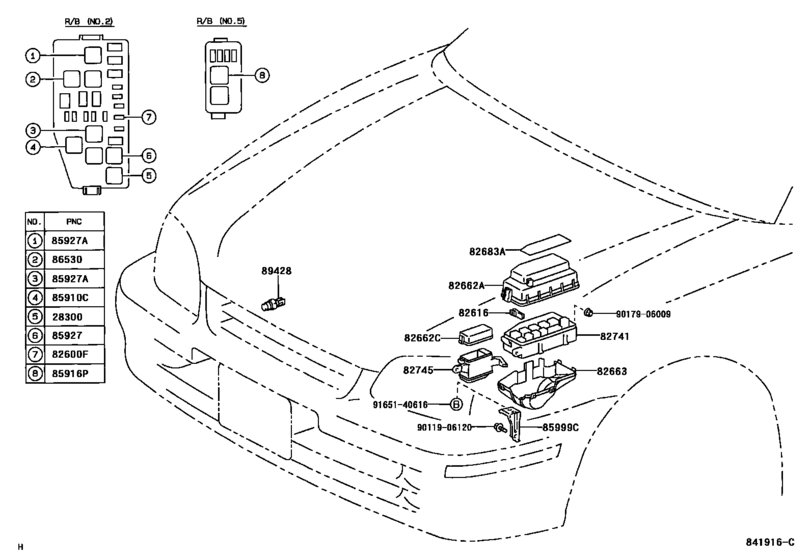

Switch & Relay & Computer ([01.1996 - ] E/G ROOM (9601- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- General
- Frame
- EP90
- ENGINE
- 2E
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[01.1996 -] 2E,4EFE..EP9# |
28300-10020 |
from US $53.76 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[01.1996 - 12.1996] EP90 5A,MINI FUSE |
90982-09007 |
from US $0.55 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[12.1997 - 07.1999] EP9# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[01.1996 - 12.1997] EP9# 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[01.1996 - 12.1997] EP90 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[12.1997 - 07.1999] EP9# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[12.1997 - 07.1999] EP9# 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[01.1996 - 07.1999] EP9# |
82616-20010 |
from US $2.34 |
||
|
82662A
|
82662A
82662-10300 Cover, Relay Block, Upper, No.1[01.1996 - 12.1997] EP9# |
82662-10300 |
US $37.56 |
||
|
82662A
|
82662A
82662-46010
Cover, Relay Block, Upper, No.1
[12.1997 - 07.1999] EP9# |
82662-46010 |
— | ||
|
82663
|
82663
82663-10050 Cover, Relay Block, Lower[01.1996 - 12.1997] EP9# |
82663-10050 |
US $36.69 |
||
|
82663
|
82663
82663-46010 Cover, Relay Block, Lower[12.1997 - 07.1999] EP9# |
82663-46010 |
US $32.18 |
||
|
82683A
|
82683A
82683-10210
Plate, Fuse Block Caution
[01.1996 - 12.1997] EP90 |
82683-10210 |
— | ||
|
82683A
|
82683A
82683-10300
Plate, Fuse Block Caution
[12.1997 -] EP90 |
82683-10300 |
— | ||
|
82741
|
82741
82741-10010 Block, Engine Room Relay[01.1996 - 12.1997] EP9# |
82741-10010 |
US $113.57 |
||
|
82741
|
82741
82741-46010 Block, Engine Room Relay[12.1997 - 07.1999] EP9# |
82741-46010 |
US $90.27 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[01.1996 -] EP9# |
90987-04002 |
from US $24.32 |
||
|
85916P
|
85916P
90987-02006 Relay[12.1997 -] EP9# |
90987-02006 |
from US $26.75 |
||
|
85927
|
85927
90987-02009 Relay Assy[12.1997 -] EP9# |
90987-02009 |
from US $26.15 |
||
|
85927
|
85927
90987-02012 Relay, Ignition, No.1[01.1996 - 12.1997] EP9# |
90987-02012 |
from US $26.54 |
||
|
85927
|
85927
90987-04004 Relay, Starter Cut[01.1996 -] EP91 W(MANUAL AIR CONDITIONER),FAN NO.3; EP90 W(MANUAL AIR CONDITIONER) OR W(COOLER BOOST VENTILATOR),FAN NO.3 |
90987-04004 |
from US $47.21 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[01.1996 -] EP9# |
90987-04004 |
from US $47.21 |
||
|
85999C
|
85999C
85999-10130 Bracket, Relay, No.3[01.1996 - 12.1997] EP9# |
85999-10130 |
US $9.03 |
||
|
85999C
|
85999C
85999-10180 Bracket, Relay, No.3[12.1997 - 07.1999] EP9# |
85999-10180 |
US $10.63 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[01.1996 -] EP9# |
86530-20070 |
from US $10.16 |
||
|
89428
|
89428
89428-10120 Switch, Temperature Detect, No.2[04.1996 -] EP9# |
89428-10120 |
US $86.92 |
||
|
89428
|
89428
89428-41010 Switch, Temperature Detect[01.1996 - 04.1996] EP9# |
89428-41010 |
from US $82 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.25 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
