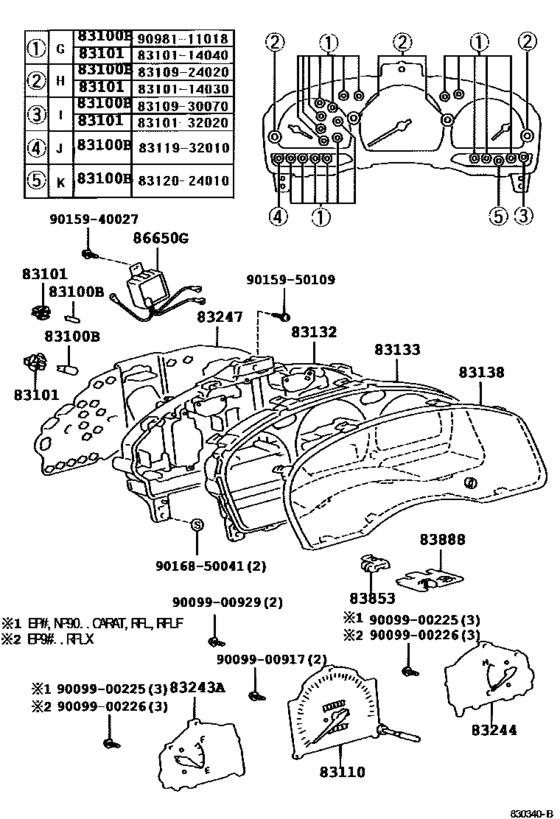

Meter ([12.1997 - ] ﾅｼ(ﾀｺﾒ-ﾀ) (9712- )) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- EP91
- grade
- RFLF
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 3FC
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24020 Bulb, Combination Meter, No.1[01.1996 - 12.1997] EP9#,NP90..CARAT,RFL,RFLF,RFLX １２Ｖ ３．４Ｗ キャップ付き |
83109-24020 |
from US $6.12 |
||
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[12.1997 -] EP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX １４Ｖ ２．０Ｗ，ソケットなし,TYPE F OR TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[01.1996 - 12.1997] EP9#..CARAT,GLZS,GLZV,RFLF,RFLX １４Ｖ ３．０Ｗ |
83119-32010 |
from US $2.32 |
||
|
83100B
|
83100B
83120-24010
Bulb, Combination Meter, No.1
[04.1997 - 12.1997] EP9#,NP90 １３．５Ｖ，ソケット付き |
83120-24010 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[12.1997 -] EP91..3FC..(CARAT,RFL,RFLF) １２Ｖ １．２Ｗ ソケット無し,TYPE A OR TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
90981-11018 |
from US $2.24 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[01.1996 - 12.1997] EP9#,NP90..CARAT,RFL,RFLF,RFLX BULB:12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[12.1997 -] EP91..3FC..(CARAT,RFL,RFLF) TYPE A OR TYPE B OR TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
83101-14040 |
US $3.02 |
||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[01.1996 - 12.1997] EP9#..CARAT,GLZS,GLZV,RFLF,RFLX OD=12.2 BLUE |
83101-32020 |
from US $2.22 |
||
|
83110
|
83110
83110-1G381 Speedometer Assy[01.1996 - 12.1997] EP9#..CARAT,RFLF,RFLX; NP90..5D..4FC ｱﾘ(ﾄﾘﾂﾌﾟ ﾒ-ﾀ-) |
83110-1G381 |
US $336.34 |
||
| replacement | |||||
|
83110
|
83110
83110-1G382 Speedometer Assy[01.1996 - 12.1997] EP9#..CARAT,RFLF,RFLX; NP90..5D..4FC ｱﾘ(ﾄﾘﾂﾌﾟ ﾒ-ﾀ-) |
83110-1G382 |
US $336.34 |
||
|
83110
|
83110
83220-10090 Speedometer Assy[12.1997 -] EP9#,NP90..RFL,RFLF |
83220-10090 |
US $381.47 |
||
|
83132
|
83132
83841-10100
Case, Combination Meter
[01.1996 - 08.1997] EP9#..CARAT,RFL,RFLF,RFLX |
83841-10100 |
— | ||
|
83132
|
83132
83841-10101
Case, Combination Meter
[08.1997 - 12.1997] EP9#..CARAT,RFL,RFLF,RFLX |
83841-10101 |
— | ||
|
83132
|
83132
83841-10290
Case, Combination Meter
[12.1997 -] EP9#..CARAT,RFL,RFLF |
83841-10290 |
— | ||
|
83133
|
83133
83811-10120
Plate, Combination Meter, No.1
[01.1996 - 12.1997] EP9#..RFLF,RFLX |
83811-10120 |
— | ||
|
83138
|
83138
83138-16630
Glass, Speedometer
[01.1996 - 12.1997] EP9#..CARAT,GLZS,GLZV,RFLF,RFLX |
83138-16630 |
— | ||
|
83243A
|
83243A
83882-10130 Gauge Sub-Assy, Fuel Receiver[01.1996 - 12.1997] NP90..4FC;EP91..ATM..(RFLF,RFLX) |
83882-10130 |
US $104.83 |
||
|
83243A
|
83243A
83882-10300 Gauge Sub-Assy, Fuel Receiver[12.1997 -] EP91,NP90..ATM..(RFL,RFLF) |
83882-10300 |
US $91.73 |
||
|
83244
|
83244
83883-10100 Gauge Sub-Assy, Water Temperature Receiver[01.1996 - 12.1997] EP9#,NP90..CARAT,RFL,RFLF,RFLX |
83883-10100 |
US $70.76 |
||
|
83244
|
83244
83883-10290 Gauge Sub-Assy, Water Temperature Receiver[12.1997 -] EP9#,NP90..RFL,RFLF |
83883-10290 |
US $70.76 |
||
|
83247
|
83247
83861-10100
Plate, Meter Circuit
[01.1996 - 08.1997] EP9#..CARAT,RFL,RFLF,RFLX |
83861-10100 |
— | ||
|
83247
|
83247
83861-10101
Plate, Meter Circuit
[08.1997 - 12.1997] EP9#..CARAT,RFL,RFLF,RFLX |
83861-10101 |
— | ||
|
83247
|
83247
83861-10290
Plate, Meter Circuit
[12.1997 -] EP9#,NP90..CARAT,RFL,RFLF |
83861-10290 |
— | ||
|
83853
|
83853
83853-10010 Joint Connector (For Alarmer)[01.1996 -] EP9#,NP90 |
83853-10010 |
US $5.68 |
||
|
83888
|
83888
83888-10010 Alarmer, Combination Meter[01.1996 -] EP9#,NP90 |
83888-10010 |
US $199.47 |
||
|
86650G
|
86650G
86650-12030
Chime, Speed Warning
[01.1996 -] EP9#,NP90 |
86650-12030 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900226
|
9009900226
90099-00226
New Genuine Part
|
90099-00226 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9015940027
|
9015940027
90159-40027 New Genuine Part |
90159-40027 |
US $0.76 |
||
|
9015950109
|
9015950109
90159-50109 New Genuine Part |
90159-50109 |
US $2.33 |
||
|
9016850041
|
9016850041
90168-50041 New Genuine Part |
90168-50041 |
US $1.76 |
||
