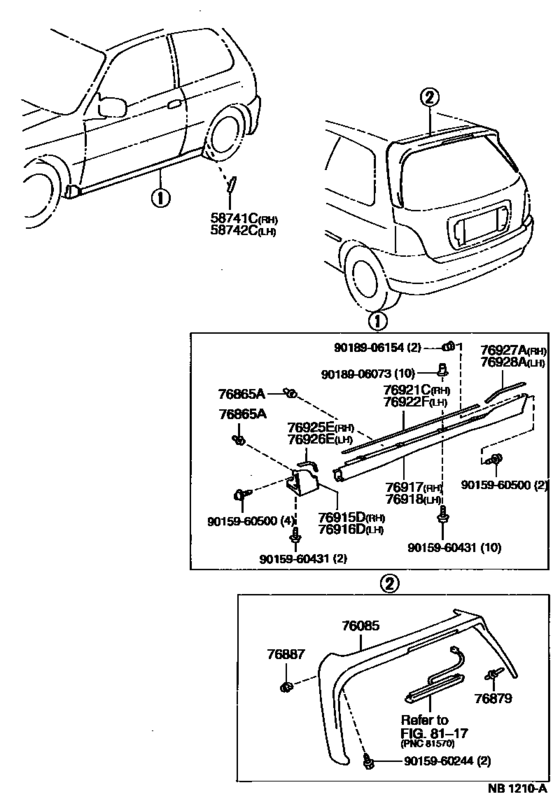

Mudguard & Spoiler ([01.1996 - ] (9601- )GLZS) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- EP91
- grade
- GLZS
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741C
|
58741C
58741-10050
Protector, Quarter Panel, Rh
[01.1996 -] EP9#,NP90..3D..(CARAT,GLZS,RFL,RFLF,RFLX) |
58741-10050 |
— | ||
|
58742C
|
58742C
58742-10050
Protector, Quarter Panel, Lh
[01.1996 -] EP9#,NP90..3D..(CARAT,GLZS,RFL,RFLF,RFLX) |
58742-10050 |
— | ||
|
76085
|
76085
76871-10900
Spoiler Sub-Assy, Rear
[01.1996 - 07.1999] EP91..GLZS,GLZV |
76871-10900 |
— | ||
|
76865A
|
76865A
75819-12040 Clip(For Rear Floor Finish Plate)[01.1996 -] EP91..GLZS,GLZV |
75819-12040 |
US $3.68 |
||
|
76879
|
76879
76879-10030 Clip, Rear Spoiler, No.1[01.1996 -] EP91..GLZS,GLZV |
76879-10030 |
US $7.04 |
||
|
76887
|
76887
76887-10040
Seal, Rear Spoiler
[01.1996 -] EP91..GLZS,GLZV |
76887-10040 |
— | ||
|
76915D
|
76915D
76911-10900
Mudguard, Side, Front Rh
[01.1996 - 07.1999] EP91..GLZS,GLZV |
76911-10900 |
— | ||
|
76916D
|
76916D
76912-10900
Mudguard, Side, Front Lh
[01.1996 - 07.1999] EP91..GLZS,GLZV |
76912-10900 |
— | ||
|
76917
|
76917
76625-10900 Mudguard, Side, Rear Rh[01.1996 -] EP91..GLZS,GLZV |
76625-10900 |
US $310.13 |
||
|
76918
|
76918
76626-10900 Mudguard, Side, Rear Lh[01.1996 -] EP91..GLZS,GLZV |
76626-10900 |
US $310.13 |
||
|
76921C
|
76921C
76921-10010
Protector, Side Mudguard, Rh
[01.1996 -] EP91..GLZS,GLZV |
76921-10010 |
— | ||
|
76922F
|
76922F
76921-10010
Protector, Side Mudguard, Rh
[01.1996 -] EP91..GLZS,GLZV |
76921-10010 |
— | ||
|
76925E
|
76925E
76925-10010
Protector, Side Mudguard, Front Rh
[01.1996 -] EP91..GLZS,GLZV |
76925-10010 |
— | ||
|
76926E
|
76926E
76925-10010
Protector, Side Mudguard, Front Rh
[01.1996 -] EP91..GLZS,GLZV |
76925-10010 |
— | ||
|
76927A
|
76927A
76922-10010 Protector, Side Mudguard, Rear Rh[01.1996 -] EP91..GLZS,GLZV |
76922-10010 |
US $12.75 |
||
|
76928A
|
76928A
76922-10010 Protector, Side Mudguard, Rear Rh[01.1996 -] EP91..GLZS,GLZV |
76922-10010 |
US $12.75 |
||
|
9015960244
|
9015960244
90159-60244
New Genuine Part
|
90159-60244 |
— | ||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.74 |
||
|
9018906073
|
9018906073
90189-06073 GROMMET |
90189-06073 |
US $1.44 |
||
|
9018906154
|
9018906154
90189-06154 GROMMET SCREW |
90189-06154 |
US $2.08 |
