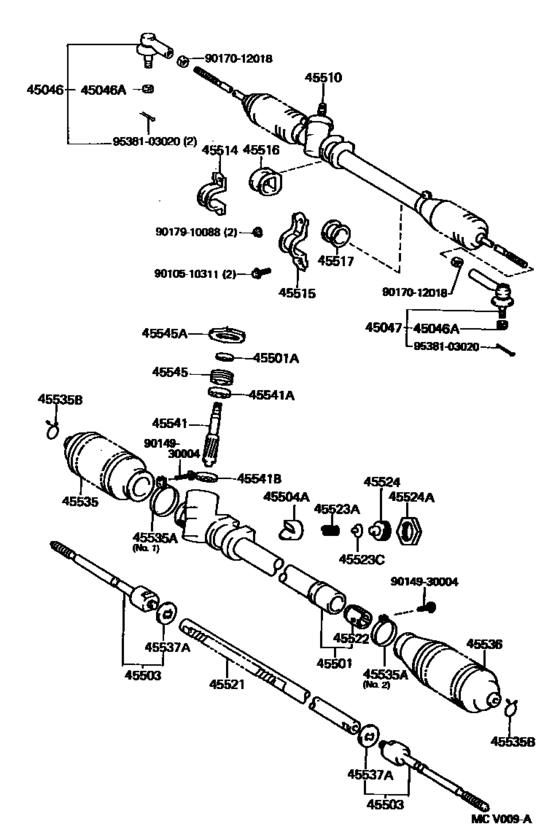

Front Steering Gear & Link ([01.1996 - ] (9601- )NP90 ; (9601- )EP9#..5D ; (9601- )EP9#..3D..GLZS,GLZV,RFL,RFLF,RFL X) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- EP91
- grade
- RFLX
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-19206 End Sub-Assy, Tie Rod[01.1996 - 07.1999] EP91,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX |
45046-19206 |
from US $42.80 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[01.1996 -] EP9#,NP90 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-19206 End Sub-Assy, Tie Rod[01.1996 - 07.1999] EP91,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX |
45046-19206 |
from US $42.80 |
||
|
45503
|
45503
45503-19185 End Sub-Assy, Steering Rack[01.1996 - 07.1999] EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX; EP91,NP90..RFL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45503-19185 |
US $87.36 |
||
|
45514
|
45514
45514-16060 Bracket, Steering Rack Housing, No.1[01.1996 - 07.1997] EP9#..CARAT,GLZS,GLZV,RFLF,RFLX; EP91,NP90..RFL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45514
|
45514
45514-16061 Bracket, Steering Rack Housing, No.1[01.1996 - 07.1997] EP9#..CARAT,GLZS,GLZV,RFLF,RFLX; EP91,NP90..RFL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45514-16061 |
US $8.30 |
||
|
45514
|
45514
45514-16061 Bracket, Steering Rack Housing, No.1[07.1997 -] NP90;EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45514-16060 Bracket, Steering Rack Housing, No.1[01.1996 - 07.1997] EP9#..CARAT,GLZS,GLZV,RFLF,RFLX; EP91,NP90..RFL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45515
|
45515
45514-16061 Bracket, Steering Rack Housing, No.1[01.1996 - 07.1997] EP9#..CARAT,GLZS,GLZV,RFLF,RFLX; EP91,NP90..RFL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45514-16061 Bracket, Steering Rack Housing, No.1[07.1997 -] NP90;EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45514-16061 |
US $8.30 |
||
|
45516
|
45516
45516-16060 Grommet, Steering Rack Housing, No.1[01.1996 -] EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX; EP91,NP90..RFL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45516-16060 |
from US $21.43 |
||
|
45517
|
45517
45517-10070 Grommet, Steering Rack Housing, No.2[01.1996 -] EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX; EP91,NP90..RFL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45517-10070 |
US $17.63 |
||
|
45523C
|
45523C
45542-12010
Spacer(For Rack Guide)
[01.1996 - 07.1999] EP9#,NP90 |
45542-12010 |
— | ||
|
45524
|
45524
45524-16050 Cap, Steering Rack Guide Spring[01.1996 - 07.1999] EP9#,NP90 |
45524-16050 |
US $29.56 |
||
|
45535
|
45535
45535-10060 Boot, Steering Rack, No.1[01.1996 - 07.1999] EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX; EP91,NP90..RFL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45535-10060 |
US $18.17 |
||
|
45535A
|
45535A
90461-08718 Clamp(For Power Steering Rack Boot)[09.1996 - 12.1997] EP9#..GLZS,GLZV,RFLF,RFLX; EP91,NP90..RFL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
90461-08718 |
US $4.89 |
||
|
45536
|
45536
45535-10060 Boot, Steering Rack, No.1[01.1996 - 07.1999] EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX; EP91,NP90..RFL ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
45535-10060 |
US $18.17 |
||
|
9010510311
|
9010510311
90105-10311 New Genuine Part |
90105-10311 |
US $2.62 |
||
|
9014930004
|
9014930004
90149-30004 Screw(For Steering Rack Boot Clamp) |
90149-30004 |
US $1.76 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
