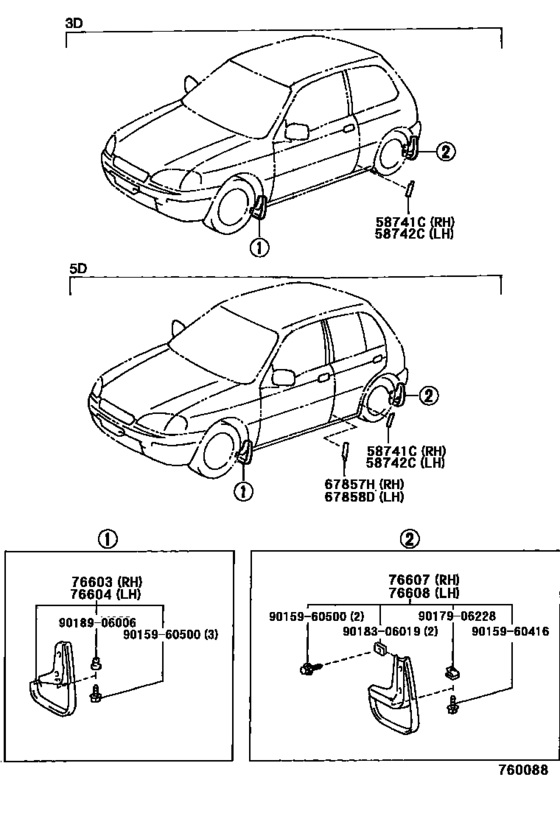

Mudguard & Spoiler ([01.1996 - ] (9601- )CARAT,RFL,RFLF,RFLX) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- EP91
- grade
- RFLX
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741C
|
58741C
58741-10060 Protector, Quarter Panel, Rh[01.1996 -] EP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX) |
58741-10060 |
US $11.07 |
||
|
58742C
|
58742C
58742-10060 Protector, Quarter Panel, Lh[01.1996 -] EP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX) |
58742-10060 |
US $11.07 |
||
|
67857H
|
67857H
67857-10030 Protector, Rear Door Panel, Rh[01.1996 -] EP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX) |
67857-10030 |
US $3.64 |
||
|
67858D
|
67858D
67858-10030 Protector, Rear Door Panel, Lh[01.1996 -] EP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX) |
67858-10030 |
US $3.64 |
||
|
76603
|
76603
76621-19305 Mudguard Sub-Assy, Front Fender, Rh[01.1996 -] EP9#,NP90..CARAT,RFL,RFLF,RFLX |
76621-19305 |
US $65.08 |
||
|
76604
|
76604
76622-19305
Mudguard Sub-Assy, Front Fender, Lh
[01.1996 -] EP9#,NP90..CARAT,RFL,RFLF,RFLX |
76622-19305 |
— | ||
|
76607
|
76607
76625-19595
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[01.1996 -] EP9#,NP90..RFL,RFLF,RFLX |
76625-19595 |
— | ||
|
76608
|
76608
76626-19595
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[01.1996 -] EP9#,NP90..RFL,RFLF,RFLX |
76626-19595 |
— | ||
|
9015960416
|
9015960416
90159-60416 SCREW |
90159-60416 |
from US $1.09 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.74 |
||
|
9017906228
|
9017906228
90179-06228 New Genuine Part |
90179-06228 |
US $1.60 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.82 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
