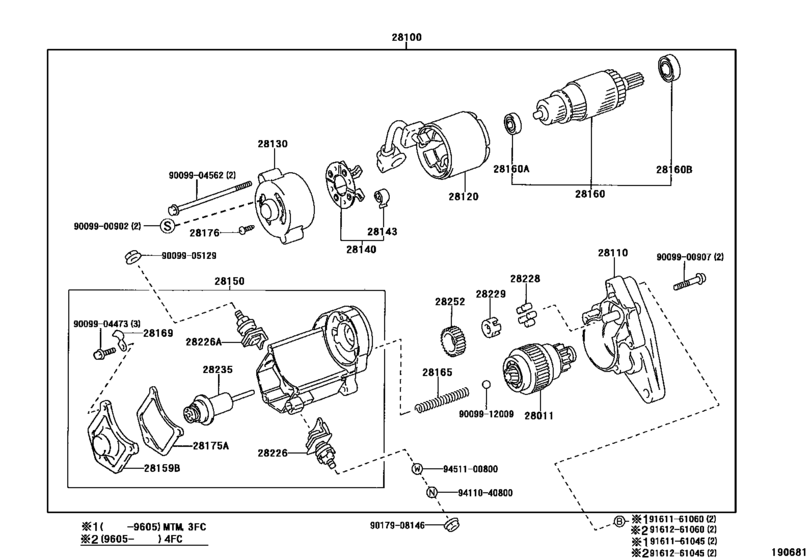

Starter ([01.1996 - 12.1997] 12V 1.0KW (9601-9712)4EF#) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- EP91
- grade
- RFLX
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[01.1996 - 12.1997] 4EF#..EP9# ｶﾝﾚｲﾁ ｼﾖｳ |
28011-26042 |
— | ||
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[01.1996 - 12.1997] 4EFE..EP9# |
28011-70020 |
US $43.51 |
||
|
28100
|
28100
28100-11090 Starter Assy[01.1996 - 12.1997] 4EFE..EP9#..4FC １２Ｖ ０．８ＫＷ |
28100-11090 |
US $899.81 |
||
|
28100
|
28100
28100-11110 Starter Assy[01.1996 - 12.1997] 4EF#..EP9#..4FC １２Ｖ １．０ＫＷ |
28100-11110 |
US $1,282.74 |
||
|
28100
|
28100
28100-11150 Starter Assy[12.1997 -] 4EF#..EP9#..4FC １２Ｖ ０．８ＫＷ |
28100-11150 |
US $899.81 |
||
|
28100
|
28100
28100-11170 Starter Assy[12.1997 -] 4EF#..EP9#..4FC １２Ｖ １．０ＫＷ |
28100-11170 |
US $1,090.54 |
||
|
28110
|
28110
28110-10060 Housing Assy, Starter Drive[01.1996 - 12.1997] 4EF#..EP9#..4FC ｶﾝﾚｲﾁ ｼﾖｳ |
28110-10060 |
US $81.54 |
||
|
28110
|
28110
28110-11020 Housing Assy, Starter Drive[01.1996 - 12.1997] 4EFE..EP9#..4FC |
28110-11020 |
US $80.08 |
||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[01.1996 - 12.1997] 4EF#..EP9# ｶﾝﾚｲﾁ ｼﾖｳ |
28120-26071 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[01.1996 - 12.1997] 4EFE..EP9# |
28120-70020 |
from US $98.61 |
||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[12.1997 -] 4EF#..EP9# ｶﾝﾚｲﾁ ｼﾖｳ |
28120-70050 |
— | ||
|
28130
|
28130
28130-10040
Frame Assy, Starter Commutator End
[01.1996 - 12.1997] 4EF#..EP9# ｶﾝﾚｲﾁ ｼﾖｳ |
28130-10040 |
— | ||
|
28130
|
28130
28130-11010
Frame Assy, Starter Commutator End
[01.1996 - 12.1997] 4EFE..EP9# |
28130-11010 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[01.1996 - 12.1997] 4EF#..EP9# ｶﾝﾚｲﾁ ｼﾖｳ |
28140-26070 |
US $16.77 |
||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[01.1996 - 12.1997] 4EFE..EP9# |
28140-70020 |
from US $22.19 |
||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[01.1996 - 12.1997] 4EFE..EP9# |
28143-70020 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[01.1996 - 12.1997] 4EF#..EP9# ｶﾝﾚｲﾁ ｼﾖｳ |
90099-17112 |
— | ||
|
28150
|
28150
28150-11080 Switch Assy, Magnet Starter[01.1996 - 12.1997] 4EFE..EP9# |
28150-11080 |
US $107.74 |
||
|
28150
|
28150
28150-11100 Switch Assy, Magnet Starter[01.1996 - 12.1997] 4EF#..EP9# ｶﾝﾚｲﾁ ｼﾖｳ |
28150-11100 |
US $126.67 |
||
|
28150
|
28150
28150-16160 Switch Assy, Magnet Starter[12.1997 -] 4EF#..EP9# |
28150-16160 |
US $125.22 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[01.1996 - 12.1997] 4EF#..EP9# |
28159-10040 |
— | ||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[01.1996 - 12.1997] 4EF#..EP9# ｶﾝﾚｲﾁ ｼﾖｳ |
28160-26071 |
— | ||
|
28160
|
28160
28160-70021 Armature Assy, Starter[01.1996 - 12.1997] 4EFE..EP9# |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[12.1997 -] 4EF#..EP9# ｶﾝﾚｲﾁ ｼﾖｳ |
28160-70050 |
US $161.62 |
||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[01.1996 - 12.1997] 4EF#..EP9# |
28253-45020 |
— | ||
|
28160B
|
28160B
90099-10113
Bearing, Starter Armature
[01.1996 - 12.1997] 4EF#..EP9# |
90099-10113 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[01.1996 - 12.1997] 4EF#..EP9# |
28165-26040 |
— | ||
|
28169
|
28169
28169-10040
Clamp, Starter Motor Lead Wire
[01.1996 - 12.1997] 4EF#..EP9# |
28169-10040 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[01.1996 - 12.1997] 4EF#..EP9# |
28175-10040 |
— | ||
|
28176
|
28176
90099-00270
Screw, Starter
[12.1997 -] 4EF#..EP9# |
90099-00270 |
— | ||
|
28226
|
28226
28226-72080
Starter Kit, Battery Terminal
[01.1996 - 12.1997] 4EF#..EP9# |
28226-72080 |
— | ||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[01.1996 - 12.1997] 4EF#,1N..EP9#,NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28226-72010 |
from US $10.49 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[01.1996 - 12.1997] 4EF#,1N..EP9#,NP90 |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[01.1996 - 12.1997] 4EF#..EP9# |
28229-26040 |
— | ||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[01.1996 - 12.1997] 4EF#..EP9# |
28235-35080 |
from US $25.68 |
||
|
28252
|
28252
28254-45020
Pinion, Starter Drive
[01.1996 - 12.1997] 4EF#..EP9# |
28254-45020 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.21 |
||
|
9161161060
|
9161161060
91611-61060
Bolt(for Clutch Release Cylinder Setting)
|
91611-61060 |
— | ||
| replacement | |||||
|
9161161060
|
9161161060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.21 |
||
|
9161261060
|
9161261060
91612-61060 Bolt(for Clutch Release Cylinder Setting) |
91612-61060 |
US $1.92 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
