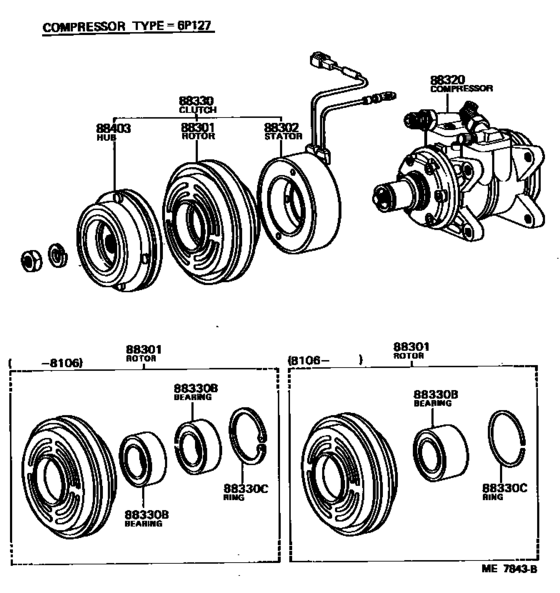

Heating & Air Conditioning - Compressor ([02.1978 - ] (7802- )) Diagram Toyota STARLET
- Year
- 1978 - 1980
- Sales region
- Japan
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KU
- TRANSMISSION
- MTM
- From
- 02.1978
- To
- 05.1980
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-12040
Rotor Sub-Assy, Magnet Clutch
[02.1978 - 05.1980] KP6# |
88412-12040 |
— | ||
|
88301
|
88301
88412-20060
Rotor Sub-Assy, Magnet Clutch
[05.1980 - 06.1981] KP6# |
88412-20060 |
— | ||
|
88302
|
88302
88411-14020
Stator Sub-Assy, Magnet Clutch
[02.1978 - 05.1980] KP6# |
88411-14020 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[02.1978 - 05.1980] KP6# |
88411-14050 |
— | ||
|
88302
|
88302
88411-22040
Stator Sub-Assy, Magnet Clutch
[05.1980 - 06.1981] KP6# |
88411-22040 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[05.1980 - 06.1981] KP6# |
88411-14050 |
— | ||
|
88320
|
88320
88320-10030
Compressor Assy, Cooler
[02.1978 - 05.1980] KP6# |
88320-10030 |
— | ||
|
88320
|
88320
88320-10041
Compressor Assy, Cooler
[05.1980 - 09.1984] KP61 COMPRESSOR TYPE:6P127 |
88320-10041 |
— | ||
|
88330
|
88330
88410-12080 Clutch Assy, MagnetMAGNET [02.1978 - 05.1980] KP6# |
88410-12080 |
US $550.37 |
||
| replacement | |||||
|
88330
|
88330
88410-14090 Clutch Assy, Magnet[02.1978 - 05.1980] KP6# |
88410-14090 |
US $551.82 |
||
|
88330
|
88330
88410-20130 Clutch Assy, MagnetMAGNET [05.1980 - 06.1981] KP6# |
88410-20130 |
US $499.41 |
||
| replacement | |||||
|
88330
|
88330
88410-14100 Clutch Assy, Magnet[05.1980 - 06.1981] KP6# |
88410-14100 |
US $502.32 |
||
|
88330B
|
88330B
90099-10117
Bearing, Magnet Clutch
[02.1978 - 06.1981] KP6# |
90099-10117 |
— | ||
| replacement | |||||
|
88330B
|
88330B
90099-10133 Bearing, Ball(For Clutch Pully)[02.1978 - 06.1981] KP6# |
90099-10133 |
US $12.15 |
||
|
88330C
|
88330C
90099-07094
Ring, Snap (For Magnet Clutch)
[02.1978 - 06.1981] KP6# |
90099-07094 |
— | ||
|
88403
|
88403
88403-22030
Hub Sub-Assy, Magnet Clutch
[05.1980 - 06.1981] KP6# |
88403-22030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[05.1980 - 06.1981] KP6# |
88403-12030 |
— | ||
|
88403
|
88403
88403-26030
Hub Sub-Assy, Magnet Clutch
[02.1978 - 05.1980] KP6# |
88403-26030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-30270
Hub Sub-Assy, Magnet Clutch
[02.1978 - 05.1980] KP6# |
88403-30270 |
— | ||
