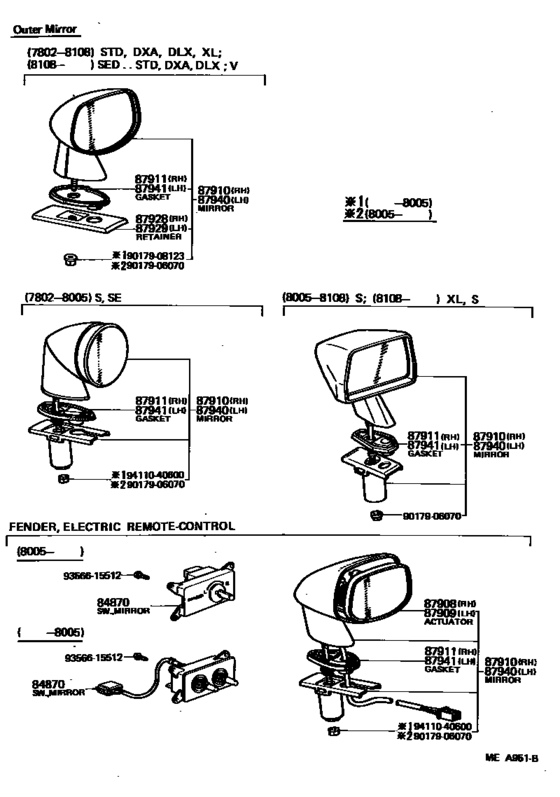

Mirror ([02.1978 - 08.1982] (7802-8208)) Diagram Toyota STARLET
- Year
- 1978 - 1980
- Sales region
- Japan
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KU
- TRANSMISSION
- MTM
- From
- 02.1978
- To
- 05.1980
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87910
|
87910
87910-19335
Mirror Assy, Outer Rear View, Rh
[02.1978 - 05.1980] KP6#..DLX,STD,XL |
87910-19335 |
— | ||
| replacement | |||||
|
87910
|
87910
87910-10090
Mirror Assy, Outer Rear View, Rh
[02.1978 - 05.1980] KP6#..DLX,STD,XL |
87910-10090 |
— | ||
|
87910
|
87910
87910-19336 Mirror Assy, Outer Rear View, RhOUTER REAR VIEW, RH [05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL |
87910-19336 |
US $58.53 |
||
| replacement | |||||
|
87910
|
87910
87910-10091 Mirror Assy, Outer Rear View, Rh[05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL |
87910-10091 |
US $55.62 |
||
|
87911
|
87911
87911-10030
Gasket, Outer Rear View Mirror, Rh
[02.1978 - 05.1980] KP6#..DLX,STD,XL IKI,MARK=256 |
87911-10030 |
— | ||
|
87911
|
87911
87911-10031 Gasket, Outer Rear View Mirror, RhOUTER REAR VIEW MIRROR, RH [05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL IKI,MARK=275 |
87911-10031 |
US $5.68 |
||
|
87911
|
87911
87911-10040
Gasket, Outer Rear View Mirror, Rh
[02.1978 - 05.1980] KP6#..DLX,STD,XL MURAKAMI,MARK=0431 |
87911-10040 |
— | ||
|
87911
|
87911
87911-10041
Gasket, Outer Rear View Mirror, Rh
[05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL MURAKAMI,MARK=0567 |
87911-10041 |
— | ||
|
87928
|
87928
67118-10030
Retainer, Outer Rear View Mirror, Rh
[02.1978 - 05.1980] KP6#..DLX,STD,XL IKI |
67118-10030 |
— | ||
|
87928
|
87928
67118-10031
Retainer, Outer Rear View Mirror, Rh
[05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL IKI |
67118-10031 |
— | ||
|
87928
|
87928
67118-10040
Retainer, Outer Rear View Mirror, Rh
[02.1978 - 05.1980] KP6#..DLX,STD,XL MURAKAMI |
67118-10040 |
— | ||
|
87928
|
87928
67118-10041
Retainer, Outer Rear View Mirror, Rh
[05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL MURAKAMI |
67118-10041 |
— | ||
|
87929
|
87929
67119-10020
Retainer, Outer Rear View Mirror, Lh
[02.1978 - 05.1980] KP6#..DLX,STD,XL IKI |
67119-10020 |
— | ||
|
87929
|
87929
67119-10021
Retainer, Outer Rear View Mirror, Lh
[05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL IKI |
67119-10021 |
— | ||
|
87929
|
87929
67119-10030
Retainer, Outer Rear View Mirror, Lh
[02.1978 - 05.1980] KP6#..DLX,STD,XL MURAKAMI |
67119-10030 |
— | ||
|
87929
|
87929
67119-10031
Retainer, Outer Rear View Mirror, Lh
[05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL MURAKAMI |
67119-10031 |
— | ||
|
87940
|
87940
87940-19335
Mirror Assy, Outer Rear View, Lh
[02.1978 - 05.1980] KP6#..DLX,STD,XL |
87940-19335 |
— | ||
| replacement | |||||
|
87940
|
87940
87940-10080
Mirror Assy, Outer Rear View, Lh
[02.1978 - 05.1980] KP6#..DLX,STD,XL |
87940-10080 |
— | ||
|
87940
|
87940
87940-19336 Mirror Assy, Outer Rear View, LhOUTER REAR VIEW, LH [05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL |
87940-19336 |
US $58.53 |
||
| replacement | |||||
|
87940
|
87940
87940-10081 Mirror Assy, Outer Rear View, Lh[05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL |
87940-10081 |
US $55.62 |
||
|
87941
|
87941
87941-10030
Gasket, Outer Rear View Mirror, Lh
[02.1978 - 05.1980] KP6#..DLX,STD,XL IKI,MARK=256 |
87941-10030 |
— | ||
|
87941
|
87941
87941-10031 Gasket, Outer Rear View Mirror, LhOUTER REAR VIEW MIRROR, LH [05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL IKI,MARK=275 |
87941-10031 |
US $5.68 |
||
|
87941
|
87941
87941-10040
Gasket, Outer Rear View Mirror, Lh
[02.1978 - 05.1980] KP6#..DLX,STD,XL MURAKAMI,MARK=0431 |
87941-10040 |
— | ||
|
87941
|
87941
87941-10041
Gasket, Outer Rear View Mirror, Lh
[05.1980 - 08.1981] KP6#..DLX,DXA,STD,XL MURAKAMI,MARK=0567 |
87941-10041 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.84 |
||
|
9356615512
|
9356615512
93566-15512
New Genuine Part
|
93566-15512 |
— | ||
| replacement | |||||
|
9356615512
|
9356615512
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
