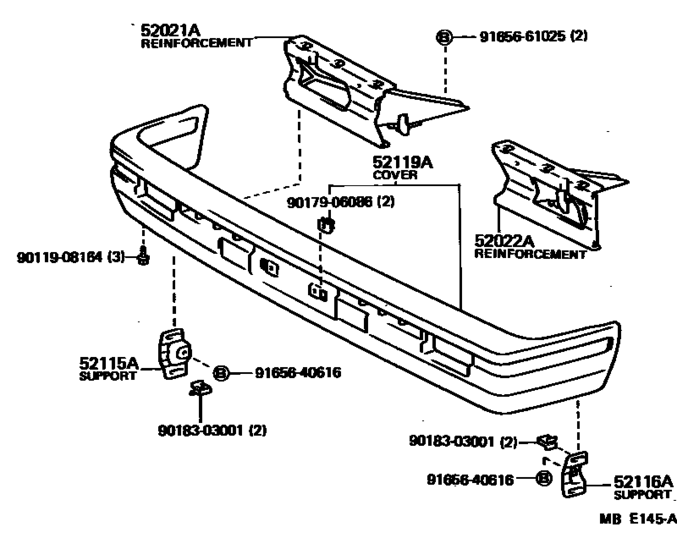

Front Bumper & Bumper Stay ([08.1982 - ] (8208- )) Diagram Toyota STARLET
- Year
- 1978 - 1984
- Sales region
- Japan
- Frame
- KP61
- grade
- S
- body
- SED
- ENGINE
- 4KU
- TRANSMISSION
- MTM
- From
- 02.1978
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021A
|
52021A
52021-10030
Reinforcement Sub-Assy, Front Bumper, Rh
[08.1982 - 09.1984] KP61 |
52021-10030 |
— | ||
|
52022A
|
52022A
52022-10010
Reinforcement Sub-Assy, Front Bumper, Lh
[08.1982 - 09.1984] KP61 |
52022-10010 |
— | ||
|
52115A
|
52115A
52115-10040
Support, Front Bumper Side, Rh
[08.1982 - 09.1984] KP61 |
52115-10040 |
— | ||
|
52115A
|
52115A
52115-10050 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [01.1983 - 09.1984] KP61..S,SI W/URETHANE BUMPER |
52115-10050 |
US $13.54 |
||
|
52116A
|
52116A
52116-10030
Support, Front Bumper Side, Lh
[08.1982 - 09.1984] KP61 |
52116-10030 |
— | ||
|
52116A
|
52116A
52116-10040 Support, Front Bumper Side, LhFRONT BUMPER SIDE, LH [01.1983 - 09.1984] KP61..S,SI W/URETHANE BUMPER |
52116-10040 |
US $13.54 |
||
|
52119A
|
52119A
52119-10020 Cover, Front Bumper[05.1980 - 08.1982] KP61..SED..(S,SE,XL) W/URETHANE BUMPER |
52119-10020 |
US $449.90 |
||
|
52119A
|
52119A
52119-10021 Cover, Front BumperFRONT BUMPER [01.1983 - 09.1984] KP61..S,SI W/URETHANE BUMPER |
52119-10021 |
US $487.76 |
||
|
52119A
|
52119A
52119-10040
Cover, Front Bumper
[08.1982 - 09.1984] KP61 |
52119-10040 |
— | ||
|
9011908164
|
9011908164
90119-08164
Bolt
|
90119-08164 |
— | ||
| replacement | |||||
|
9011908164
|
9011908164
90119-08802 BOLT WWASHER |
90119-08802 |
US $1.44 |
||
|
9017906086
|
9017906086
90179-06086 NUT |
90179-06086 |
from US $1.93 |
||
|
9018303001
|
9018303001
90183-03001
New Genuine Part
|
90183-03001 |
— | ||
| replacement | |||||
|
9018303001
|
9018303001
90468-04038 CLIP |
90468-04038 |
US $1.49 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9165661025
|
9165661025
91656-61025 Bolt(For Transaxle Case & Engine Setting) |
91656-61025 |
US $2.91 |
||
| replacement | |||||
|
9165661025
|
9165661025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
