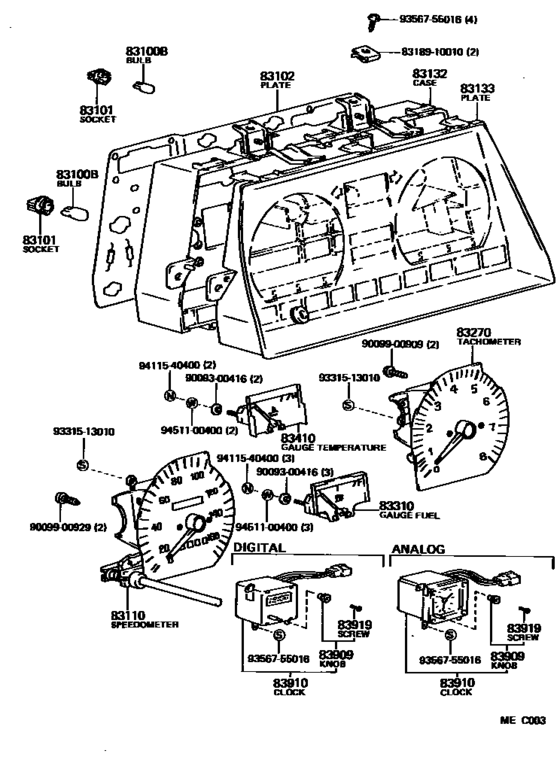

Meter ([08.1982 - ] (8208- )S,SE,SI) Diagram Toyota STARLET
- Year
- 1978 - 1984
- Sales region
- Japan
- Frame
- KP61
- grade
- S
- body
- SED
- ENGINE
- 4KU
- TRANSMISSION
- MTM
- From
- 02.1978
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-14030
Bulb, Combination Meter, No.1
[08.1982 - 09.1984] KP61..S,SI １２Ｖ ３．４Ｗ，アンバー キャップ,12V 3.4W,W/AMBER CAP |
83109-14030 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[02.1978 - 07.1978] KP61..S,SE,XL １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[02.1978 - 09.1984] KP6# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[02.1978 - 09.1984] KP6# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[02.1978 - 09.1984] KP6# 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[02.1978 - 07.1978] KP61..S,SE,XL 12V 1.4W |
83101-14040 |
US $2.98 |
||
|
83102
|
83102
83247-10010
Plate Sub-Assy, Combination Meter Circuit, No.1
[02.1978 - 05.1980] KP61..S,SE,XL 4-METER |
83247-10010 |
— | ||
|
83102
|
83102
83247-10270
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1982 - 09.1984] KP61..S,SE W/*CEW |
83247-10270 |
— | ||
| replacement | |||||
|
83102
|
83102
83247-10230
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1982 - 09.1984] KP61..S,SE W/*CEW |
83247-10230 |
— | ||
|
83102
|
83102
83247-10290
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1982 - 09.1984] KP61..S |
83247-10290 |
— | ||
| replacement | |||||
|
83102
|
83102
83247-10250
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1982 - 09.1984] KP61..S |
83247-10250 |
— | ||
|
83110
|
83110
83110-10330
Speedometer Assy
[05.1980 - 08.1982] KP6#..DLX,S,SE,XL |
83110-10330 |
— | ||
|
83110
|
83110
83110-10600
Speedometer Assy
[08.1982 - 09.1984] KP61..S,SI |
83110-10600 |
— | ||
|
83110
|
83110
83241-10010
Speedometer Assy
[02.1978 - 05.1980] KP6#..DLX,S,SE,XL |
83241-10010 |
— | ||
|
83132
|
83132
83132-10010
Case, Combination Meter
[02.1978 - 05.1980] KP61..S,SE,XL 4-METER |
83132-10010 |
— | ||
|
83132
|
83132
83132-10011
Case, Combination Meter
[05.1980 - 08.1982] KP61..S,SE 4-METER |
83132-10011 |
— | ||
|
83132
|
83132
83132-10130
Case, Combination Meter
[08.1982 - 09.1984] KP61..S |
83132-10130 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-10090
Case, Combination Meter
[08.1982 - 09.1984] KP61..S |
83132-10090 |
— | ||
|
83133
|
83133
83133-10390
Plate, Combination Meter, No.1
[08.1982 - 09.1984] KP61..S,SI W/*CEW |
83133-10390 |
— | ||
|
83133
|
83133
83133-10410
Plate, Combination Meter, No.1
[08.1982 - 09.1984] KP61..S,SI |
83133-10410 |
— | ||
|
83270
|
83270
83242-10010
Tachometer Assy, Engine
[02.1978 - 05.1980] KP61..S,SE,XL |
83242-10010 |
— | ||
|
83270
|
83270
83242-10011
Tachometer Assy, Engine
[05.1980 - 08.1982] KP61..S,SE |
83242-10011 |
— | ||
|
83270
|
83270
83242-10110
Tachometer Assy, Engine
[08.1982 - 09.1984] KP61..S |
83242-10110 |
— | ||
|
83310
|
83310
83243-10010
Gage Assy, Fuel Receiver
[02.1978 - 05.1980] KP61..S,SE,XL 4-METER |
83243-10010 |
— | ||
|
83310
|
83310
83243-10011
Gage Assy, Fuel Receiver
[05.1980 - 08.1982] KP61..S,SE 4-METER |
83243-10011 |
— | ||
|
83310
|
83310
83243-10110
Gage Assy, Fuel Receiver
[08.1982 - 09.1984] KP61..S,SI |
83243-10110 |
— | ||
|
83410
|
83410
83244-10010
Gage Assy, Water Temperature Receiver
[02.1978 - 08.1979] KP61..S,SE,XL 4-METER |
83244-10010 |
— | ||
|
83410
|
83410
83244-10011
Gage Assy, Water Temperature Receiver
[08.1979 - 05.1980] KP61..S,SE,XL 4-METER |
83244-10011 |
— | ||
|
83410
|
83410
83244-10012
Gage Assy, Water Temperature Receiver
[05.1980 - 08.1982] KP61..S,SE 4-METER |
83244-10012 |
— | ||
|
83410
|
83410
83244-10090 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [08.1982 - 09.1984] KP61..S,SI |
83244-10090 |
US $42.22 |
||
|
83909
|
83909
83909-10041 Knob, ClockCLOCK [07.1980 - 08.1982] KP6#..DLX,S,SE,XL |
83909-10041 |
US $4.22 |
||
|
83909
|
83909
83909-14012
Knob, Clock
[05.1980 - 07.1980] KP6#..DLX,S,SE,XL |
83909-14012 |
— | ||
|
83910
|
83910
83910-10030
Clock Assy
[02.1978 - 05.1980] KP6#..DLX,S,XL |
83910-10030 |
— | ||
|
83910
|
83910
83910-10040 Clock Assy[05.1980 - 07.1980] KP6#..DLX,S,SE,XL |
83910-10040 |
US $337.79 |
||
| replacement | |||||
|
83910
|
83910
83910-10041
Clock Assy
[05.1980 - 07.1980] KP6#..DLX,S,SE,XL |
83910-10041 |
— | ||
|
83910
|
83910
83910-10041
Clock Assy
[07.1980 - 08.1982] KP6#..DLX,S,SE,XL |
83910-10041 |
— | ||
|
83910
|
83910
83910-10090 Clock Assy[08.1982 - 09.1984] KP61..S,SI,XL |
83910-10090 |
US $337.79 |
||
|
83919
|
83919
83919-14012
Screw, Thermometer
[05.1980 - 08.1982] KP6#..DLX,S,SE,XL |
83919-14012 |
— | ||
|
8318910010
|
8318910010
83189-10010
Bracket, Meter
|
83189-10010 |
— | ||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9331513010
|
9331513010
93315-13010 New Genuine Part |
93315-13010 |
US $1.44 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
