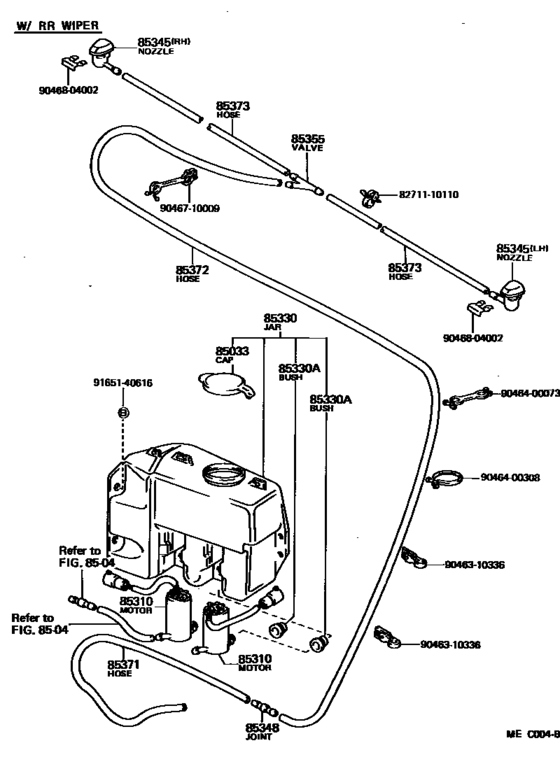

Windshield Washer ([08.1982 - ] (8208- )) Diagram Toyota STARLET
- Year
- 1978 - 1984
- Sales region
- Japan
- Frame
- KP61
- grade
- S
- body
- SED
- ENGINE
- 4KU
- TRANSMISSION
- MTM
- From
- 02.1978
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85332-10020
Cap Assy, Windshield Washer
[08.1982 - 04.1983] KP61..5D..DLX;KP61..SED..(S,SE,SI,XL) W/RR WIPER |
85332-10020 |
— | ||
|
85033
|
85033
85332-10070
Cap Assy, Windshield Washer
[02.1978 - 05.1980] KP6# |
85332-10070 |
— | ||
|
85033
|
85033
85332-60010
Cap Assy, Windshield Washer
[02.1978 - 05.1980] KP61..S,SE W/HEADLAMP CLEANER |
85332-60010 |
— | ||
|
85310
|
85310
85310-10090 Motor And Pump Assy, Windshield WasherHEADLAMP CLEANER WASHER [02.1978 - 05.1980] KP61..S,SE HEADLAMP CLEANER |
85310-10090 |
US $307.22 |
||
|
85310
|
85310
85310-20100
Motor And Pump Assy, Windshield Washer
[05.1980 - 08.1982] KP6# WASHER |
85310-20100 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[05.1980 - 08.1982] KP6# WASHER |
85310-22080 |
from US $49.97 |
||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[08.1982 - 04.1983] KP61..5D..DLX;KP61..SED..(S,SE,SI,XL) WASHER,W/RR WIPER |
85310-22080 |
from US $49.97 |
||
|
85310
|
85310
85310-60010
Motor And Pump Assy, Windshield Washer
[02.1978 - 05.1980] KP6# WASHER |
85310-60010 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-95700 Motor And Pump Assy, Windshield Washer[02.1978 - 05.1980] KP6# WASHER |
85310-95700 |
US $130.24 |
||
|
85330
|
85330
85330-10080
Jar Assy, Windshield Washer
[02.1978 - 05.1980] KP6# |
85330-10080 |
— | ||
|
85330
|
85330
85330-10081
Jar Assy, Windshield Washer
[05.1980 - 08.1982] KP6# |
85330-10081 |
— | ||
|
85330
|
85330
85330-10120
Jar Assy, Windshield Washer
[02.1978 - 05.1980] KP61..S,SE W/HEADLAMP CLEANER |
85330-10120 |
— | ||
|
85330
|
85330
85330-10122
Jar Assy, Windshield Washer
[05.1980 - 08.1981] KP61..S W/HEADLAMP CLEANER |
85330-10122 |
— | ||
|
85330
|
85330
85330-10190 Jar Assy, Windshield WasherWINDSHIELD WASHER [08.1982 - 04.1983] KP61..5D..DLX;KP61..SED..(S,SE,SI,XL) W/RR WIPER |
85330-10190 |
US $125.22 |
||
| replacement | |||||
|
85330
|
85330
85330-10200
Jar Assy, Windshield Washer
[08.1982 - 04.1983] KP61..5D..DLX;KP61..SED..(S,SE,SI,XL) W/RR WIPER |
85330-10200 |
— | ||
|
85330A
|
85330A
85336-10010 Bush, Windshield Washer Jar[02.1978 - 05.1980] KP61..S,SE HEADLAMP CLEANER |
85336-10010 |
US $5.76 |
||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.1980 - 09.1984] KP6# WASHER |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.1980 - 09.1984] KP6# WASHER |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.1980 - 09.1984] KP6# WASHER |
90068-32002 |
US $7.46 |
||
|
85345
|
85345
85035-10080
Nozzle, Windshield Washer
[02.1978 - 08.1982] KP6# |
85035-10080 |
— | ||
|
85345
|
85345
85345-10010
Nozzle, Windshield Washer
[08.1982 - 09.1984] KP61 RH |
85345-10010 |
— | ||
|
85345
|
85345
85346-10010
Nozzle, Windshield Washer
[08.1982 - 09.1984] KP61 LH |
85346-10010 |
— | ||
|
85348
|
85348
85355-10060
Joint, Windshield Washer Hose, No.1
[05.1980 - 08.1982] KP6# |
85355-10060 |
— | ||
| replacement | |||||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[05.1980 - 08.1982] KP6# |
85349-89122 |
from US $1.25 |
||
|
85348
|
85348
85355-87201
Joint, Windshield Washer Hose, No.1
[08.1982 - 09.1984] KP61 |
85355-87201 |
— | ||
| replacement | |||||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[08.1982 - 09.1984] KP61 |
85349-89122 |
from US $1.25 |
||
|
85355
|
85355
85031-30010 Valve Sub-Assy, Washer[05.1980 - 08.1982] KP6# |
85031-30010 |
from US $1.54 |
||
|
85355
|
85355
85355-14010
Joint, Windshield Washer Hose, No.1
[08.1982 - 09.1984] KP61 |
85355-14010 |
— | ||
| replacement | |||||
|
85355
|
85355
85348-12250 Joint, Windshield Washer Hose, No.1[08.1982 - 09.1984] KP61 |
85348-12250 |
from US $0.55 |
||
|
85371
|
85371
90446-06007
Hose, Windshield Washer (From Motor To Joint)
[02.1978 - 05.1980] KP6# |
90446-06007 |
— | ||
| replacement | |||||
|
85371
|
85371
90446-06006 Hose, Windshield Washer (From Motor To Joint)[02.1978 - 05.1980] KP6# |
90446-06006 |
from US $7.14 |
||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1982 - 04.1983] KP61..5D..DLX;KP61..SED..(S,SE,SI,XL) ＊Ｈ，Ｌ＝４７０,W/RR WIPER |
90446-06013 |
from US $0.70 |
||
|
85371
|
85371
90446-06020 Hose, Windshield Washer (From Motor To Joint)WINDSHIELD WASHER (FROM MOTOR TO JOINT) [05.1980 - 08.1982] KP6# |
90446-06020 |
US $3.93 |
||
| replacement | |||||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[05.1980 - 08.1982] KP6# |
90446-06013 |
from US $0.70 |
||
|
85372
|
85372
85343-10080 Hose, Windshield Washer (From Joint To Joint), No.1[05.1980 - 08.1982] KP6# ＊Ｈ，Ｌ＝１３１０ |
85343-10080 |
US $9.32 |
||
| replacement | |||||
|
85372
|
85372
90446-06006 Hose, Windshield Washer (From Motor To Joint)[05.1980 - 08.1982] KP6# ＊Ｈ，Ｌ＝１３１０ |
90446-06006 |
from US $7.14 |
||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1982 - 09.1984] KP61 長さ＝４５０ |
90446-06013 |
from US $0.70 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[05.1980 - 08.1982] KP6# ＊Ｈ，Ｌ＝８０ |
90446-06013 |
from US $0.70 |
||
|
8271110110
|
8271110110
82711-10110
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-10110 |
— | ||
|
9046310336
|
9046310336
90463-10336 CLAMP |
90463-10336 |
from US $1.37 |
||
|
9046400073
|
9046400073
90464-00073
Clamp(For Resistive Cord)
|
90464-00073 |
— | ||
|
9046400308
|
9046400308
90464-00308
New Genuine Part
|
90464-00308 |
— | ||
|
9046710009
|
9046710009
90467-10009 CLIP |
90467-10009 |
US $4.16 |
||
|
9046804002
|
9046804002
90468-04002 New Genuine Part |
90468-04002 |
US $1.14 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
