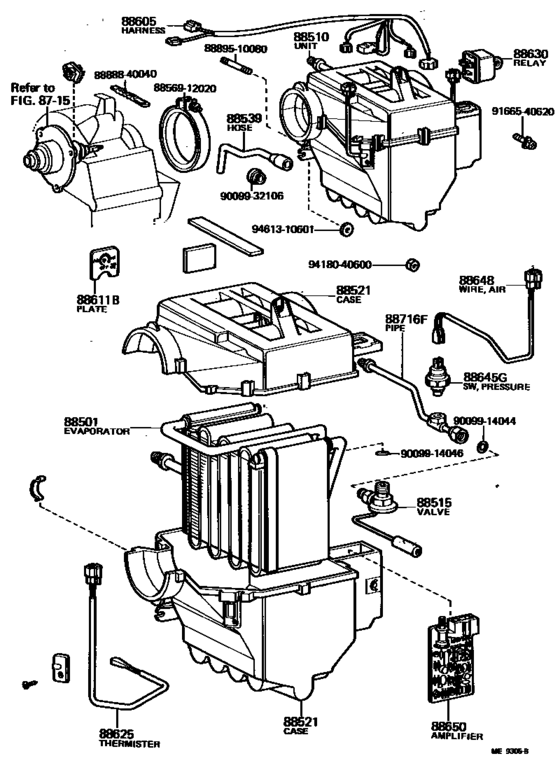

Heating & Air Conditioning - Cooler Unit ([08.1980 - 08.1982] (8008-8208)) Diagram Toyota STARLET
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1980
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-10042
Evaporator Sub-Assy, Cooler, No.1
[08.1980 - 08.1982] KP61..USA |
88501-10042 |
— | ||
|
88510
|
88510
88510-10060
Evaporator Sub-Assy, Cooler, No.1
[08.1980 - 08.1982] KP61..USA |
88510-10060 |
— | ||
|
88515
|
88515
88515-20040 Valve, Cooler Expansion[08.1980 - 08.1982] KP61..USA |
88515-20040 |
US $119.39 |
||
| replacement | |||||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[08.1980 - 08.1982] KP61..USA |
88515-16031 |
US $109.52 |
||
|
88521
|
88521
88521-10030
Case, Cooler Unit
[08.1980 - 08.1982] KP61..USA UPR |
88521-10030 |
— | ||
|
88521
|
88521
88521-10040
Case, Cooler Unit
[08.1980 - 08.1982] KP61..USA LWR |
88521-10040 |
— | ||
|
88539
|
88539
88539-10040
Hose, Cooler Unit Drain, No.1
[08.1980 - 08.1982] KP61..USA |
88539-10040 |
— | ||
|
88605
|
88605
88605-10080
Harness Sub-Assy, Cooler Wiring, No.1
[08.1980 - 08.1982] KP61..USA |
88605-10080 |
— | ||
|
88611B
|
88611B
88895-10070
Plate, Cooler Control Switch
[08.1980 - 08.1982] KP61..USA |
88895-10070 |
— | ||
|
88625
|
88625
88625-20060
Thermistor, Cooler, No.1
[08.1980 - 08.1982] KP61..USA |
88625-20060 |
— | ||
| replacement | |||||
|
88625
|
88625
88625-87001
Thermistor, Cooler, No.1
[08.1980 - 08.1982] KP61..USA |
88625-87001 |
— | ||
|
88645G
|
88645G
88645-22010
Switch, Pressure
[08.1980 - 08.1982] KP61..USA |
88645-22010 |
— | ||
| replacement | |||||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[08.1980 - 08.1982] KP61..USA |
88645-30250 |
— | ||
|
88648
|
88648
88648-10130
Wiring, Cooler, No.1
[08.1980 - 08.1982] KP61..USA |
88648-10130 |
— | ||
|
88650
|
88650
88650-20100
Amplifier Assy, Cooler Stabilizer
[08.1980 - 08.1982] KP61..USA |
88650-20100 |
— | ||
| replacement | |||||
|
88650
|
88650
88650-14051
Amplifier Assy, Cooler Stabilizer
[08.1980 - 08.1982] KP61..USA |
88650-14051 |
— | ||
|
88716F
|
88716F
88716-10230
Pipe, Cooler Refrigerant Liquid, F
[08.1980 - 08.1982] KP61..USA |
88716-10230 |
— | ||
|
8856912020
|
8856912020
88569-12020
Clamp (for Cooler Relay)
|
88569-12020 |
— | ||
|
8888840040
|
8888840040
88888-40040
Clamp (For Idle Up Divice), No.1
|
88888-40040 |
— | ||
|
8889510080
|
8889510080
88895-10080
Holder, Fuse
|
88895-10080 |
— | ||
|
9009914044
|
9009914044
90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose) |
90099-14044 |
US $0.70 |
||
|
9009914046
|
9009914046
90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose) |
90099-14046 |
US $0.55 |
||
|
9009932106
|
9009932106
90099-32106
New Genuine Part
|
90099-32106 |
— | ||
|
9166540620
|
9166540620
91665-40620
New Genuine Part
|
91665-40620 |
— | ||
| replacement | |||||
|
9166540620
|
9166540620
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.44 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
