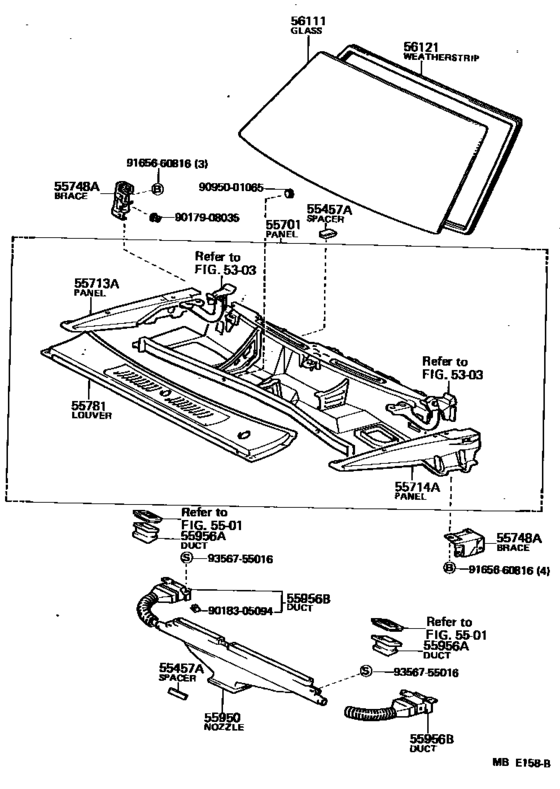

Cowl Panel & Windshield Glass ([08.1982 - ] (8208- )) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55457A
|
55457A
55457-10030
Spacer, Instrument Panel Safety Pad
[08.1982 - 12.1983] KP61 30 X 50 |
55457-10030 |
— | ||
|
55457A
|
55457A
55457-12020 Spacer, Safty Pad[08.1982 - 12.1983] KP61 16 X 105 |
55457-12020 |
US $2.48 |
||
|
55701
|
55701
55700-10080
Panel Sub-Assy, Cowl
[08.1980 - 08.1982] KP61 |
55700-10080 |
— | ||
|
55701
|
55701
55700-10081
Panel Sub-Assy, Cowl
[08.1982 - 12.1983] KP61 |
55700-10081 |
— | ||
|
55713A
|
55713A
55713-10031
Panel, Cowl Top Side, Rh
[08.1980 - 12.1983] KP61 |
55713-10031 |
— | ||
|
55714A
|
55714A
55714-10021
Panel, Cowl Top Side, Lh
[08.1980 - 12.1983] KP61 |
55714-10021 |
— | ||
|
55748A
|
55748A
55704-10050
Brace, Cowl Top Inner To Pillar
[08.1982 - 12.1983] KP61 RH |
55704-10050 |
— | ||
|
55748A
|
55748A
55748-10010
Brace, Cowl Top Inner To Pillar
[08.1980 - 08.1982] KP61 |
55748-10010 |
— | ||
|
55748A
|
55748A
55748-10020
Brace, Cowl Top Inner To Pillar
[08.1982 - 12.1983] KP61 LH |
55748-10020 |
— | ||
|
55781
|
55781
55711-10061
Louver, Cowl Ventilator
[08.1980 - 12.1983] KP61 |
55711-10061 |
— | ||
|
55950
|
55950
55950-10020
Nozzle Assy, Defroster
[08.1982 - 12.1983] KP61 |
55950-10020 |
— | ||
|
55956A
|
55956A
55970-10010 Duct, Side Defroster Nozzle, No.1SIDE DEFROSTER NOZZLE, NO.1 [08.1982 - 12.1983] KP61 RH |
55970-10010 |
US $10.34 |
||
|
55956A
|
55956A
55980-10010 Duct, Side Defroster Nozzle, No.1SIDE DEFROSTER NOZZLE, NO.1 [08.1982 - 12.1983] KP61 LH |
55980-10010 |
US $10.34 |
||
|
55956B
|
55956B
55093-10010
Duct, Side Defroster Nozzle, No.2
[08.1982 - 12.1983] KP61 RH |
55093-10010 |
— | ||
|
55956B
|
55956B
55094-10010
Duct, Side Defroster Nozzle, No.2
[08.1982 - 12.1983] KP61 LH |
55094-10010 |
— | ||
|
56111
|
56111
56111-10161
Glass, Windshield
[08.1980 - 08.1982] KP61 *LAM,T=5.3 |
56111-10161 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-10171
Glass, Windshield
[08.1980 - 08.1982] KP61 *LAM,T=5.3 |
56111-10171 |
— | ||
|
56111
|
56111
56111-10171
Glass, Windshield
[08.1981 - 08.1982] KP61 *TL,T=5.3 |
56111-10171 |
— | ||
|
56111
|
56111
56111-10180
Glass, Windshield
[08.1982 - 12.1983] KP61 *LAM,T=4.7 |
56111-10180 |
— | ||
|
56111
|
56111
56111-10190 Glass, Windshield[08.1982 - 12.1983] KP61 *TL,T=4.7 |
56111-10190 |
US $920.19 |
||
| replacement | |||||
|
56111
|
56111
56111-10171
Glass, Windshield
[08.1982 - 12.1983] KP61 *TL,T=4.7 |
56111-10171 |
— | ||
|
56121
|
56121
56121-10120
Weatherstrip, Windshield
[08.1980 - 12.1983] KP61 |
56121-10120 |
— | ||
|
9017908035
|
9017908035
90179-08035 New Genuine Part |
90179-08035 |
US $2.04 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9095001065
|
9095001065
90950-01065 Plug, Hole(For Front Fender Apron) |
90950-01065 |
US $4.48 |
||
|
9165660816
|
9165660816
91656-60816 Clamp Or Clip, Hose(for Radiator Outlet No.1) |
91656-60816 |
US $1.89 |
||
| replacement | |||||
|
9165660816
|
9165660816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
