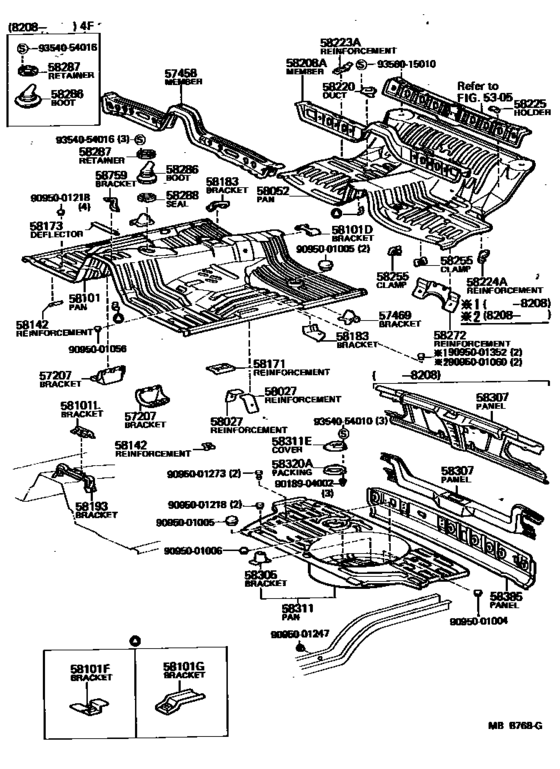

Floor Pan & Lower Back Panel ([08.1980 - ] (8008- )) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57207
|
57207
57207-10012
Bracket Sub-Assy, Engine Rear Mounting Member
[08.1981 - 12.1983] KP61 RH |
57207-10012 |
— | ||
|
57207
|
57207
57208-10022
Bracket Sub-Assy, Engine Rear Mounting Member
[08.1981 - 12.1983] KP61 LH |
57208-10022 |
— | ||
|
57458
|
57458
57408-10030
Member, Front Floor Cross, No.1
[04.1981 - 08.1982] KP61 |
57408-10030 |
— | ||
|
57458
|
57458
57408-10031
Member, Front Floor Cross, No.1
[08.1982 - 12.1983] KP61 |
57408-10031 |
— | ||
|
57469
|
57469
57468-10011 Bracket, Front Seat, OutsideFRONT SEAT, OUTSIDE [08.1980 - 12.1983] KP61 RH |
57468-10011 |
US $20.09 |
||
|
57469
|
57469
57469-10011
Bracket, Front Seat, Outside
[08.1980 - 12.1983] KP61 LH |
57469-10011 |
— | ||
|
58027
|
58027
58161-10021
Reinforcement, Belt Anchor To Floor Pan, No.1
[08.1980 - 12.1983] KP61 |
58161-10021 |
— | ||
|
58052
|
58052
58211-10111
Pan Sub-Assy, Center Floor
[08.1980 - 12.1983] KP61 |
58211-10111 |
— | ||
|
58101
|
58101
58111-10042
Pan Sub-Assy, Front Floor
[08.1981 - 12.1983] KP61 |
58111-10042 |
— | ||
|
58101D
|
58101D
58264-10020
Bracket, Parking Brake Cable Guide
[08.1980 - 12.1983] KP61 |
58264-10020 |
— | ||
|
58101F
|
58101F
58236-14010 Bracket, Mounting, Floor, No.1[08.1980 - 12.1983] KP61 |
58236-14010 |
US $9.17 |
||
|
58101G
|
58101G
58132-10010
Bracket, Mounting, Floor, No.3
[08.1980 - 12.1983] KP61 |
58132-10010 |
— | ||
|
58101L
|
58101L
58991-10030
Bracket, Mounting, Floor, No.6
[08.1982 - 12.1983] KP61 |
58991-10030 |
— | ||
|
58142
|
58142
58141-10020
Reinforcement, Floor Side Member To Floor Pan
[08.1980 - 12.1983] KP61 |
58141-10020 |
— | ||
|
58171
|
58171
58171-12030
Reinforcement, Parking Brake Base
[08.1980 - 12.1983] KP61 |
58171-12030 |
— | ||
|
58173
|
58173
58173-10020
Deflector, Front Floor Stone
[08.1980 - 12.1983] KP61 |
58173-10020 |
— | ||
|
58183
|
58183
58104-10020
Bracket, Front Seat Mounting, Inner
[08.1980 - 12.1983] KP61 LH |
58104-10020 |
— | ||
|
58183
|
58183
58183-10031
Bracket, Front Seat Mounting, Inner
[08.1980 - 12.1983] KP61 RH |
58183-10031 |
— | ||
|
58193
|
58193
58193-10020
Bracket, Instrument Panel Brace Mounting
[08.1982 - 12.1983] KP61 |
58193-10020 |
— | ||
|
58208A
|
58208A
57407-10060
Member, Center Floor Cross, No.1
[08.1980 - 08.1982] KP61 |
57407-10060 |
— | ||
|
58208A
|
58208A
57461-10021
Member, Center Floor Cross, No.1
[08.1982 - 12.1983] KP61 |
57461-10021 |
— | ||
|
58220
|
58220
58220-10010
Duct Assy, Center Floor Vent
[08.1980 - 12.1983] KP61 |
58220-10010 |
— | ||
|
58223A
|
58223A
58213-10010
Reinforcement, Floor Side Panel, Rh
[08.1980 - 12.1983] KP61 |
58213-10010 |
— | ||
|
58224A
|
58224A
58214-10010
Reinforcement, Floor Side Panel, Lh
[08.1980 - 12.1983] KP61 |
58214-10010 |
— | ||
|
58225
|
58225
58225-10010
Holder, Rear Seat Cushion
[08.1980 - 12.1983] KP61 |
58225-10010 |
— | ||
|
58255
|
58255
58207-10060
Clamp, Parking Brake Cable, No.1
[08.1980 - 12.1983] KP61 RH |
58207-10060 |
— | ||
|
58255
|
58255
58208-10080
Clamp, Parking Brake Cable, No.1
[08.1980 - 12.1983] KP61 LH |
58208-10080 |
— | ||
|
58272
|
58272
58270-10020
Reinforcement, Belt Anchor To Floor Pan
[08.1980 - 12.1983] KP61 |
58270-10020 |
— | ||
|
58286
|
58286
58286-10020 Boot, Shift & Select Lever, No.1SHIFT & SELECT LEVER, NO.1 [08.1980 - 12.1983] KP61..5F |
58286-10020 |
US $32.47 |
||
|
58287
|
58287
58287-10020
Retainer, Shift Lever Boot
[08.1980 - 12.1983] KP61 |
58287-10020 |
— | ||
|
58288
|
58288
58288-10031
Seal, Shift Lever Boot
[08.1981 - 08.1982] KP61 |
58288-10031 |
— | ||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[08.1980 - 12.1983] KP61 |
58305-10011 |
US $4.54 |
||
|
58307
|
58307
58307-10132 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [08.1982 - 12.1983] KP61 |
58307-10132 |
US $295.57 |
||
|
58307
|
58307
58307-10210 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [08.1980 - 08.1982] KP61 |
58307-10210 |
US $264.99 |
||
|
58311
|
58311
58301-10120
Pan, Rear Floor
[08.1981 - 08.1982] KP61 |
58301-10120 |
— | ||
| replacements | |||||
|
58311
|
58311
90950-01826 Plug, Hole(For Floor Panel)[08.1981 - 08.1982] KP61 |
90950-01826 |
from US $2.24 |
||
|
58311
|
58311
58301-10121
Pan, Rear Floor
[08.1981 - 08.1982] KP61 |
58301-10121 |
— | ||
|
58311
|
58311
58301-10121
Pan, Rear Floor
[08.1982 - 12.1983] KP61 |
58301-10121 |
— | ||
|
58311E
|
58311E
58325-10010
Cover, Rear Floor Service Hole
[08.1980 - 12.1983] KP61 |
58325-10010 |
— | ||
|
58320A
|
58320A
58339-10020 Packing, Rear Floor Service HoleREAR FLOOR SERVICE HOLE [08.1980 - 09.1982] KP61 |
58339-10020 |
US $11.07 |
||
| replacement | |||||
|
58320A
|
58320A
58339-10021
Packing, Rear Floor Service Hole
[08.1980 - 09.1982] KP61 |
58339-10021 |
— | ||
|
58320A
|
58320A
58339-10021
Packing, Rear Floor Service Hole
[09.1982 - 12.1983] KP61 |
58339-10021 |
— | ||
|
58385
|
58385
58308-10030 Panel, Rear ValanceREAR VALANCE [08.1980 - 10.1983] KP61 |
58308-10030 |
US $237.33 |
||
| replacement | |||||
|
58385
|
58385
58308-10040 Panel, Rear ValanceREAR VALANCE [08.1980 - 10.1983] KP61 |
58308-10040 |
US $235.87 |
||
|
58385
|
58385
58308-10040 Panel, Rear ValanceREAR VALANCE [10.1983 - 12.1983] KP61 |
58308-10040 |
US $235.87 |
||
|
58759
|
58759
58125-10031
Bracket, Cowl Top Inner Stay Mounting
[08.1981 - 08.1982] KP61 |
58125-10031 |
— | ||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $1.92 |
||
|
9095001004
|
9095001004
90950-01004
Plug, Hole(For Front Door Panel)
|
90950-01004 |
— | ||
| replacement | |||||
|
9095001004
|
9095001004
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001218
|
9095001218
90950-01218 New Genuine Part |
90950-01218 |
US $1.75 |
||
|
9095001247
|
9095001247
90950-01247 New Genuine Part |
90950-01247 |
US $1.31 |
||
|
9095001273
|
9095001273
90950-01273
New Genuine Part
|
90950-01273 |
— | ||
|
9095001352
|
9095001352
90950-01352 New Genuine Part |
90950-01352 |
US $4.32 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
|
9354054016
|
9354054016
93540-54016 SCREW |
93540-54016 |
from US $0.78 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.28 |
||
