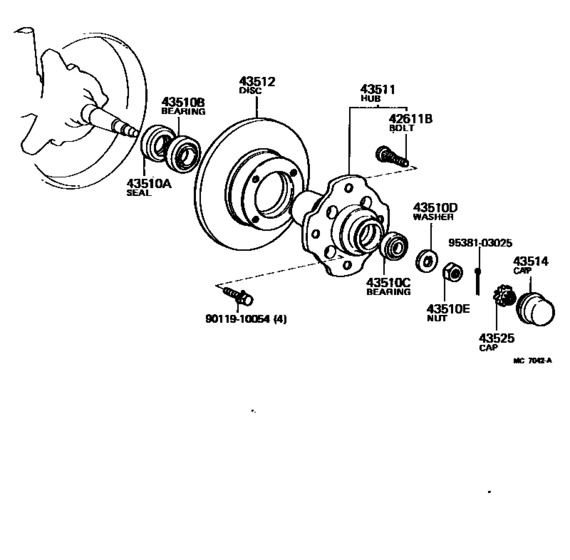

Front Axle Hub ([08.1980 - ] (8008- )) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42611B
|
42611B
90942-02036 Bolt, Hub (For Front Axle)[08.1980 - 06.1983] KP61 |
90942-02036 |
US $3.35 |
||
| replacement | |||||
|
42611B
|
42611B
90942-02048 Bolt, Hub (For Front Axle)[08.1980 - 06.1983] KP61 |
90942-02048 |
US $7.36 |
||
|
42611B
|
42611B
90942-02048 Bolt, Hub (For Front Axle)[06.1983 - 12.1983] KP61 |
90942-02048 |
US $7.36 |
||
|
43510A
|
43510A
90311-40108 Seal, Oil (For Front Axle Hub)OIL (FOR FRONT AXLE HUB) [08.1980 - 12.1983] KP61 |
90311-40108 |
US $5.60 |
||
|
43510B
|
43510B
90368-26027
Bearing, Tapered Roller (For Front Axle Inner Bearing)
[08.1980 - 12.1983] KP61 |
90368-26027 |
— | ||
|
43510C
|
43510C
90368-17017 Bearing (For Rear Axle Shaft Outer)[08.1980 - 12.1983] KP61 |
90368-17017 |
from US $24.47 |
||
|
43510D
|
43510D
90214-16010 Washer, Claw (For Rear Axle Shaft)[08.1980 - 12.1983] KP61 |
90214-16010 |
from US $1.56 |
||
|
43510E
|
43510E
90170-16137
Nut, Hexagon (For Drive Pinion Extension Shaft)
[08.1980 - 12.1983] KP61 |
90170-16137 |
— | ||
| replacement | |||||
|
43510E
|
43510E
94125-41600 Nut (For Rear Axle Shaft)[08.1980 - 12.1983] KP61 |
94125-41600 |
from US $1.44 |
||
|
43511
|
43511
43502-10010 Hub, Front AxleFRONT AXLE [08.1980 - 12.1983] KP61 |
43502-10010 |
US $174.72 |
||
|
43512
|
43512
43512-10050
Disc, Front
[08.1980 - 12.1983] KP61 |
43512-10050 |
— | ||
|
43514
|
43514
43514-12010
Cap, Rear Hub Grease
[08.1980 - 12.1983] KP61 |
43514-12010 |
— | ||
|
43525
|
43525
43525-20011 Cap, Front Wheel Adjusting Lock[08.1980 - 12.1983] KP61 |
43525-20011 |
from US $3.68 |
||
|
9011910054
|
9011910054
90119-10054 BOLT |
90119-10054 |
US $2.08 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
