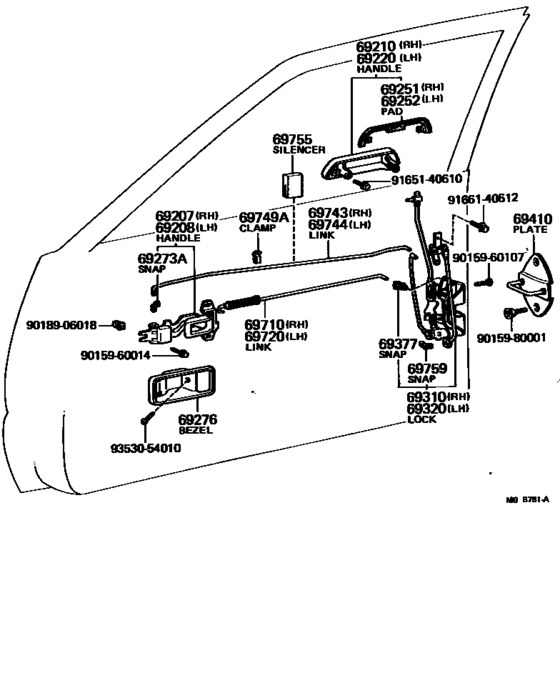

Front Door Lock & Handle ([08.1980 - ] (8008- )) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69207
|
69207
69205-10010-01 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [08.1980 - 08.1982] KP61 BLACK,BLACK |
69205-10010-01 |
US $41.35 |
||
|
69207
|
69207
69205-10010-03
Handle Sub-Assy, Front Door Inside, Rh
[08.1982 - 12.1983] KP61 GRAY,GRAY |
69205-10010-03 |
— | ||
|
69207
|
69207
69205-10010-06
Handle Sub-Assy, Front Door Inside, Rh
[08.1980 - 08.1982] KP61 LIGHT BROWN,BROWN |
69205-10010-06 |
— | ||
|
69207
|
69207
69205-10010-16
Handle Sub-Assy, Front Door Inside, Rh
[08.1982 - 12.1983] KP61 BROWN,BROWN |
69205-10010-16 |
— | ||
|
69208
|
69208
69206-10010-01
Handle Sub-Assy, Front Door Inside, Lh
[08.1980 - 08.1982] KP61 BLACK,BLACK |
69206-10010-01 |
— | ||
|
69208
|
69208
69206-10010-03
Handle Sub-Assy, Front Door Inside, Lh
[08.1982 - 12.1983] KP61 GRAY,GRAY |
69206-10010-03 |
— | ||
|
69208
|
69208
69206-10010-06 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [08.1980 - 08.1982] KP61 LIGHT BROWN,BROWN |
69206-10010-06 |
US $50.09 |
||
|
69208
|
69208
69206-10010-16
Handle Sub-Assy, Front Door Inside, Lh
[08.1982 - 12.1983] KP61 BROWN,BROWN |
69206-10010-16 |
— | ||
|
69210
|
69210
69210-10041
Handle Assy, Front Door, Outside Rh
[08.1980 - 12.1983] KP61 BLACK |
69210-10041 |
— | ||
|
69220
|
69220
69220-10041
Handle Assy, Front Door Outside, Lh
[08.1980 - 12.1983] KP61 BLACK |
69220-10041 |
— | ||
|
69251
|
69251
69241-10030
Pad, Front Door Outside Handle, Front Rh
[08.1980 - 12.1983] KP61 |
69241-10030 |
— | ||
|
69252
|
69252
69241-10030
Pad, Front Door Outside Handle, Front Rh
[08.1980 - 12.1983] KP61 |
69241-10030 |
— | ||
|
69273A
|
69273A
69273-10010 Snap, Door Inside Handle Rod(For Front Door)DOOR INSIDE HANDLE ROD(FOR FRONT DOOR) [08.1980 - 12.1983] KP61 |
69273-10010 |
US $4.22 |
||
|
69276
|
69276
69276-20011-01 Bezel, Front Door Inside Handle (Black)[08.1980 - 08.1982] KP61 BLACK,BLACK |
69276-20011-01 |
from US $8.56 |
||
|
69276
|
69276
69276-20011-03
Bezel, Front Door Inside Handle
[08.1982 - 12.1983] KP61 GRAY,GRAY |
69276-20011-03 |
— | ||
|
69276
|
69276
69276-20011-36
Bezel, Front Door Inside Handle
[08.1980 - 08.1982] KP61 LIGHT BROWN,BROWN |
69276-20011-36 |
— | ||
| replacement | |||||
|
69276
|
69276
69276-20011-01 Bezel, Front Door Inside Handle (Black)[08.1980 - 08.1982] KP61 LIGHT BROWN,BROWN |
69276-20011-01 |
from US $8.56 |
||
|
69276
|
69276
69276-20011-46 Bezel, Front Door Inside HandleFRONT DOOR INSIDE HANDLE [08.1982 - 12.1983] KP61 BROWN,BROWN |
69276-20011-46 |
US $8.01 |
||
| replacement | |||||
|
69276
|
69276
69276-20011-01 Bezel, Front Door Inside Handle (Black)[08.1982 - 12.1983] KP61 BROWN,BROWN |
69276-20011-01 |
from US $8.56 |
||
|
69310
|
69310
69310-10061
Lock Assy, Front Door, Rh
[04.1981 - 08.1982] KP61 |
69310-10061 |
— | ||
|
69310
|
69310
69310-10100
Lock Assy, Front Door, Rh
[08.1982 - 12.1983] KP61 |
69310-10100 |
— | ||
|
69320
|
69320
69320-10061
Lock Assy, Front Door, Lh
[04.1981 - 08.1982] KP61 |
69320-10061 |
— | ||
|
69320
|
69320
69320-10100
Lock Assy, Front Door, Lh
[08.1982 - 12.1983] KP61 |
69320-10100 |
— | ||
|
69377
|
69377
69377-30020
Snap, Door Lock Control Rod
[08.1980 - 12.1983] KP61 |
69377-30020 |
— | ||
|
69410
|
69410
69410-10010
Plate Assy, Front Door Lock Striker
[08.1982 - 12.1983] KP61 |
69410-10010 |
— | ||
|
69410
|
69410
69410-22020 Plate Assy, Front Door Lock Striker[08.1980 - 08.1982] KP61 |
69410-22020 |
US $14.71 |
||
| replacement | |||||
|
69410
|
69410
69410-89103
Plate Assy, Front Door Lock Striker
[08.1980 - 08.1982] KP61 |
69410-89103 |
— | ||
|
69710
|
69710
69710-10040 Link Assy, Front Door Open Control, RhFRONT DOOR OPEN CONTROL, RH [08.1980 - 12.1983] KP61 |
69710-10040 |
US $14.85 |
||
|
69720
|
69720
69720-10040
Link Assy, Front Door Open Control, Lh
[08.1980 - 12.1983] KP61 |
69720-10040 |
— | ||
|
69743
|
69743
69733-10010 Link, Front Door Locking Control, No.1 RhFRONT DOOR LOCKING CONTROL, NO.1 RH [08.1980 - 12.1983] KP61 |
69733-10010 |
US $9.32 |
||
|
69744
|
69744
69734-10010
Link, Front Door Locking Control, No.1 Lh
[08.1980 - 12.1983] KP61 |
69734-10010 |
— | ||
|
69749A
|
69749A
69749-30020 Clamp, No.1(For Back Door Lock Control Cable)[07.1982 - 12.1983] KP61 |
69749-30020 |
US $4.48 |
||
|
69755
|
69755
69759-10030 Silencer, Front Door Lock LinkFRONT DOOR LOCK LINK [08.1980 - 12.1983] KP61 40X50,W/SLIT |
69759-10030 |
US $3.06 |
||
|
69755
|
69755
69759-10040 Silencer, Front Door Lock Link[04.1981 - 12.1983] KP61 40X40 |
69759-10040 |
US $2.62 |
||
|
69759
|
69759
69759-12030 Snap, Door Lock Control Link, No.1[08.1980 - 12.1983] KP61 |
69759-12030 |
US $2.77 |
||
|
9015960014
|
9015960014
90159-60014 New Genuine Part |
90159-60014 |
US $2.18 |
||
|
9015960107
|
9015960107
90159-60107 New Genuine Part |
90159-60107 |
US $0.73 |
||
|
9015980001
|
9015980001
90159-80001
SCREW
|
90159-80001 |
— | ||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9166140612
|
9166140612
91661-40612 New Genuine Part |
91661-40612 |
US $2.08 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.80 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
