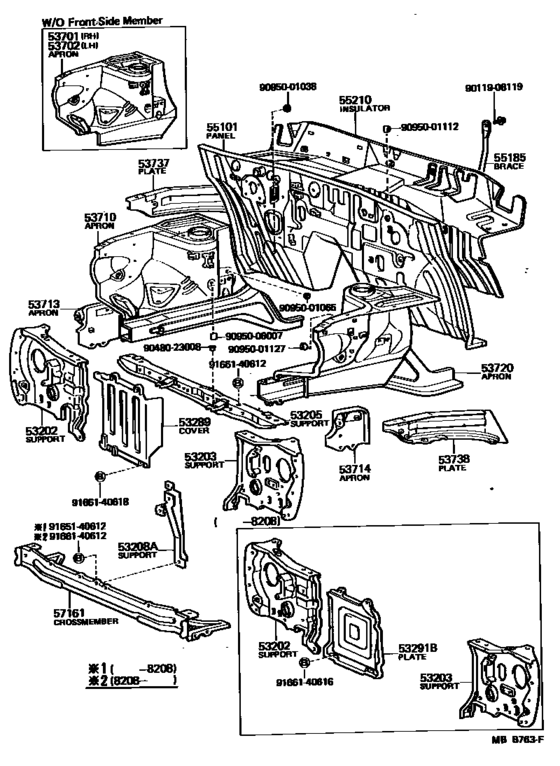

Front Fender Apron & Dash Panel ([08.1980 - ] (8008- )) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53202-10053 Support Sub-Assy, Radiator, RhRADIATOR, RH [08.1982 - 12.1983] KP61 |
53202-10053 |
US $152.88 |
||
|
53202
|
53202
53202-10081 Support Sub-Assy, Radiator, Rh[08.1981 - 08.1982] KP61 |
53202-10081 |
US $126.67 |
||
|
53203
|
53203
53203-10081
Support Sub-Assy, Radiator, Lh
[08.1981 - 08.1982] KP61 |
53203-10081 |
— | ||
|
53203
|
53203
53203-10082 Support Sub-Assy, Radiator, LhRADIATOR, LH [08.1982 - 12.1983] KP61 |
53203-10082 |
US $152.88 |
||
| replacement | |||||
|
53203
|
53203
53203-10063
Support Sub-Assy, Radiator, Lh
[08.1982 - 12.1983] KP61 |
53203-10063 |
— | ||
|
53205
|
53205
53205-10110
Support Sub-Assy, Radiator, Upper
[10.1980 - 08.1982] KP61 |
53205-10110 |
— | ||
|
53205
|
53205
53205-10111
Support Sub-Assy, Radiator, Upper
[08.1982 - 12.1983] KP61 |
53205-10111 |
— | ||
|
53208A
|
53208A
53208-10011 Support Sub-Assy, Hood LockHOOD LOCK [08.1980 - 08.1982] KP61 |
53208-10011 |
US $27.08 |
||
|
53208A
|
53208A
53208-10012
Support Sub-Assy, Hood Lock
[08.1982 - 12.1983] KP61 |
53208-10012 |
— | ||
|
53289
|
53289
53289-10020
Cover, Radiator Side Baffle
[08.1982 - 12.1983] KP61 |
53289-10020 |
— | ||
|
53291B
|
53291B
53291-10010
Plate, Radiator Cover
[08.1980 - 08.1982] KP61 |
53291-10010 |
— | ||
|
53701
|
53701
53701-10903
Apron Sub-Assy, Front Fender, Rh
[08.1980 - 08.1982] KP61 |
53701-10903 |
— | ||
|
53701
|
53701
53701-10911
Apron Sub-Assy, Front Fender, Rh
[08.1982 - 12.1983] KP61 |
53701-10911 |
— | ||
|
53702
|
53702
53702-10902
Apron Sub-Assy, Front Fender, Lh
[08.1980 - 08.1982] KP61 |
53702-10902 |
— | ||
|
53702
|
53702
53702-10913
Apron Sub-Assy, Front Fender, Lh
[08.1982 - 12.1983] KP61 |
53702-10913 |
— | ||
|
53710
|
53710
53701-10210
Apron Assy, W/front Side Member, Rh
[08.1981 - 08.1982] KP61 |
53701-10210 |
— | ||
|
53710
|
53710
53701-10211
Apron Assy, W/front Side Member, Rh
[08.1982 - 12.1983] KP61 |
53701-10211 |
— | ||
|
53713
|
53713
53713-10050
Apron, Fender Side, Rh
[08.1980 - 08.1982] KP61 |
53713-10050 |
— | ||
|
53713
|
53713
53713-10051
Apron, Fender Side, Rh
[08.1982 - 12.1983] KP61 |
53713-10051 |
— | ||
|
53714
|
53714
53714-10050
Apron, Fender Side, Lh
[08.1980 - 08.1982] KP61 |
53714-10050 |
— | ||
|
53714
|
53714
53714-10051 Apron, Fender Side, LhFENDER SIDE, LH [08.1982 - 12.1983] KP61 |
53714-10051 |
US $31.60 |
||
|
53720
|
53720
53702-10201
Apron Assy, W/front Side Member, Lh
[08.1981 - 08.1982] KP61 |
53702-10201 |
— | ||
|
53720
|
53720
53702-10202
Apron Assy, W/front Side Member, Lh
[08.1982 - 12.1983] KP61 |
53702-10202 |
— | ||
|
53737
|
53737
53737-10041 Plate, Front Apron To Cowl Side Member, RhFRONT APRON TO COWL SIDE MEMBER, RH [08.1981 - 08.1982] KP61 |
53737-10041 |
US $47.17 |
||
| replacement | |||||
|
53737
|
53737
53737-10042 Plate, Front Apron To Cowl Side Member, RhFRONT APRON TO COWL SIDE MEMBER, RH [08.1981 - 08.1982] KP61 |
53737-10042 |
US $46.88 |
||
|
53737
|
53737
53737-10042 Plate, Front Apron To Cowl Side Member, RhFRONT APRON TO COWL SIDE MEMBER, RH [08.1982 - 12.1983] KP61 |
53737-10042 |
US $46.88 |
||
|
53738
|
53738
53738-10040
Plate, Front Apron To Cowl Side Member, Lh
[08.1983 - 12.1983] KP61 |
53738-10040 |
— | ||
|
53738
|
53738
53738-10041
Plate, Front Apron To Cowl Side Member, Lh
[08.1981 - 08.1983] KP61 |
53738-10041 |
— | ||
| replacement | |||||
|
53738
|
53738
53738-10040
Plate, Front Apron To Cowl Side Member, Lh
[08.1981 - 08.1983] KP61 |
53738-10040 |
— | ||
|
55101
|
55101
55101-10261
Panel Sub-Assy, Dash
[08.1981 - 08.1982] KP61 |
55101-10261 |
— | ||
|
55101
|
55101
55101-10262
Panel Sub-Assy, Dash
[08.1982 - 12.1983] KP61 |
55101-10262 |
— | ||
|
55185
|
55185
55185-10011
Brace, Dash Panel To Cowl
[08.1980 - 08.1982] KP61 |
55185-10011 |
— | ||
|
55210
|
55210
55210-10070
Insulator Assy, Dash Panel
[08.1981 - 08.1982] KP61..USA W/COOLER |
55210-10070 |
— | ||
|
55210
|
55210
55210-10071
Insulator Assy, Dash Panel
[08.1982 - 12.1983] KP61..USA W/COOLER |
55210-10071 |
— | ||
|
55210
|
55210
55210-10080
Insulator Assy, Dash Panel
[08.1981 - 08.1982] KP61 W/O COOLER |
55210-10080 |
— | ||
|
55210
|
55210
55210-10081
Insulator Assy, Dash Panel
[08.1982 - 12.1983] KP61 W/O COOLER |
55210-10081 |
— | ||
|
57161
|
57161
57104-10050 Crossmember, Front[08.1980 - 08.1982] KP61 |
57104-10050 |
US $183.46 |
||
|
57161
|
57161
57104-10051 Crossmember, FrontFRONT [08.1982 - 12.1983] KP61 |
57104-10051 |
US $183.46 |
||
|
9011908119
|
9011908119
90119-08119 New Genuine Part |
90119-08119 |
US $2.77 |
||
|
9048023008
|
9048023008
90480-23008 Support, Radiator, Lower |
90480-23008 |
US $3.04 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001065
|
9095001065
90950-01065 Plug, Hole(For Front Fender Apron) |
90950-01065 |
US $4.48 |
||
|
9095001112
|
9095001112
90950-01112 Plug, Hole(For Heater Control Cable Hole) |
90950-01112 |
US $1.49 |
||
|
9095001127
|
9095001127
90950-01127
Grommet (For Cooler Unit)
|
90950-01127 |
— | ||
|
9095006007
|
9095006007
90950-06007 Protector, Front Side Panel, No.3 |
90950-06007 |
US $3.49 |
||
| replacement | |||||
|
9095006007
|
9095006007
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9166140612
|
9166140612
91661-40612 New Genuine Part |
91661-40612 |
US $2.08 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9166140618
|
9166140618
91661-40618 New Genuine Part |
91661-40618 |
US $1.14 |
||
