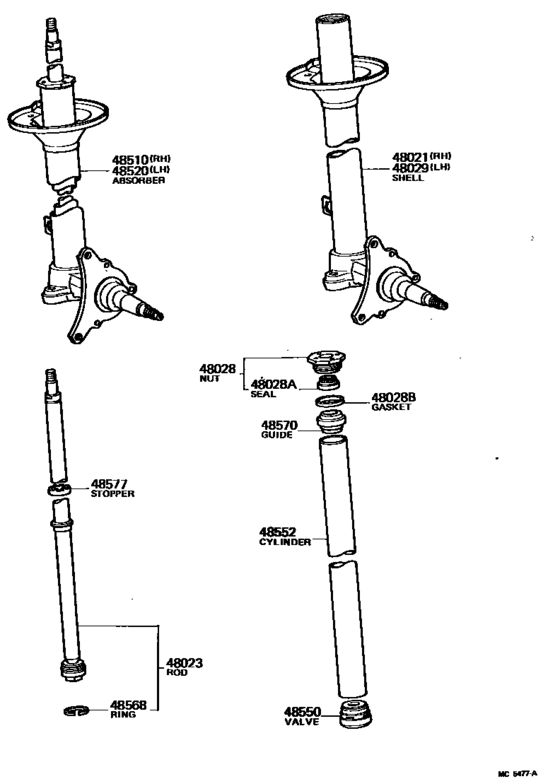

Front Spring & Shock Absorber ([08.1980 - ] (8008- )) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48021
|
48021
48021-10040
Shell Sub-Assy, W/steering Knuckle, Rh
[08.1980 - 12.1983] KP61 |
48021-10040 |
— | ||
|
48023
|
48023
48023-10080 Rod Sub-Assy, Shock Absorber Piston (For Front)SHOCK ABSORBER PISTON (FOR FRONT) [08.1980 - 08.1982] KP61 |
48023-10080 |
US $123.76 |
||
|
48023
|
48023
48023-10100 Rod Sub-Assy, Shock Absorber Piston (For Front)SHOCK ABSORBER PISTON (FOR FRONT) [08.1982 - 12.1983] KP61 |
48023-10100 |
US $123.76 |
||
|
48028
|
48028
48028-10020 Nut Sub-Assy, Shock Absorber Ring[08.1980 - 12.1983] KP61 |
48028-10020 |
US $32.61 |
||
| replacements | |||||
|
48028
|
48028
48035-17010 New Genuine Part[08.1980 - 12.1983] KP61 |
48035-17010 |
US $18.49 |
||
|
48028
|
48028
90316-20004 Seal, Oil(For Shock Absorber Ring Nut)[08.1980 - 12.1983] KP61 |
90316-20004 |
US $7.28 |
||
|
48028A
|
48028A
90316-20006 Seal, Oil(For Shock Absorber Ring Nut)[08.1980 - 12.1983] KP61 |
90316-20006 |
from US $3.20 |
||
|
48028B
|
48028B
90430-36002 Gasket(For Shock Absorber Ring Nut)[08.1980 - 12.1983] KP61 |
90430-36002 |
US $3.35 |
||
| replacement | |||||
|
48028B
|
48028B
90430-37003 Gasket(For Shock Absorber Ring Nut)[08.1980 - 12.1983] KP61 |
90430-37003 |
US $3.35 |
||
|
48029
|
48029
48029-10030
Shell Sub-Assy, W/steering Knuckle, Lh
[08.1980 - 12.1983] KP61 |
48029-10030 |
— | ||
|
48510
|
48510
48510-10080 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [08.1980 - 08.1982] KP61 |
48510-10080 |
US $423.70 |
||
| replacement | |||||
|
48510
|
48510
48510-10101 Absorber Assy, Shock, Front Rh[08.1980 - 08.1982] KP61 |
48510-10101 |
US $422.24 |
||
|
48510
|
48510
48510-10100 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [08.1982 - 12.1983] KP61 |
48510-10100 |
US $422.24 |
||
| replacement | |||||
|
48510
|
48510
48510-10101 Absorber Assy, Shock, Front Rh[08.1982 - 12.1983] KP61 |
48510-10101 |
US $422.24 |
||
|
48520
|
48520
48520-10060 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [08.1980 - 08.1982] KP61 |
48520-10060 |
US $423.70 |
||
| replacement | |||||
|
48520
|
48520
48520-10081 Absorber Assy, Shock, Front Lh[08.1980 - 08.1982] KP61 |
48520-10081 |
US $422.24 |
||
|
48520
|
48520
48520-10080 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [08.1982 - 12.1983] KP61 |
48520-10080 |
US $422.24 |
||
| replacement | |||||
|
48520
|
48520
48520-10081 Absorber Assy, Shock, Front Lh[08.1982 - 12.1983] KP61 |
48520-10081 |
US $422.24 |
||
|
48550
|
48550
48550-10050 Valve Assy, Shock Absorber BaseSHOCK ABSORBER BASE [08.1980 - 08.1982] KP61 |
48550-10050 |
US $44.55 |
||
|
48550
|
48550
48550-16010
Valve Assy, Shock Absorber Base
[08.1982 - 12.1983] KP61 |
48550-16010 |
— | ||
|
48552
|
48552
48552-10030 Cylinder, Shock Absorber(For Front)SHOCK ABSORBER(FOR FRONT) [08.1980 - 12.1983] KP61 |
48552-10030 |
US $23.88 |
||
|
48568
|
48568
48568-12010 Ring, Shock Absorber PistonSHOCK ABSORBER PISTON [08.1980 - 08.1982] KP61 |
48568-12010 |
US $3.35 |
||
|
48568
|
48568
48568-12020 Ring, Shock Absorber Piston[08.1982 - 06.1983] KP61 |
48568-12020 |
US $10.19 |
||
|
48568
|
48568
48568-12021 Ring, Shock Absorber Piston[06.1983 - 12.1983] KP61 |
48568-12021 |
US $9.03 |
||
|
48570
|
48570
48022-10020 Guide Assy, Shock Absorber Rod[08.1980 - 12.1983] KP61 |
48022-10020 |
US $26.50 |
||
|
48577
|
48577
48577-10010 Stopper, Shock Absorber Rebound[08.1980 - 12.1983] KP61 |
48577-10010 |
US $4.08 |
||
